ASRock P67 Pro Motherboard

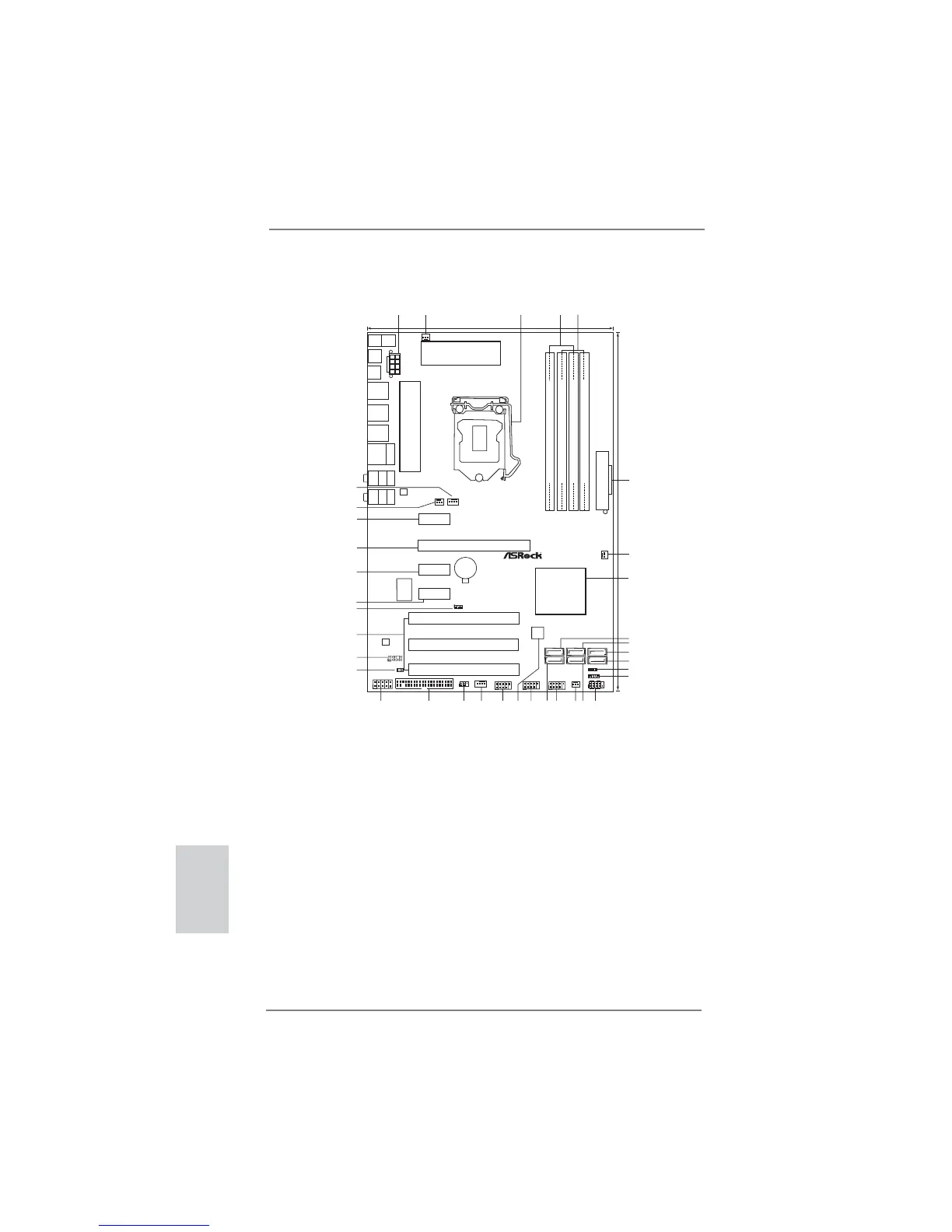

Motherboard Layout
English
1 ATX 12V Power Connector (ATX12V1) 19 SATA2 Connector (SATA2_5, Blue)
2 Power Fan Connector (PWR_FAN1) 20 USB 2.0 Header (USB10_11, Blue)
3 1155-Pin CPU Socket 21 64Mb SPI Flash
4 2 x 240-pin DDR3 DIMM Slots 22 USB 2.0 Header (USB8_9, Blue)
(Dual Channel: DDR3_A1, DDR3_B1, Blue) 23 Chassis Fan Connector (CHA_FAN1)
5 2 x 240-pin DDR3 DIMM Slots 24 Infrared Module Header (IR1)
(Dual Channel: DDR3_A2, DDR3_B2, White) 25 Floppy Connector (FLOPPY1)
6 ATX Power Connector (ATXPWR1) 26 COM Port Header (COM1)
7 Chassis Fan Connector (CHA_FAN3) 27 HDMI_SPDIF Header
8 Intel P67 Chipset (HDMI_SPDIF1, White)
9 SATA2 Connector (SATA2_4, Blue) 28 Front Panel Audio Header
10 SATA2 Connector (SATA2_2, Blue) (HD_AUDIO1, White)
11 SATA3 Connector (SATA3_0, White) 29 PCI Slots (PCI1-3)
12 SATA3 Connector (SATA3_1, White) 30 Clear CMOS Jumper (CLRCMOS1)
13 Power LED Header (PLED1) 31 PCI Express 2.0 x1 Slot (PCIE4, White)
14 Chassis Speaker Header (SPEAKER 1, White) 32 PCI Express 2.0 x1 Slot (PCIE3, White)
15 System Panel Header (PANEL1, White) 33 PCI Express 2.0 x16 Slot (PCIE2, Blue)
16 SATA2 Connector (SATA2_3, Blue) 34 PCI Express 2.0 x1 Slot (PCIE1, White)
17 Chassis Fan Connector (CHA_FAN2) 35 CPU Fan Connector (CPU_FAN2)
18 USB 2.0 Header (USB12_13, Blue) 36 CPU Fan Connector (CPU_FAN1)
Intel
P67
20.3cm (8.0 in)
30.5cm (12.0 in)
DDR3_A1 (64 bit, 240-pin module)
DDR3_A2 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
DDR3_B2 (64 bit, 240-pin module)
ATXPWR1
CHA_FAN1
CLRCMOS1
1
ATX12V1
CHA_FAN2
CPU_FAN2
CPU_FAN1
P67 Pro
64Mb
BIOS
Super
I/O
PCIE1
PCIE2
PCI1
CMOS
Battery
HDLED RESET
PLED PWRBTN
PANEL1
1
SPEAKER1
1
PLED1
1
USB12_13
1
USB10_11
1
USB8_9
1
1
HD_AUDIO1
FLOPPY1
COM1
1
IR1
1
1
HDMI_SPDIF1
LAN
PHY
AUDIO
CODEC
PS2
Mouse
Coaxial
SPDIF
PS2
Keyboard
Optical
SPDIF
Top:
RJ-45
USB 2.0
T: U SB 0
B: USB1
Top:
SIDE SPK
Center:
REAR SPK
Top:
LINE IN
Center:
FRONT
Bottom:
CTR BASS
Bottom:
MIC IN
PWR_FAN1
Dual Channel
PCI Express 2.0
ErP/EuP Ready
RoHS
Designed in Taipei
SATA3 6Gb/s
1
2
3
4
5
6
7
11
12
13
14
16
8
9
10
15
17
18
24
19
20
21
22
232526
27
28
29
30
31
32
33
34
35
36
PCIE3
PCIE4
PCI2
PCI3
CHA_FAN3
DDR3 2133
USB 2.0
T: U SB 2
B: USB3
USB 2.0
T: U SB 4
B: USB5
USB 2.0
T: U SB 6
B: USB7
SATA2_4 SATA2_2 SATA3_0
SATA2_5 SATA2_3 SATA3_1
