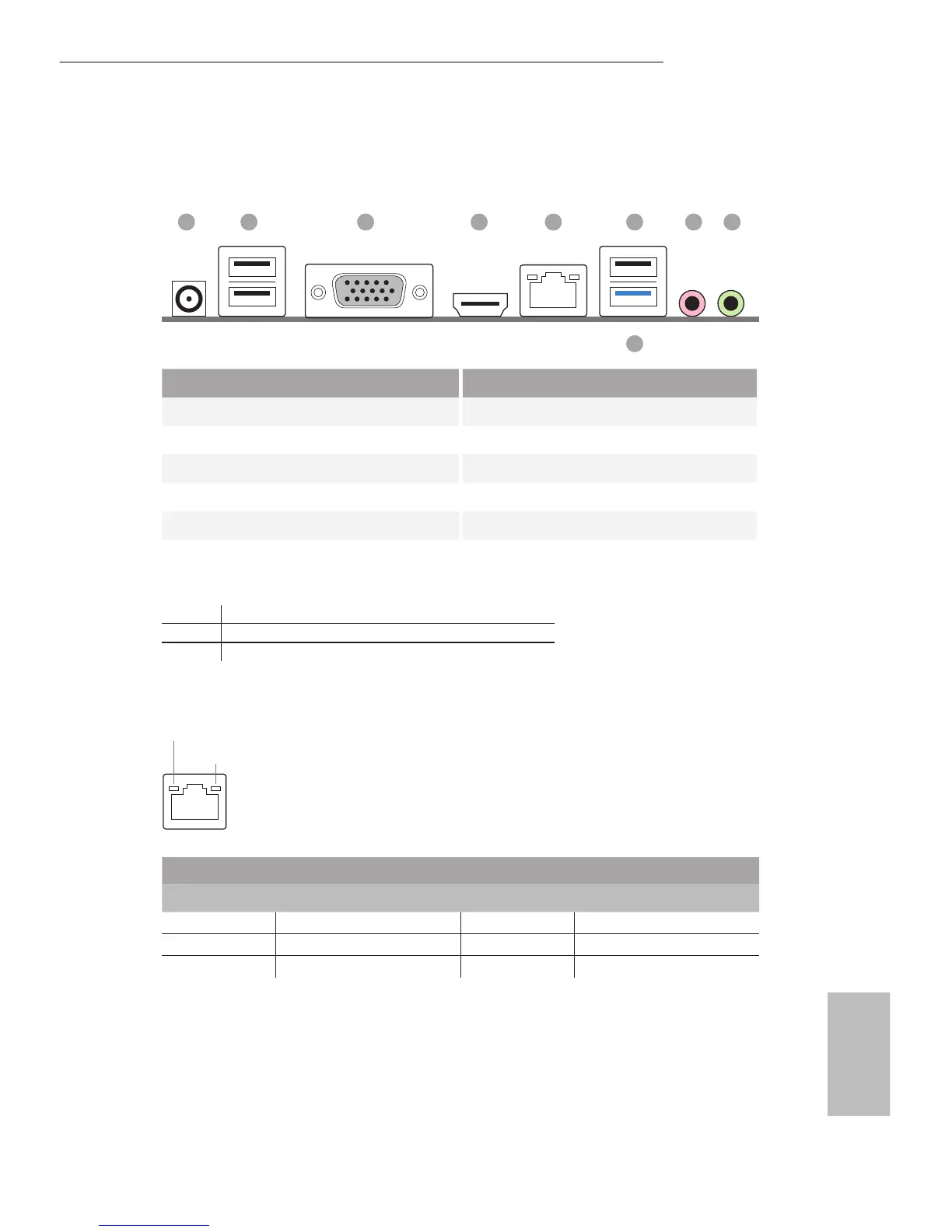

I/O Panel
No. Description No. Description
1 DC Jack* 6 USB 2.0 Ports (USB_0)
2 USB 2.0 Ports (USB_23) 7 Microphone (Pink)
3 D-Sub Port 8 Front Speaker (Lime)
4 HDMI Port (HDMI1) 9 USB 3.0 Ports (USB_1)
5 LAN RJ-45 Port**
* Please use a 19V power adapter for the DC jack. is jack accepts dual barrel plugs with an inner diameter of
5.1 mm and an outer diameter of 7.4 mm, where the inner contact is +19 (±10%) VDC and the shell is GND.
DELTA DELTA-ADP-150TB-150W/19V
HP HP-TBC-BA52-150W/19V
FSP FSP-FSP150-ABAN1-150W/19V
** ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity O 100Mbps connection
On Link Orange 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
876
9
2 5431
