ASROCK QC5000-ITXQC5000-ITX/PH User Manual

QC5000-ITX/WiFi
QC5000-ITX
21
English

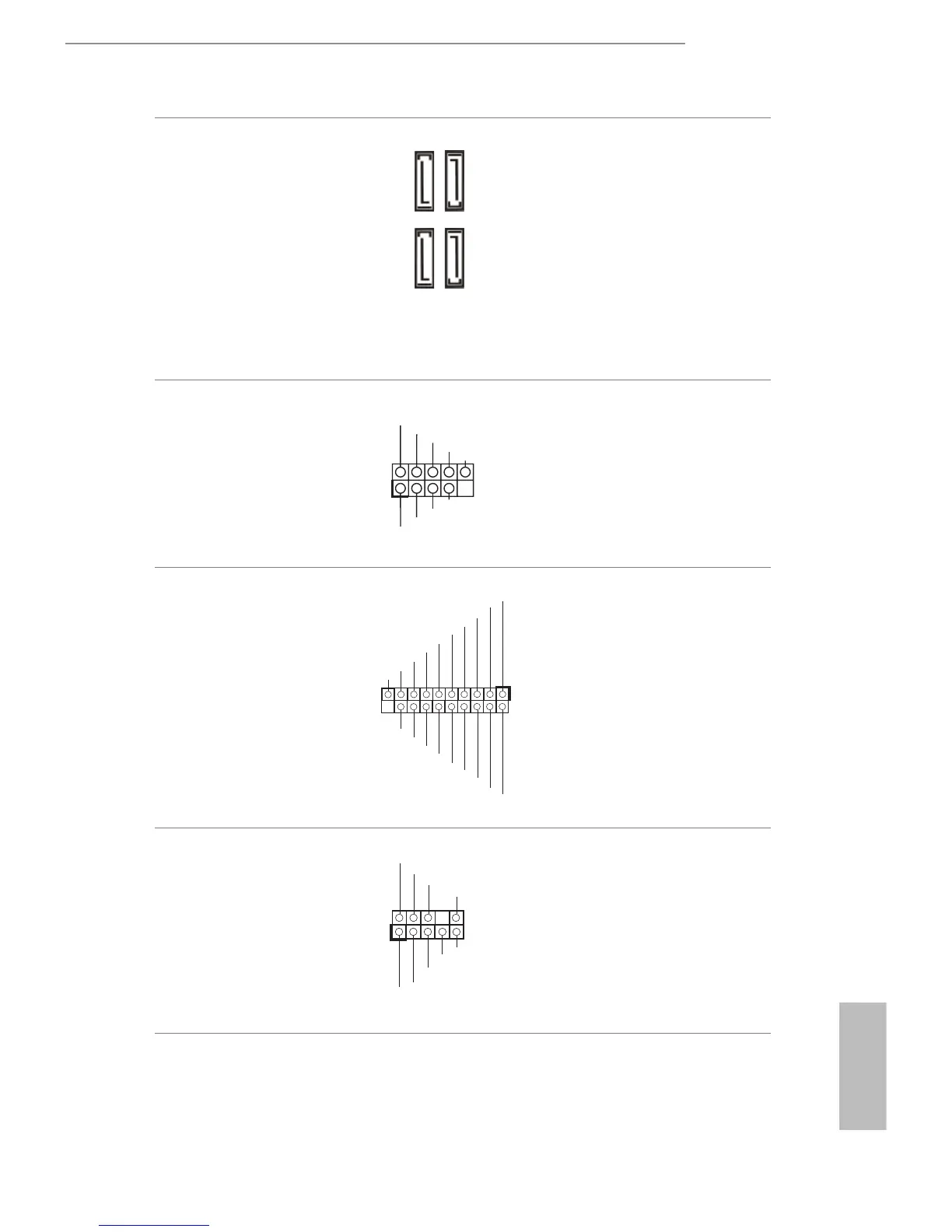

Serial ATA3 Connectors
(SATA3_1:
see p.10, No. 8)
(SATA3_2:
see p.10, No. 9)
(SATA3_A0:
see p.10, No. 11)
(SATA3_A1:
see p.10, No. 10)
ese four SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
USB 2.0 Headers
(9-pin USB2_3)
(see p.10, No. 16)
(9-pin USB4_5)
(see p.10, No. 15)
Besides two USB 2.0 ports
on the I/O panel, there
are two headers on this
motherboard. Each USB
2.0 header can support
two ports.
USB 3.0 Header
(19-pin USB3_2_3)
(see p.10, No. 1)
Besides four USB 3.0
ports on the I/O panel,
there is one header on this
motherboard. is USB
3.0 header can support
two ports.
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.10, No. 18)
is header is for
connecting audio devices
to the front audio panel.
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
SATA3_A0 SATA3_1
SATA3_A1 SATA3_2
1
ID
IntA_P_D +
IntA_P_D -
GND
IntA_P_SSTX+
IntA_P_SSTX-
GND
IntA_P_SSRX+
Vbus
IntA_P_D+
IntA_P_D -
GND
IntA_P_SSTX+
IntA_P_SSTX-
GND
IntA_P_SSRX+
IntA_P_SSRX-
Vbus
IntA_P_SSRX-
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET
