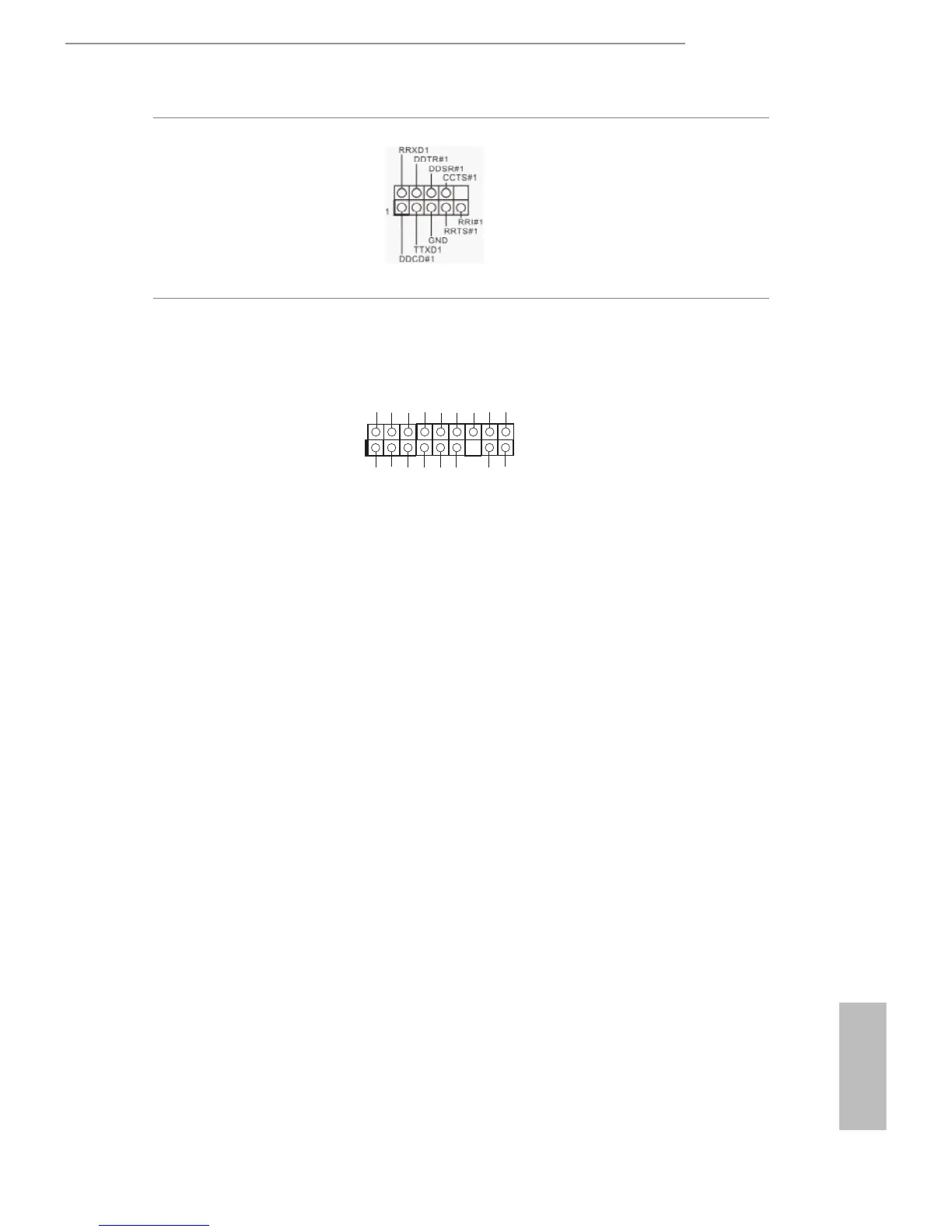

Serial Port Header
(9-pin COM1)
(see p.10, No. 14)
is COM1 header
supports a serial port
module.
TPM Header
(17-pin TPMS1)
(see p.10, No. 17)
is connector supports
Trusted Platform Module
(TPM) system, which can
securely store keys, digital
certicates, passwords,
and data. A TPM system
also helps enhance
network security, protects
digital identities, and
ensures platform integrity.
1
GND SMB_DATA_MAIN
LAD2
LAD1
GND
S_PWRDWN#
SERIRQ#
GND
PCICLK
PCIRST#
LAD3
+3V
LAD0
+3VSB
GND
FRAME
SMB_CLK_MAIN
