24
English

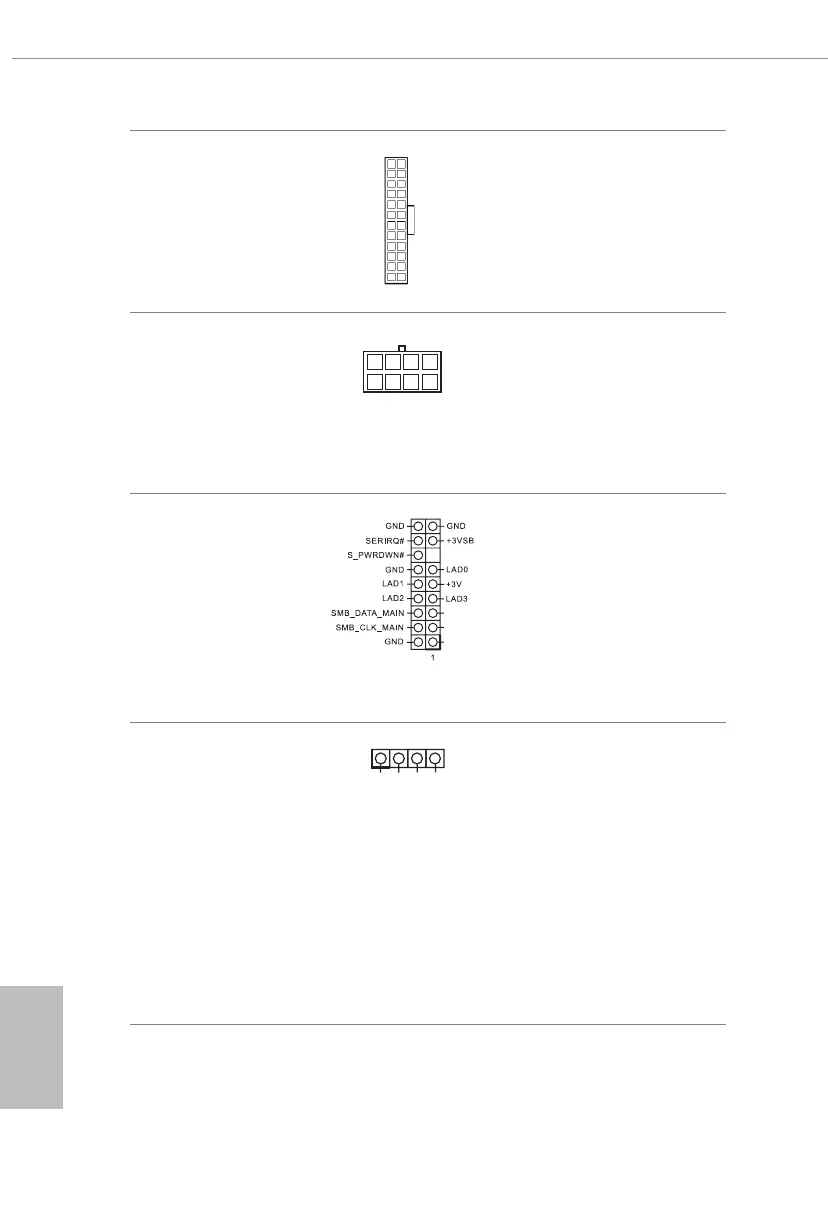

ATX Power Connector
(24-pin ATXPWR1)
(see p.1, No. 11)
is motherboard
provides a 24-pin ATX
power connector. To use a
20-pin ATX power supply,
please plug it along Pin 1
and Pin 13.
ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.1, No. 6)
is motherboard
provides a 8-pin ATX 12V
power connector. To use a
4-pin ATX power supply,
please plug it along Pin 1
and Pin 5.
TPM Header
(17-pin TPMS1)
(see p.1, No. 16)
is connector supports Trusted
Platform Module (TPM) system,
which can securely store keys,
digital certicates, passwords,
and data. A TPM system also
helps enhance network security,
protects digital identities, and
ensures platform integrity.
RGB LED Header
(4-pin RGB_LED1)
(see p.1, No. 4)
is RGB header is used to con-
nect RGB LED extension cable
which allows users to choose
from various LED lighting ef-
fects.
Caution: Never install the RGB
LED cable in the wrong orienta-
tion; otherwise, the cable may
be damaged.
*Please refer to page 33 for fur-
ther instructions on this header.
12
1
24
13
12V G R B
1
5
1
8
4
PCIRST#
FRAME
PCICLK
