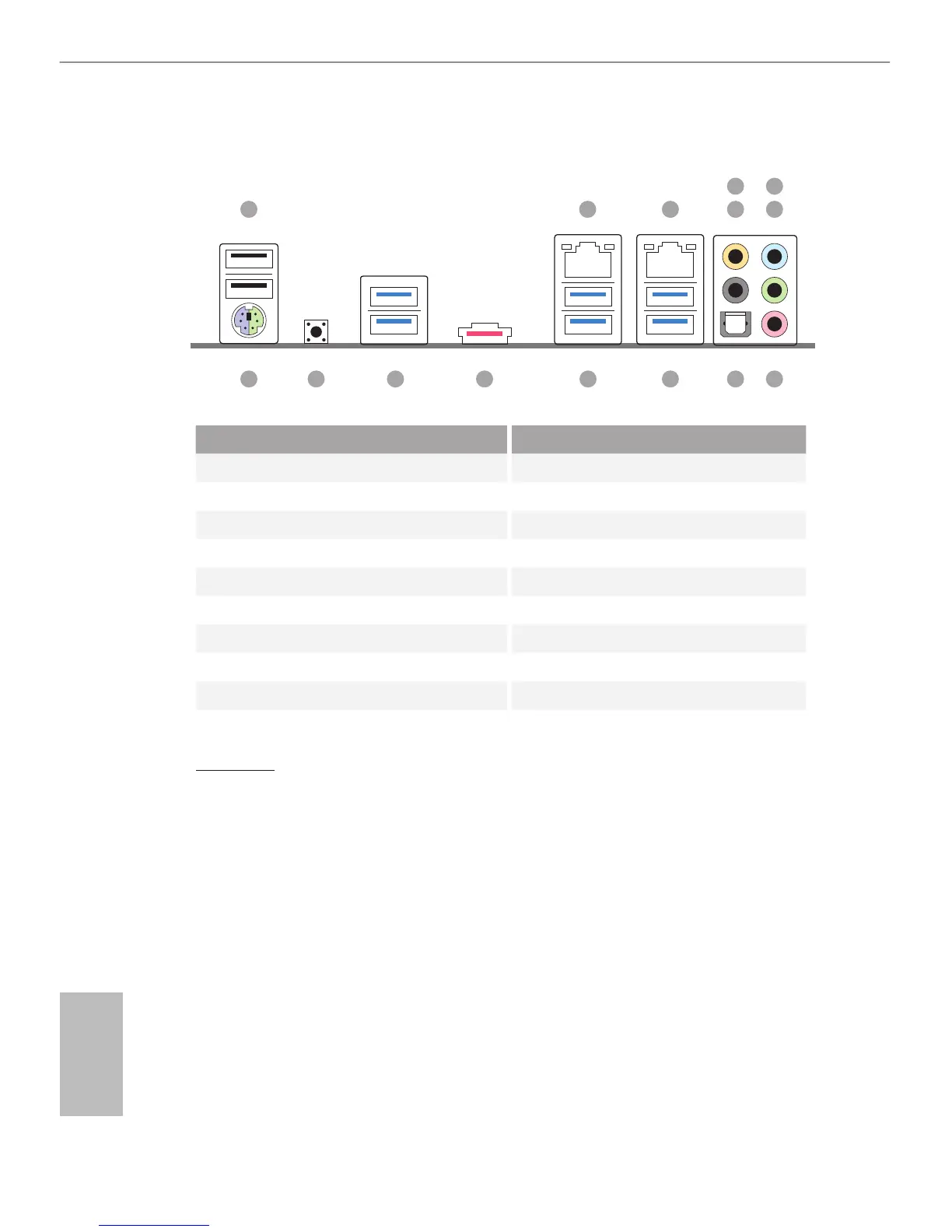

1.4 I/O Panel
No. Description No. Description
1 USB 2.0 Ports (USB12) 9 Optical SPDIF Out Port
2 LAN RJ-45 Port 10 USB 3.0 Ports (USB3_34)
(Qualcomm® Atheros® AR8171)* (ASMedia ASM1074 hub)
3 LAN RJ-45 Port 11 USB 3.0 Ports (USB3_12)
(Intel® I218V)* (ASMedia ASM1074 hub)
4 Central / Bass (Orange) 12 eSATA Connector***
5 Rear Speaker (Black) 13 USB 3.0 Ports (USB31_12)
6 Line In (Light Blue) (ASMedia ASM1042)
7 Front Speaker (Lime)** 14 Clear CMOS Switch
8 Microphone (Pink) 15 PS/2 Mouse/Keyboard Port
CAUTION:
For operating system installation, be sure to plug your USB ash drive into the USB 2.0
Ports (USB12).
1
15 891011121314
32 5
4
7
6
