ASROCK Z490M-ITX/ac User Manual

23
English
Z490M-ITX/ac

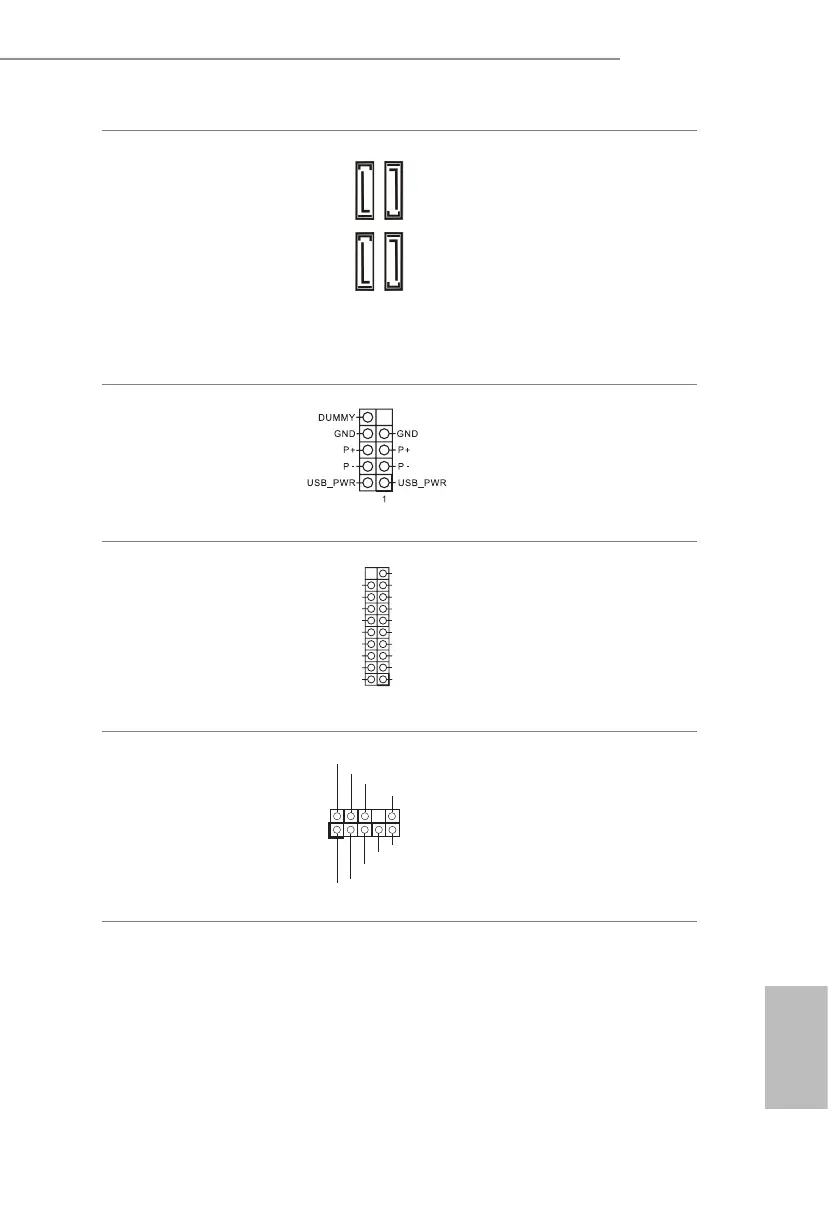

Serial ATA3 Connectors
(SATA3_0:
see p.7, No. 10)
(SATA3_1:
see p.7, No. 9)
(SATA3_2:
see p.7, No. 12)
(SATA3_3:
see p.7, No. 11)
ese four SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
USB 2.0 Header
(9-pin USB_34)
(see p.7, No. 14)
ere is one USB2.0
header on this
motherboard. is USB
2.0 header can support
two ports.
USB 3.2 Gen1 Header
(19-pin USB3_34)
(see p.7, No. 8)
ere is one header on
this motherboard. is
USB 3.2 Gen1 header can
support two ports.
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.7, No. 17)
is header is for
connecting audio devices
to the front audio panel.
SATA3_3 SATA3_2
SATA3_1 SATA3_0
1
IntA_ PB_D +
Dummy
IntA_ PB_D -
GND
IntA_ PB_S ST X +
GND
IntA_ PB_S ST X -
IntA_ PB_S SR X +
IntA_ PB_S SR X -
VbusVbus
Vbus
IntA_ PA_S SR X -
IntA_ PA_S SR X +
GND
IntA_ PA_S ST X -
IntA_ PA_S ST X +
GND
IntA_ PA_D -
IntA_ PA_D +
J _SENSE
O UT2_L
1
M IC_RET
P RESENCE#
GN D
O UT2_R
M IC2_R
M IC2_L
OUT_RET

ASROCK Z490M-ITX/ac Specifications

General

HDMI version	1.4
PS/2 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
RGB LED pin header	Yes
LAN controller	Dragon RTL8125BG, Intel I219-V
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	4.2
Ethernet interface type	2.5 Gigabit Ethernet, Gigabit Ethernet
Audio chip	Realtek ALC1200
Component for	PC
Motherboard chipset	Intel Z490
PC health monitoring	FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 10
OpenGL version	4.5
DirectX version	12.0
Maximum resolution	4096 x 2304 pixels
Parallel processing technology support	Not supported
Memory channels	Dual-channel
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 2933, 3200, 3600, 3733, 3800, 3866, 4000, 4133, 4266, 4333, 4400 MHz
Cables included	SATA
BIOS type	UEFI AMI
BIOS memory size	128 Mbit
System Management BIOS (SMBIOS) version	2.7
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	SATA III
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium

Weight and Dimensions

Width	170 mm
