Z87E-ITX
26 27
English

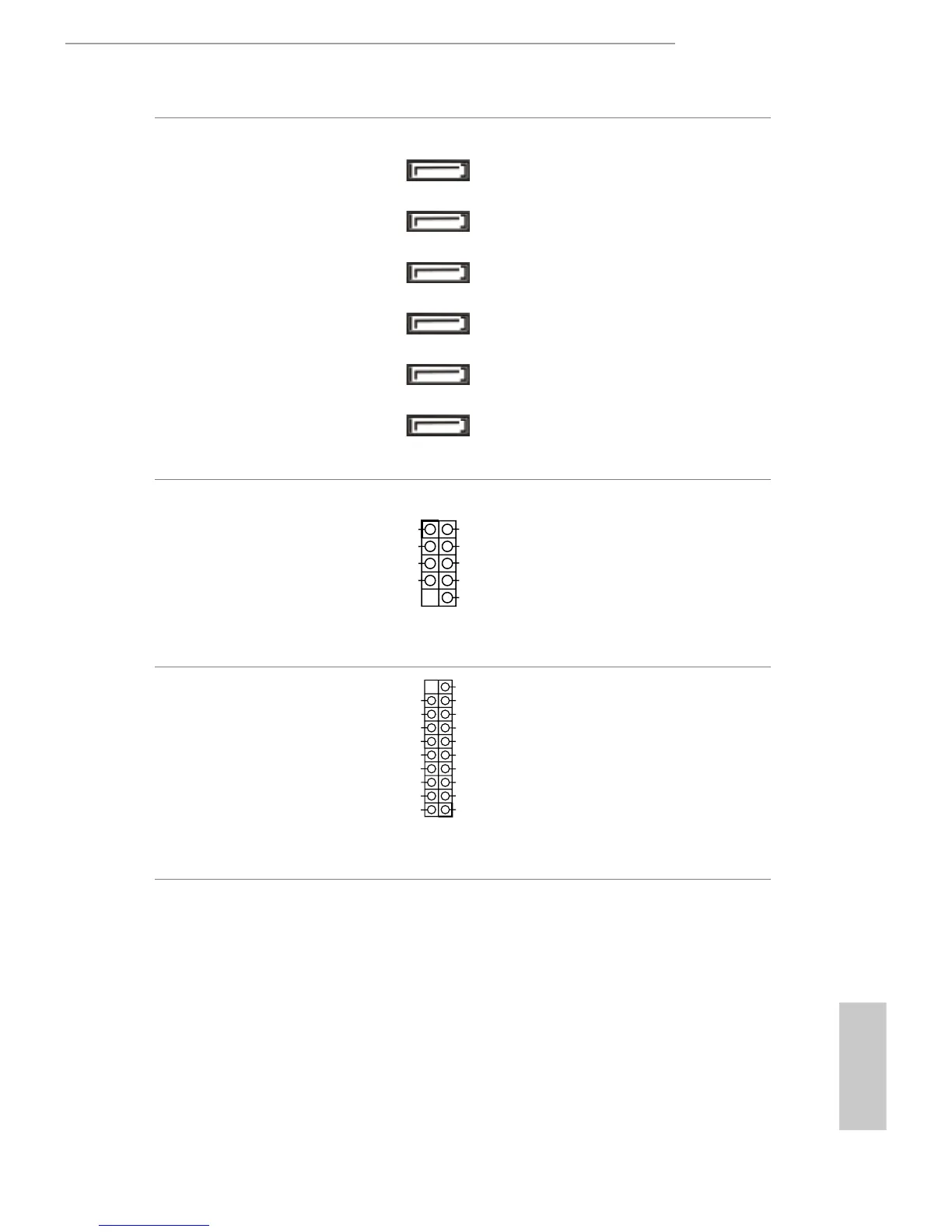

Serial ATA3 Connectors
(SATA3_0:
see p.11, No. 16)
(SATA3_1:
see p.11, No. 15)
(SATA3_2:
see p.11, No. 17)
(SATA3_3:
see p.11, No. 9)
(SATA3_4:
see p.11, No. 8)
(SATA3_5:
see p.11, No. 6)
ese six SATA3
connectors support SATA
data cables for internal
storage devices with up
to 6.0 Gb/s data transfer
rate. SATA3_5 connector
is shared with the eSATA
port; SATA3_4 connector
is shared with the
mSATA/mini-PCIe slot.
USB 2.0 Headers
(9-pin USB_2_3)
(see p.11, No. 21)
(9-pin USB_4_5)
(see p.11, No. 20)
Besides two USB 2.0 ports
on the I/O panel, there
are two headers on this
motherboard. Each USB
2.0 header can support
two ports.
USB 3.0 Headers
(19-pin USB3_5_6)
(see p.11, No. 7)
Besides four USB 3.0 ports
on the I/O panel, there
are one header on this
motherboard. Each USB
3.0 header can support
two ports.
DUMMY
GNDGND
P+
P-
P+
P-
USB_PWR
USB_PWR
1
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
SATA3_0
SATA3_3
SATA3_1
SATA3_4
SATA3_2
SATA3_5
