Assa Abloy Corbin Russwin DC8210 Series User Manual

80-9380-8002-152 Rev. 07/09
ALL ANGLES SHOWN ARE APPROXIMATE
Connect Arm To Closer
Using 1/8" hex wrench provided, close (turn
clockwise) CLOSING SPEED VALVE (see page
for location on closer). DO NOT OVER TIGHTEN.
Mount QUIK-INSTALL Bracket
®
Open door to approximately 60°.
Using wrench on underside of spindle, rotate spindle
approximately 135° toward hinge edge of door.
Install arm on spindle at an approximate 90° angle to door.
Reopen CLOSING SPEED VALVE.
Install and tighten 5/16 Hex Head Arm Washer and Screw
assembly.
D
O
O
R
SPINDLE
ARM
CENTERLINE
D
O
O
R
90°
SPINDLE
ROTATED 135°
Rotate 135°
SPINDLE AT REST
Mount Arm to Door Frame
#12-24x5/8 FHMS (4)
60°
DOOR
135°
WRENCH
90°
ARM
3

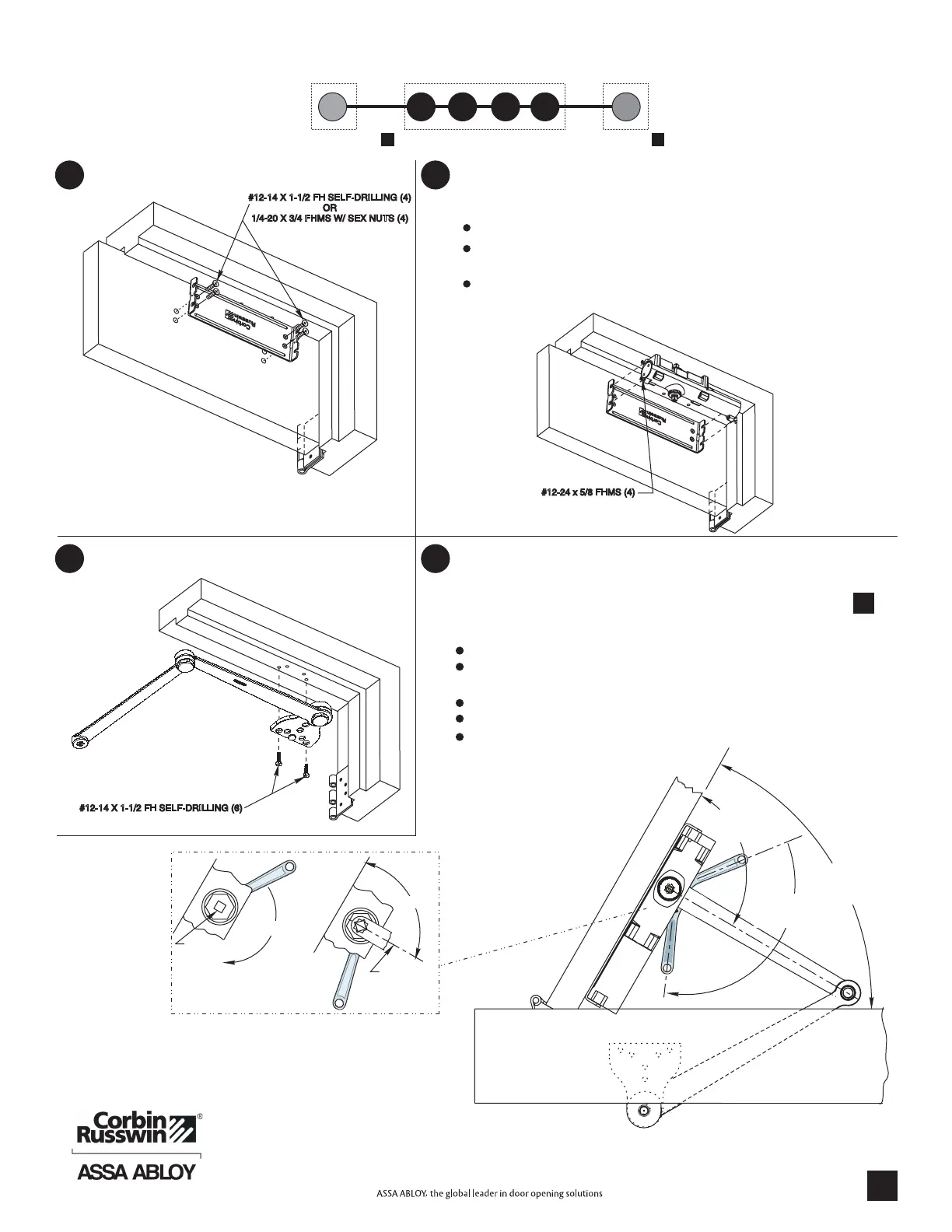

DC8210 x A3 HD Parallel Arm Installation Instructions
B C
D E
Start the four mounting screws into the four closer mounting holes.
Place the closer onto the bracket with the four
mounting screws inserted into the four bracket slots.
QUIK-INSTALL
QUIK-INSTALL
Tighten the four mounting screws to fasten the closer body to the
bracket.QUIK-INSTALL
Mount Closer Body to
BracketQUIK-INSTALL
4
#12-14X1-1/2 FH SELF-DRILLING (6)
#12-14X1-1/2 FH SELF-DRILLING (4)
OR
1/4-20 X 3/4 FHMS W/ SEX NUTS (4)
D
C
E
B
