Associated Research SC6540-HH Quick Start Guide

6

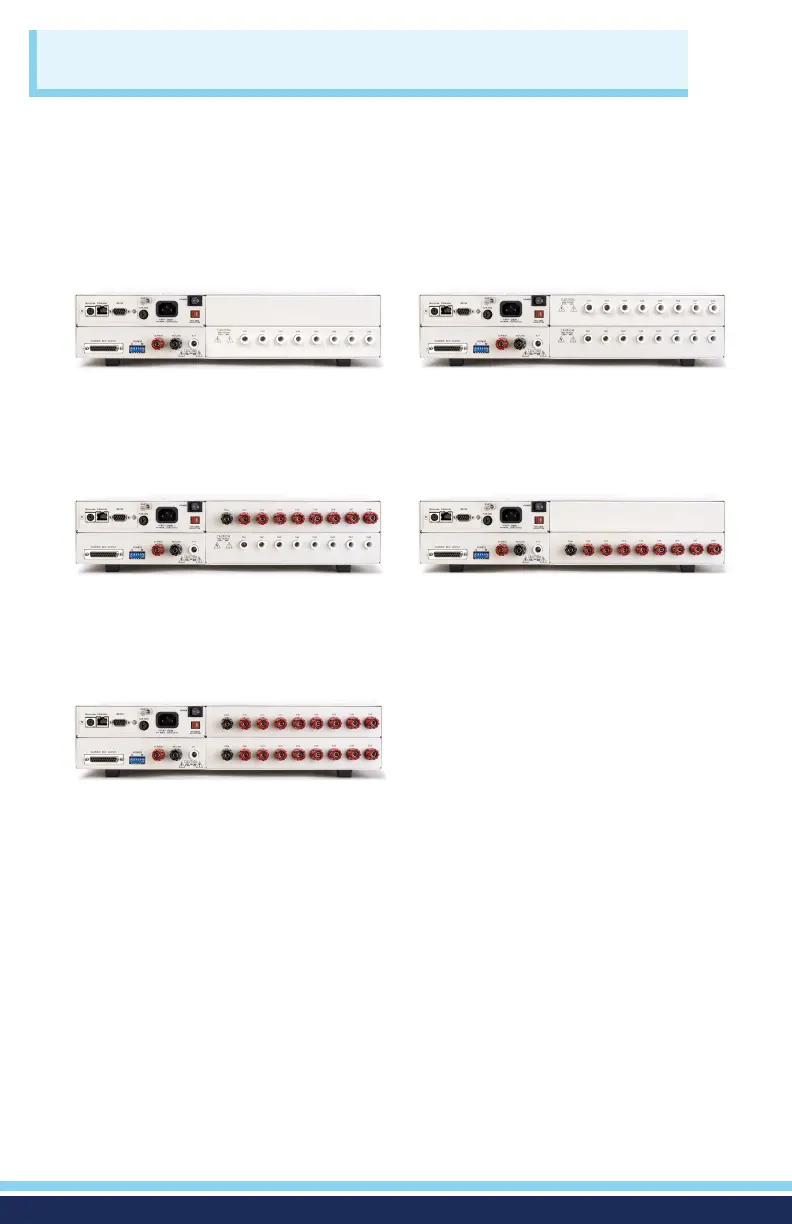

BACK PANEL CONFIGURATIONS
The modular design allows for a variety of configurations. In addition to Main
or Secondary configurations, the scanners can also be set-up with the following
configurations: 8 or 16 High Voltage testing channels, 8 High Voltage and
Ground Bond testing channels, and 8 or 16 Ground Bond testing channels.
Model SC6540 HNM
8 Channel High Voltage Scanner
Model SC6540 HGM
8 Channel High Current Scanner
8 Channel High Voltage Scanner
Model SC6540 GGM
16 Channel High Current Scanner
*Also available in secondary
configurations
The different configurations (shown right)
are indicated by the following alpha
designators.
M = Main Scanner
H = 8 High Voltage Channels
HH = 16 High Voltage Channels
G = 8 Ground Bond Channels
GG = 16 Ground Bond Channels
N = Empty Module
S = Secondary
Model SC6540 HHM
16 Channel High Voltage Scanner
Model SC6540 GNM
8 Channel High Current Scanner
