Associated Research SC6540 Quick Start Guide

10
CONNECTIONS

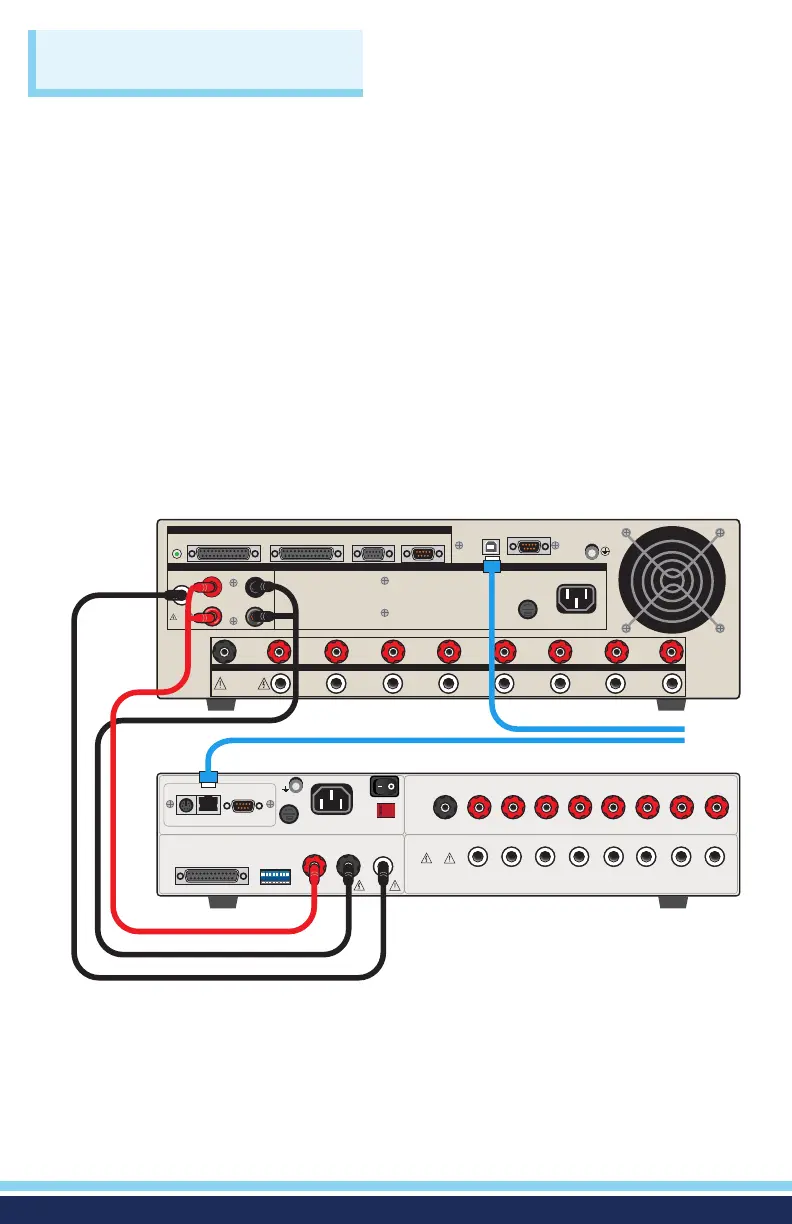

OPERATING THE SC6540 WITH OMNIA II
®
8204
GROUND BOND CONNECTIONS
The rear panel of the SC6540 can include up to 16 output terminals for Ground Bond
testing if this conguration is selected at the time of purchase. *We recommend using
standard 12 gauge wire for operation at 30 amps, and 10 gauge wire for 40 amps.
The wires should be attached using the hook-style crimp lugs provided, to minimize
connection resistance. The Kelvin connection of an Associated Research Ground
Bond tester will end at the Ground Bond input terminals of the SC6540 Scanner. For
this reason, the wire lengths going from the SC6540 High Current output and the
High Current Return should be kept as short as possible to limit the effect of test lead
resistance.
OMNIA II
SENSE+
H.V.
SENSE
-
CURRENT
RETURN
SIGNAL INPUT
SIGNAL OUTPUTSCANNER 1 SCANNER 2
RS232
T10A 250V
GND
CAT. II
115V~ /230V~
10A MAX., 50Hz/60HZ
CAUTION
HIGH VOLTAGE
5KV MAX.
CAUTION
HIGH VOLTAGE
5KV MAX.
GROUND
TEST
OUTPUT
CH
H.V.
TEST
OUTPUT
OUTPUT
REMOTE INTERFACE
INPUT
G-COM. CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
RETURN
COM.
POWER
SCANNER BUS OUTPUT ADDRESS
A B
RS232Barcode Ethernet
GND
T2A 250V
VOLTAGE
SELECTOR
115V ~/ 250V ~
2AMAX., 50Hz / 60Hz
CH1
H.V.
CH2 CH3 CH4 CH5 CH6 CH7 CH8
CAUTION
HIGH VOLTAGE
5.0 KY MAX.
CAUTION
HIGH VOLTAGE
5.0 KY MAX.
CURRENT
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
115
1 2 3 4 5 6 7 8
ON
SC6540 Main
To PC
