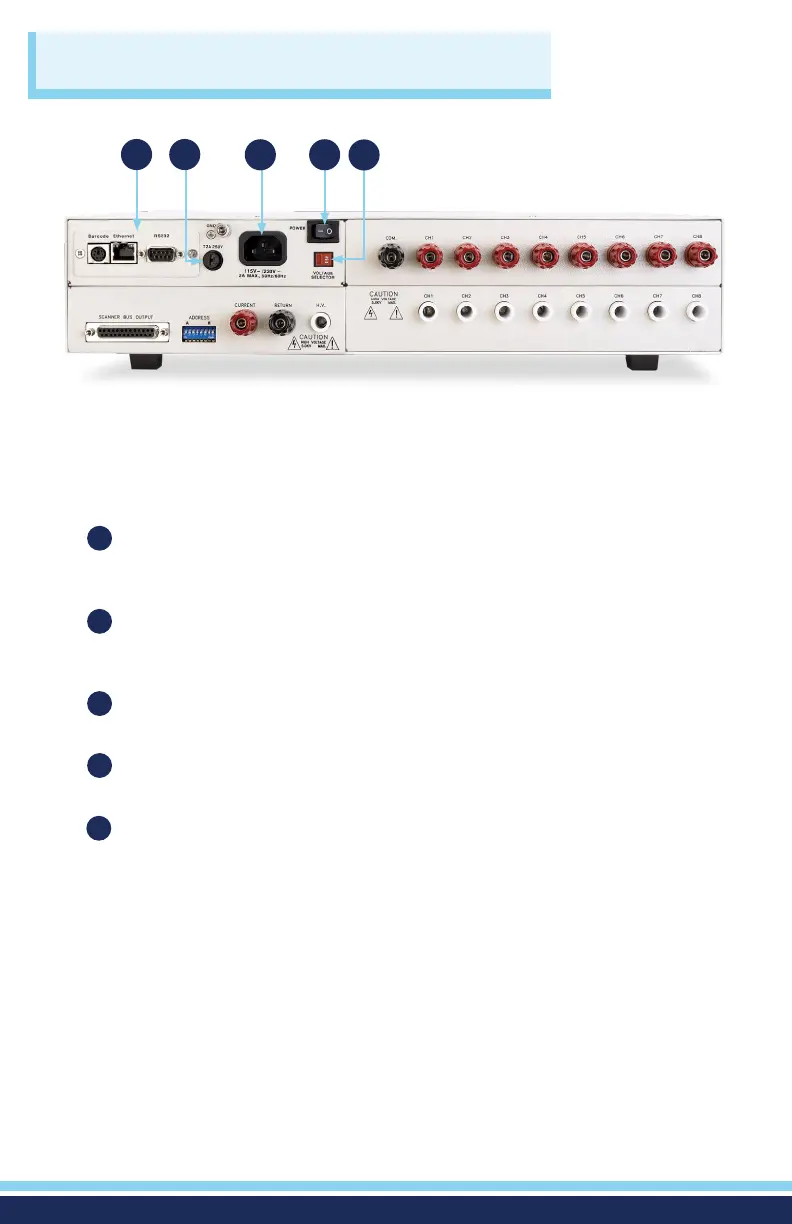

BACK PANEL CONTROLS
BUS INTERFACE: Standard connector for interconnection to the USB/RS-232
Bus interface. Optional IEEE-488 interface or Ethernet Interface may be
substituted for the USB/RS-232.
FUSE RECEPTACLE: To change the fuse, unplug the power (mains) cord and
turn the fuse receptacle counter-clockwise. The fuse compartment will be
exposed. Replace the fuse with one of the proper rating.
INPUT POWER RECEPTACLE: Standard IEC 320 connector for a standard
NEMA style line power (mains) cord.
POWER SWITCH: Rocker style power switch with international ON ( | ) and
OFF (0) markings.
INPUT VOLTAGE SWITCH: Line voltage selection is set by the position of the
switch. In the “left” position it is set for 110–120 volt operation, in the “right”
position it is set for 220–240 volt operation.
1 2
3 4 5
1
2
3
4
5
(Main Scanner, HGM, Back Panel)
