Connection:
4.5.1 Air purge unit

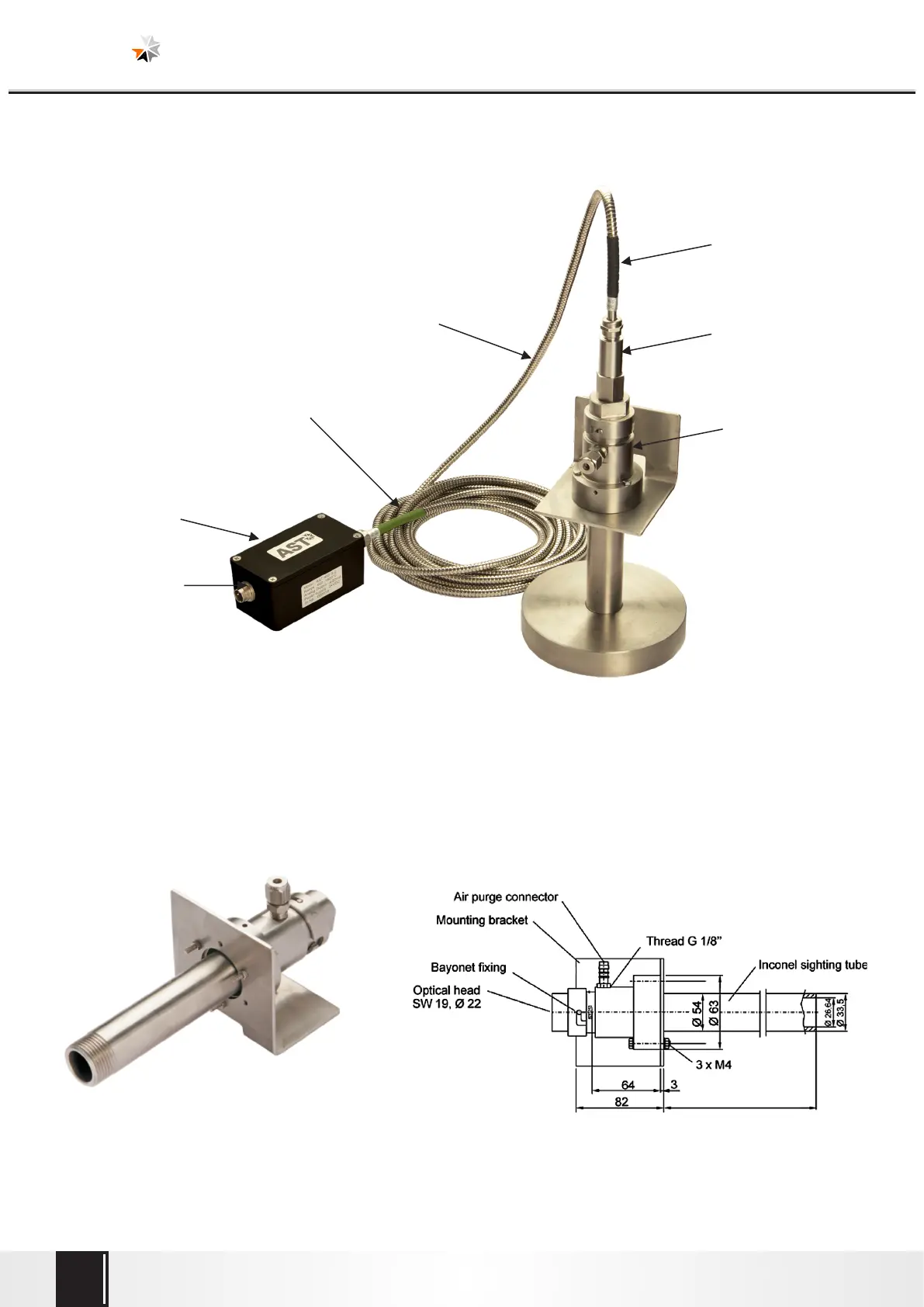

To protect the lens from contamination of dust, moisture & other suspended particles air purge unit is used. Air
purge with mounting support supply dry & oil-free pressurized air which generates an air stream Shaped like a cone.
Signal
processor box
Input power
supply +24V
Green fiber mark
FOC
Black fiber mark
Optical head
Furnace top
with clamp
(Reference No. : 8100-01)
Air purge with stainless steel Inconel tubes:
200
