Chapter 4 INTERFACE SETTINGS
263

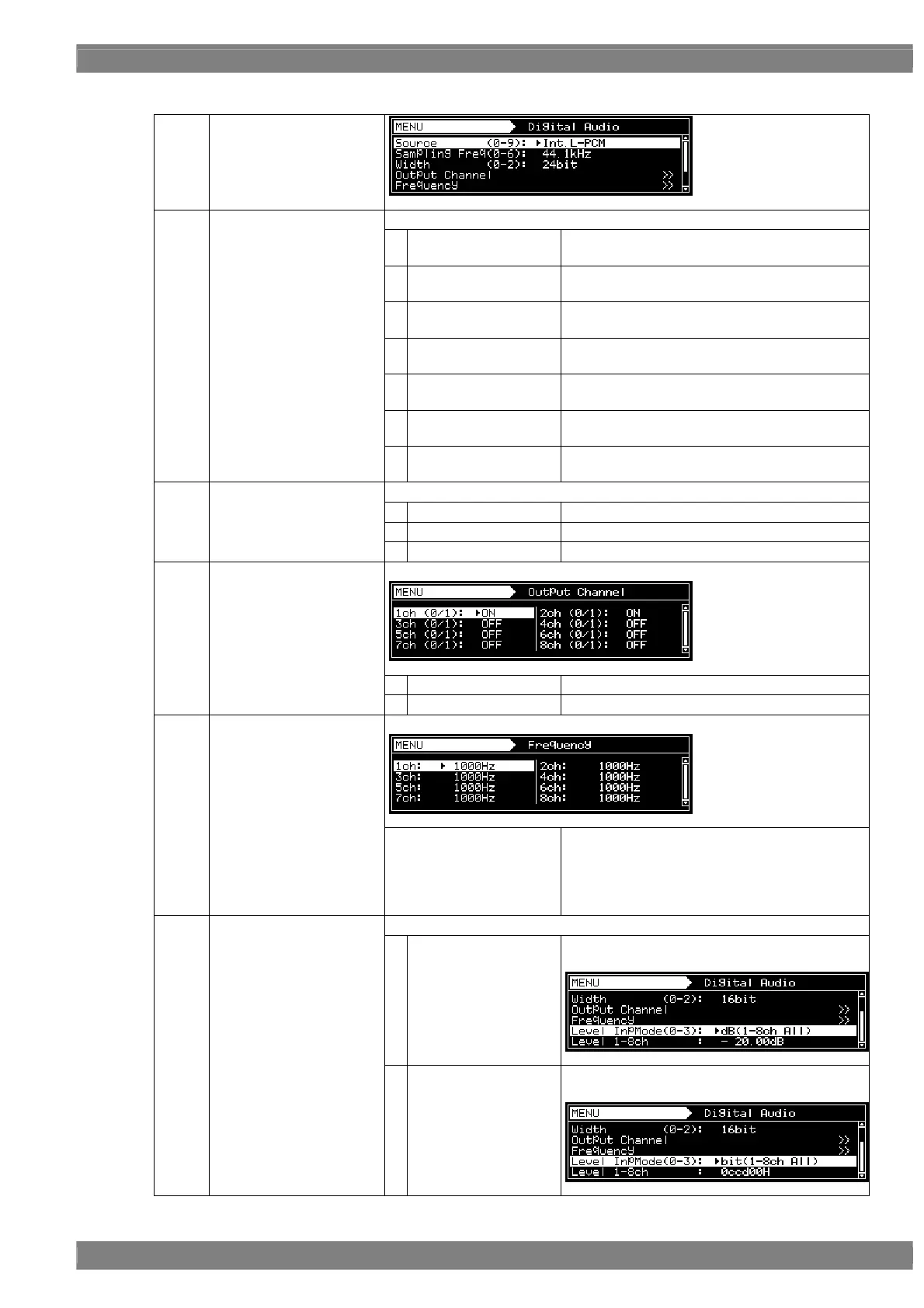

<Int. L-PCM setting parameters>
Setting menu display
This sets the sampling frequency.
0
32 KHz
This outputs the signals at a 32 kHz sampling
frequency.
1
44.1 KHz
This outputs the signals at a 44.1 kHz sampling
frequency.
2
48 KHz
This outputs the signals at a 48 kHz sampling
frequency.
3
88.2 KHz
This outputs the signals at a 88.2 kHz sampling
frequency.
4
96 KHz
This outputs the signals at a 96 kHz sampling
frequency.
5
176.4 KHz
This outputs the signals at a 176.4 kHz sampling
frequency.
(1) Sampling Frequency
(0-6)
6
192 KHz
This outputs the signals at a 192 kHz sampling
frequency.
This sets the bit length of the audio data.
0
16 BIT
The audio data is output with 16 bits.
1
20 BIT
The audio data is output with 20 bits.
(2)
Width (0-2)
2
24 BIT
The audio data is output with 24 bits.
Whether to set ON or OFF for channels 1 to 8 of the embedded audio are set here.
0
OFF
No output.
(3)
Output Channel
1
ON
Output.
This sets the frequency (sine wave) of the audio signals to be output.
(4)
Frequency
20 - 96000
A frequency up to half the value of the sampling
frequency can be set.
Example: When the sampling frequency is 48 kHz
This sets a frequency in the 20 Hz to 24 kHz
ranges
This sets the level input method.
0
dB (1-8ch All)
This sets all the channels 1 to 8 as a dB display.
Setting range: -138.48 to 0.00 [dB]
(5)
Level InpMode
1
BIT (1-8ch All)
This sets all the channels 1 to 8 as a bit display.
Setting range: 0 to 7FFFFFh
To Next Page
