ASTRO VG Series User Manual

298

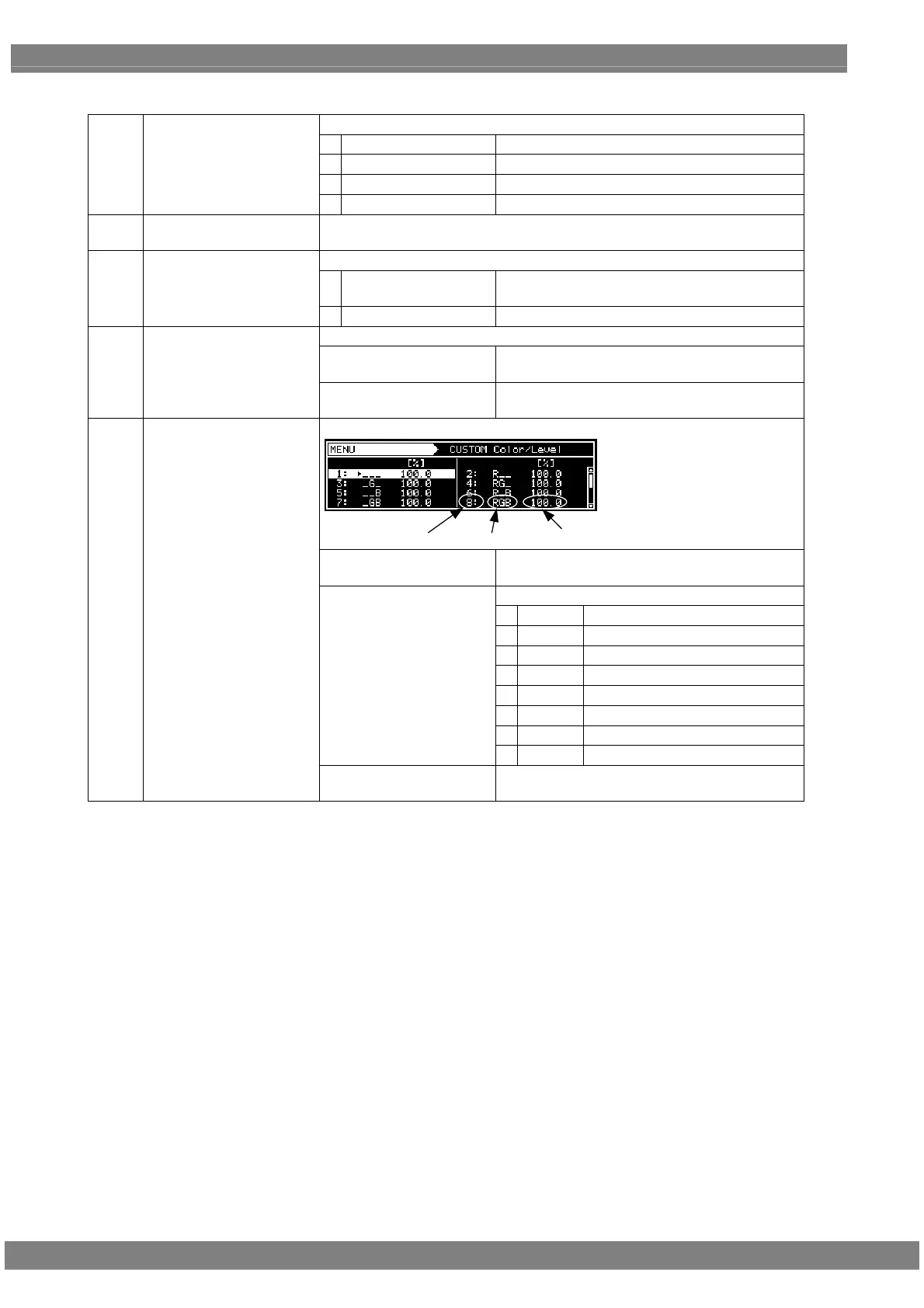

<Table of customized color bar pattern setting items>
The drawing direction of the color bars is set here.
0
H Direction
Horizontal direction
1
V Direction
Vertical direction
2
H Direction&div.V
Horizontal direction (loopback by Repeat)
(1)
Format (0-3)
3
V Direction&div.H
Vertical direction (loopback by Repeat)
(2)
Repeat
One or more of the 1 to 16 data set by Color/Level are set here. The value
set here becomes the number of colors which are displayed. Range: 1 to 16
The method of specifying the display size per color is set here.
0
%
The size is set as a percentage of the entire
screen.
(3)
Input Mode (0/1)
1
dot
The size is set in 1-dot increments.
The display size per color is set here.
When a percentage is
used for Input Mode
Set any width from 0.0% to 100.0%.
(4)
Width [%]
Width [dot]
When dots are used for
Input Mode
Set the width in 1-dot increments.
The display color and level are set here.
Color Select
Level
Number
Number
The colors from 1 to the Repeat setting are used
for the display.
The display colors are selected here.
0
_ _ _
Black
1
R _ _
Red
2
_ G _
Green
3
R G _
Yellow
4
_ _ B
Blue
5
R _ B
Magenta
6
_ G B
Cyan
Color
7
R G B
White
(5)
Color/Level
Level
The level as a percentage of the peak brightness
is set here. Setting range: 0.0 to 100.0%
