316

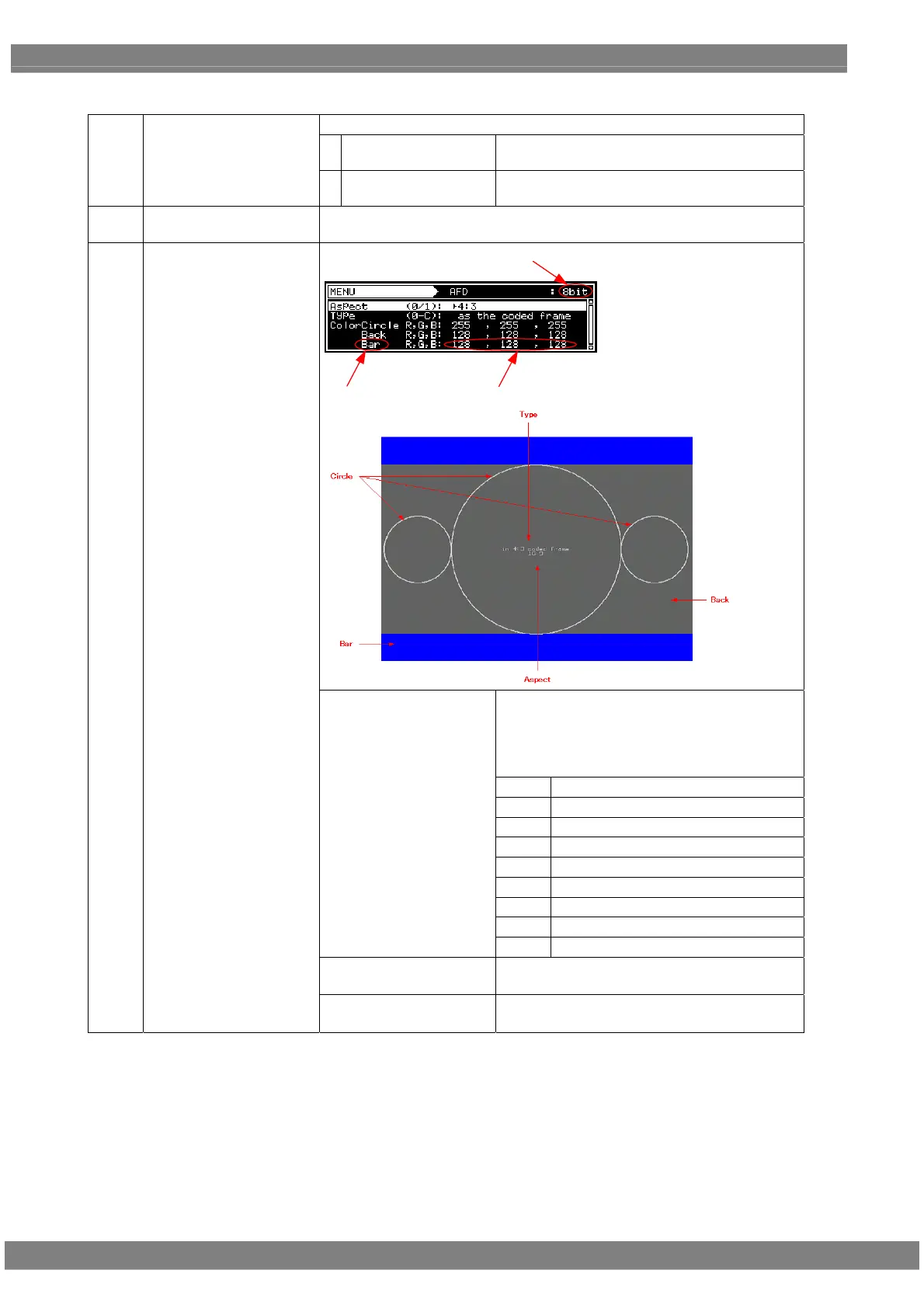

<Table of AFD pattern setting items>
The aspect ratio of the screen is set here.
0
4:3
The images are displayed on the screen with a
4:3 aspect ratio.
(1)
Aspect (0/1)
1
16:9
The images are displayed on the screen with a
16:9 aspect ratio.
(2)
Type
For details on the types of patterns, refer to “6.7.1 Types of aspect ratio
patterns.”
LevelPart
Bit Length
Display the circle level.
The R, G and B levels are displayed in
sequence from the left.
The setting range for the above level differs
depending on the color depth.
8 BIT
0 to 255
9 BIT
0 to 511
10 BIT
0 to 1023
11 BIT
0 to 2047
12 BIT
0 to 4095
13 BIT
0 to 8191
14 BIT
0 to 16383
15 BIT
0 to 32767
Circle
16 BIT
0 to 65535
Back
Set the background level.
(Details are the same as for Color Circle.)
(3)
Color
Bar
Set the bar level.
(Details are the same as for Color Circle.)
