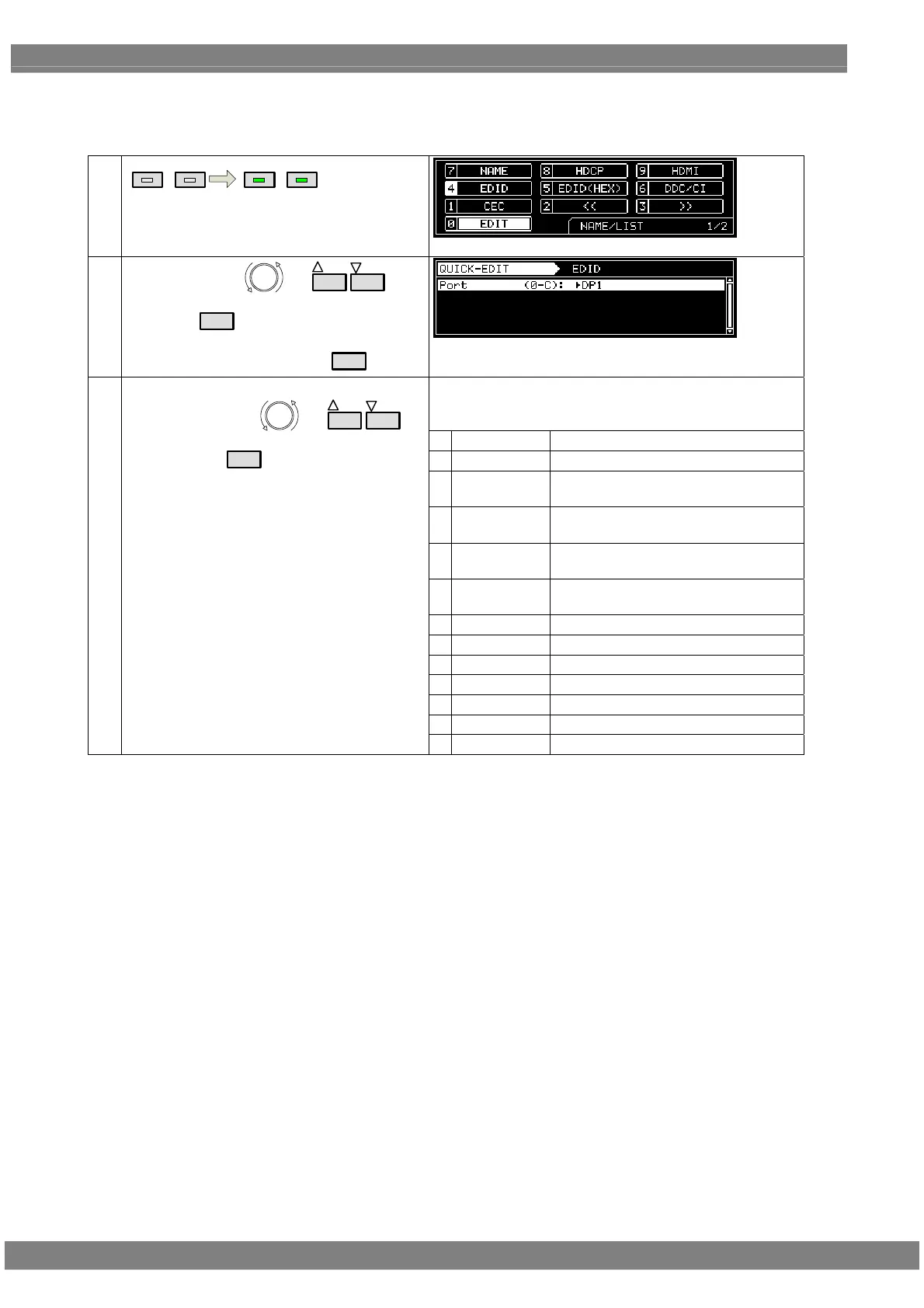

b) Port selection method
The EDID is displayed by only one video interface at a time, and it is necessary to set the video interface which is
to display the EDID.
(1)
NAME/LIST
DETAIL
NAME/LIST
DETAIL
Establish the state in which EDID or EDID (HEX)
is selected.
(2)
Select EDIT using
or
INC
DEC
, and
then press
SET
.
Alternatively, select EDIT using
0/STATUS
.
Select the video interface which is to display the EDID.
(Depending on the unit configuration, not all the following
parameters will be displayed.)
0
DVI1
Channel 1 of the DVI unit is selected.
1
DVI2
Channel 2 of the DVI unit is selected.
2
iTMDS1
Channel 1 of the iTMDS unit is
selected.
3
iTMDS2
Channel 2 of the iTMDS unit is
selected.
4 iTMDS-Quad
1
Channel 1 of the iTMDS Quad unit is
selected.
5 iTMDS-Quad
3
Channel 3 of the iTMDS Quad unit is
selected.
6
HDMI1
Channel 1 of the HDMI unit is selected.
7
HDMI2
Channel 2 of the HDMI unit is selected.
8
DP1
Channel 1 of the DPI unit is selected.
9
DP2
Channel 2 of the DPI unit is selected.
A
PC-DVI
DVI of the PC analog unit is selected.
B
PC-VGA
VGA of the PC analog unit is selected.
(3)
<Selecting the port>
Select the port using
or
INC
DEC
,
and then press
SET
.
C
TV-VGA/DVI
VGA of the TV encoder unit is selected.
