5-10
Chapter 5: Software support
9.
When the screen returns to the
ASUS Update utility
, ash the original BIOS to
load the new boot logo.
10.
After ashing the BIOS, restart the computer to display the new boot logo
during POST
.

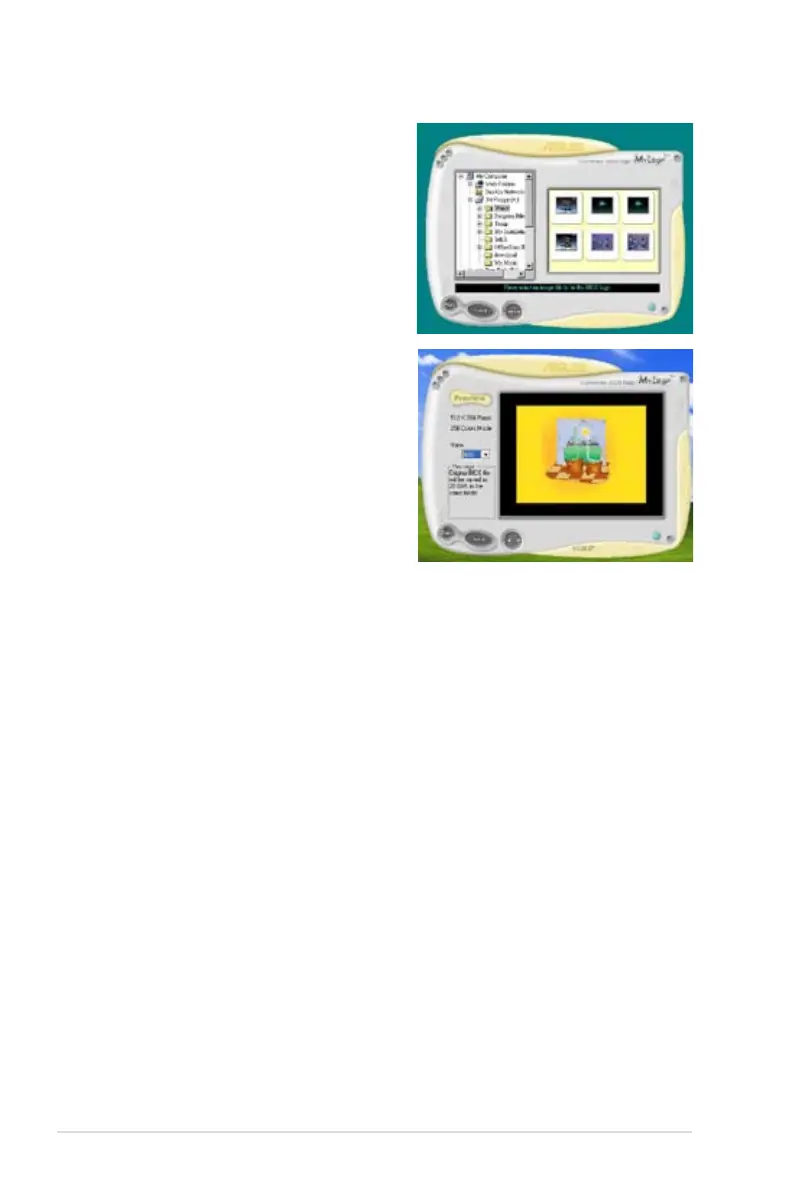

8.
Adjust the boot image to your desired
size by selecting a value on the Ratio
box.
7.
When the logo images appear on the
right window pane, select an image to
enlarge by clicking on it.
115
117
