14 ASUS A7V-VM User’s Manual
Connectors
2. H/W SETUP
2. HARDWARE SETUP

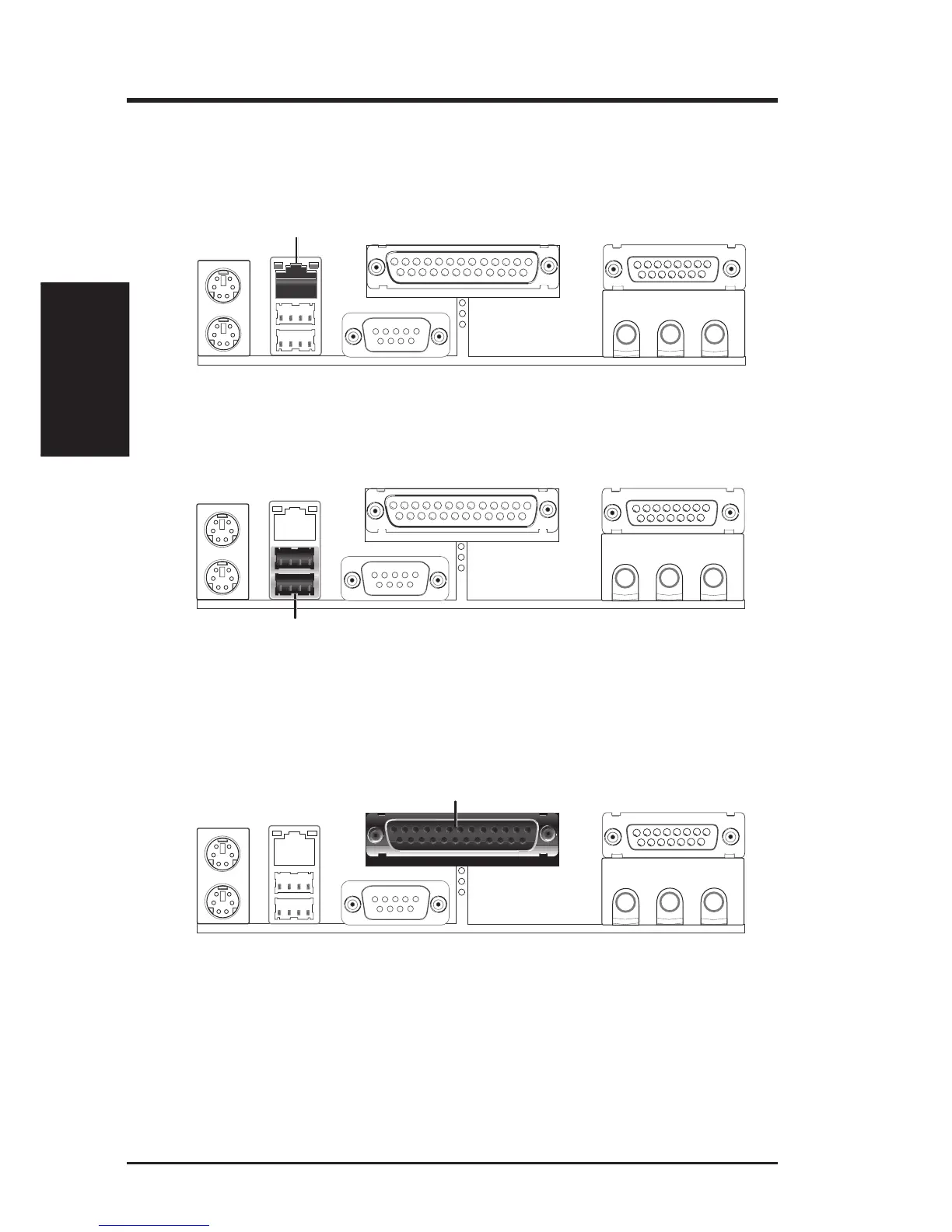

3) Fast-Ethernet Port Connector (USBLAN)
The RJ-45 connector is located on top of the USB connectors. The connector
allows the motherboard to connect to a Local Area Network (LAN) through a
network hub.
RJ-45
4) Universal Serial BUS Ports 0 & 1 (Two 4-pin USBLAN)
Two USB ports are available for connecting USB devices.
Universal Serial Bus (USB)
5) Parallel Port Connector (25-pin PRINTER)
You can enable the parallel port and choose the IRQ through Onboard Parallel
Port in the BIOS.
NOTE: Serial printers must be connected to the serial port.
Parallel (Printer) Port (25-pin female)
