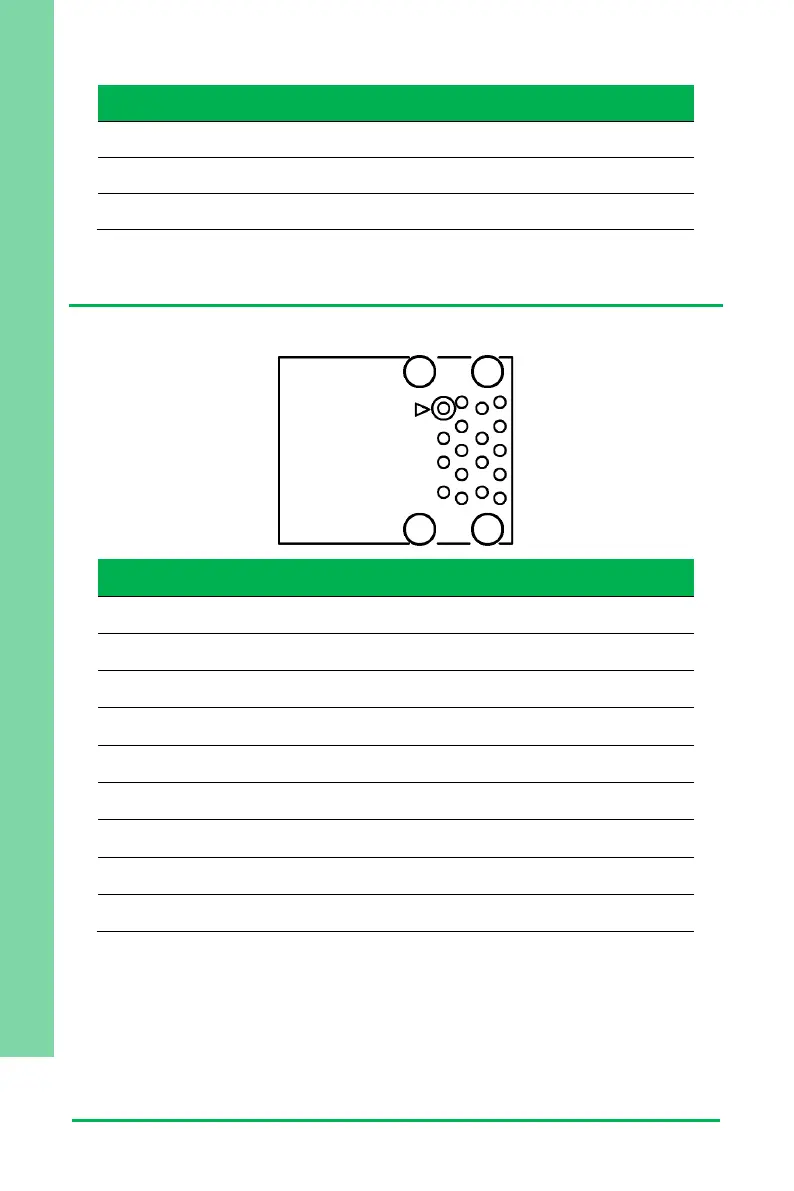

Chapter 2 – Hardware Information 24
Maker Board UP Xtreme UP-WHL01
Pin
Signal
Pin
Signal
37
3.3V
38
3.3V
39
3.3V
40
3.3V
41
3.3V
2.3.12 USB Type A Connector (CN14/ CN15)
Pin
Signal
Pin
Signal
1
5V
2
USB2_D1-
3
USB2_D1+
4
GND
5
USB3_RX1-
6
USB3_RX1+
7
GND
8
USB3_TX1-
9
USB3_TX1+
10
5V
11
USB2_D2-
12
USB2_D2+
13
GND
14
USB3_RX2-
15
USB3_RX2+
16
GND
17
USB3_TX2-
18
USB3_TX2+
