2.4 Adjusting the monitor

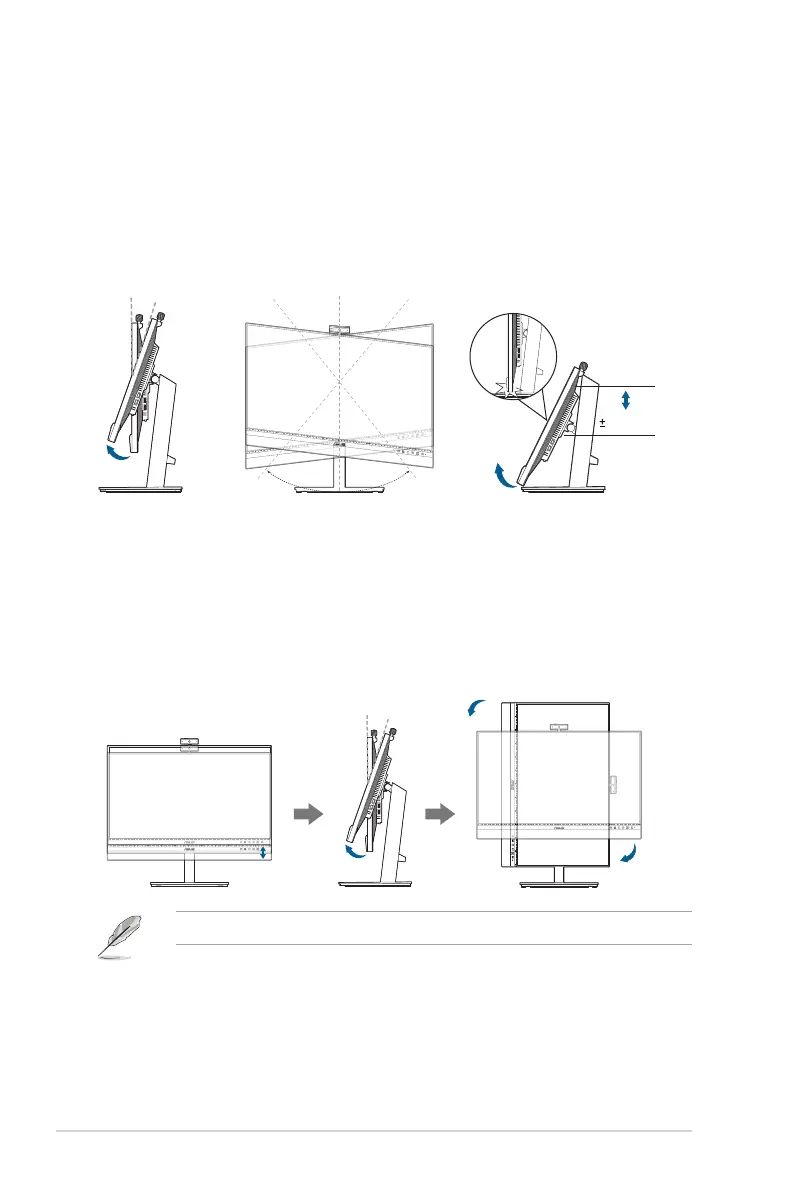

• For optimal viewing, we recommend that you look at the full face of the
monitor, then adjust the monitor to the angle that is most comfortable for you.
• Hold the stand to prevent the monitor from falling when you change its angle.
• You can adjust the monitor’s angle from +35˚ to -5˚and it allows 180˚ swivel
adjustment (by removing the stop screw) from either left or right. You can also
adjust the monitor’s height within +/- 150 mm.
180°
0°
180°
-5° ~ +35°
150mm
(Swivel)
(Height adjustment)
(Tilt)
Pivoting the monitor
1. Lift the monitor to the highest position.
2. Tilt the monitor to its maximum angle.
3. Pivot the monitor clockwise/counterclockwise to the angle you need.
0°
90°
0°
- 90°
-5° ~ +35°
It is normal that the monitor slightly shakes while you adjust the viewing angle.
