ASUS F2A85-M PRO

6-11

Chapter 6

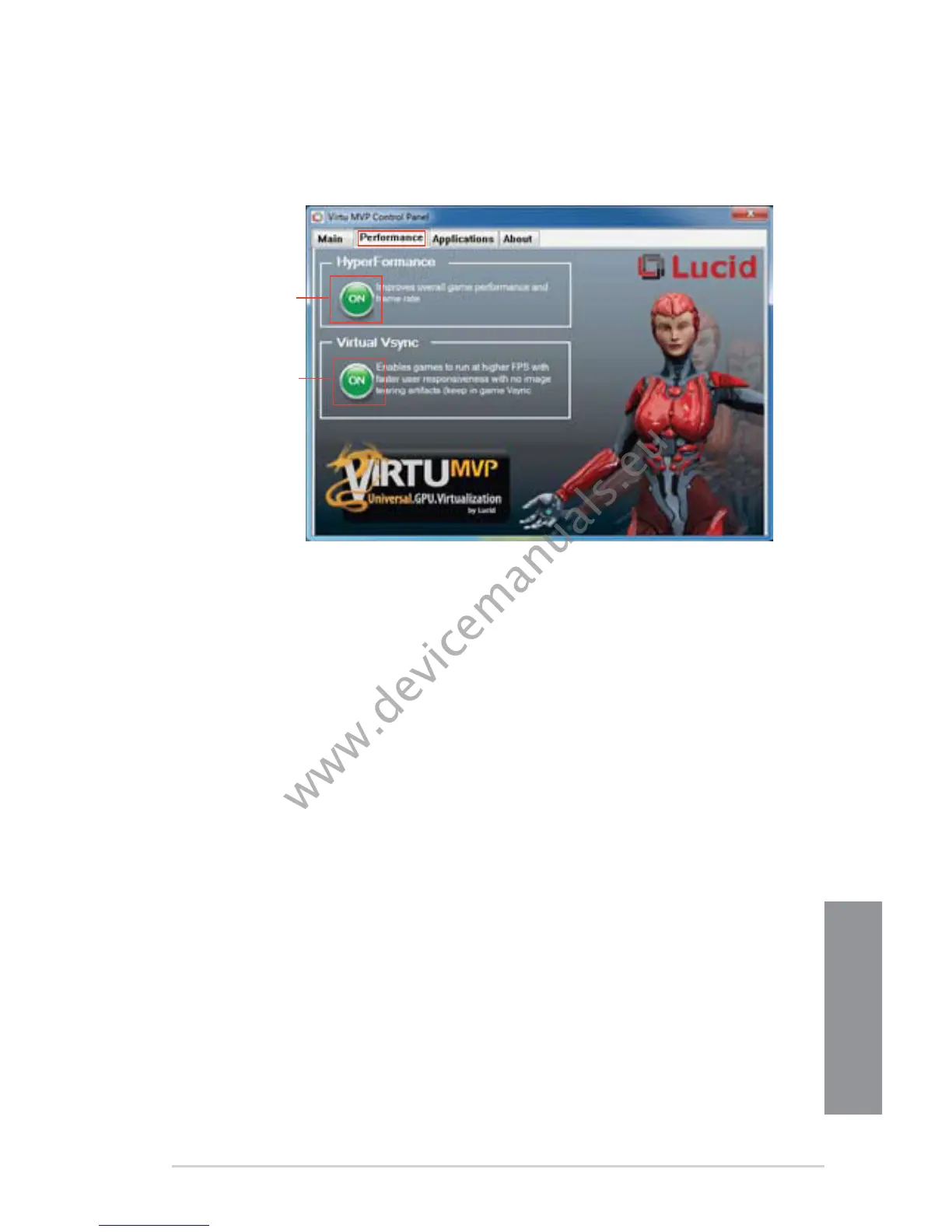

Click to turn

Hyperformance®

ON or OFF

Click to turn

Virtual Vsync ON

or OFF

Performance

Allows you to turn ON/OFF the Hyperformance

®

or Virtual Vsync function.

www.devicemanuals.eu
