7

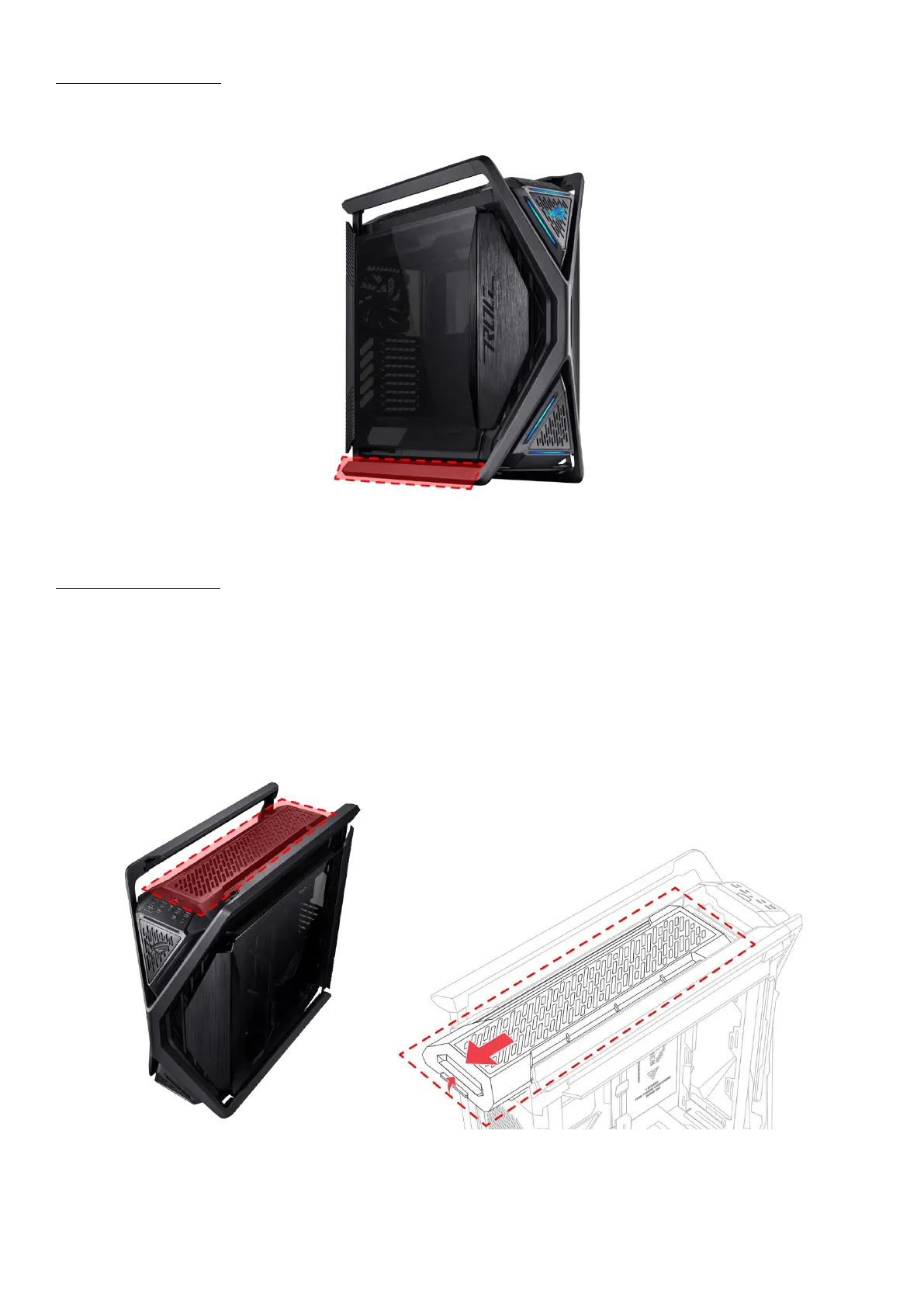

90DC00F0-B0055C
GR701 AL LEFT LOW/CSC｜Lower left aluminum footstand
Disassembly method: Unscrew the screws.
90DC00F0-B000EC
GR701 TOP FILTER/CSC｜Top filter
Fully-assembled. (Consists of Upper cover base*1, Upper cover latch*1, Upper cover mesh*2,
Top cover decorative panel*1, Aluminum rivets for top cover decorative panel*6, Upper
filter*1, T3 self-tapping screws for latch*2, T3*4 self-tapping screw (Pan head) for mesh*12,
Flat round head M3 chassis screws for top cover decorative panel*6)
Disassembly method: Press the rear side tab upward and pull it backward to remove.
