2.1.10 Wi-Fi antenna installation
Installing the ASUS 2T2R dual band W-Fi antenna

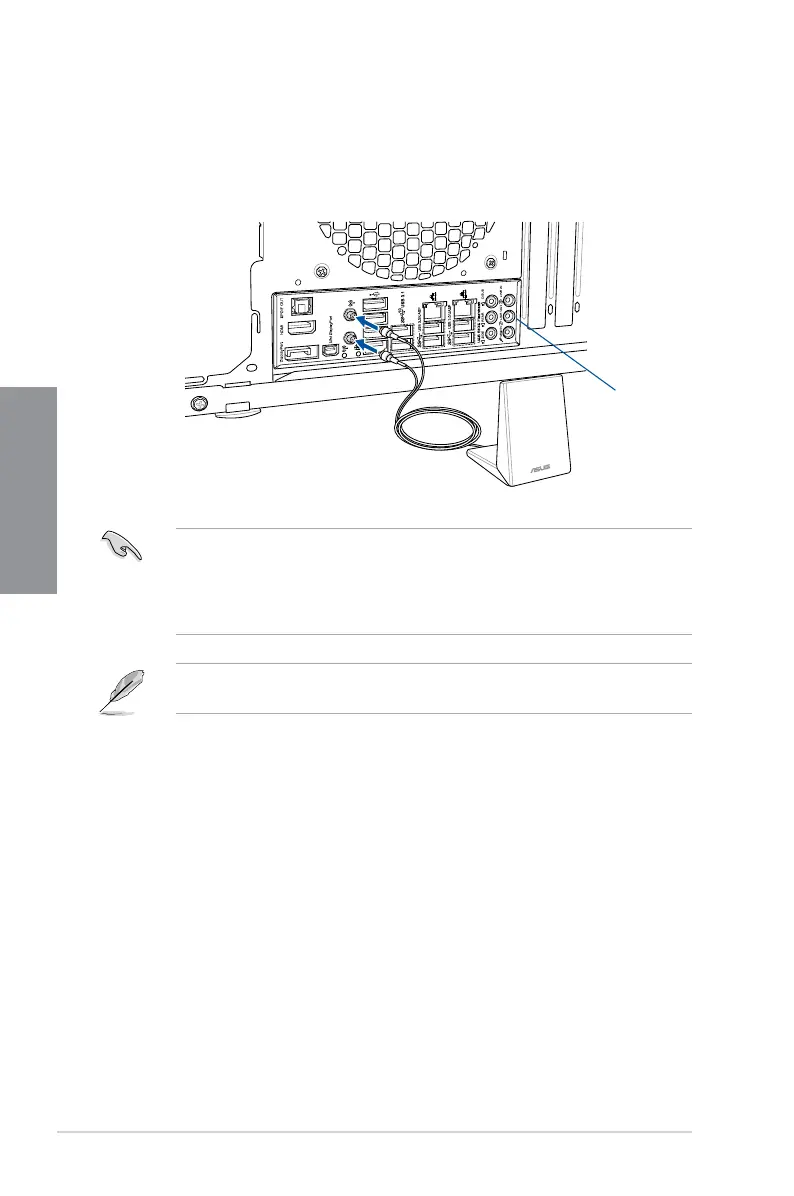

ConnectthebundledASUS2T2RdualbandWi-FiantennaconnectortotheWi-Fiportsat
the back of the chassis.
IO Shield
• EnsurethattheASUS2T2RdualbandWi-FiantennaissecurelyinstalledtotheWi-Fi
ports.
• EnsuretoinstalltheBluetoothdriverbeforeinstallingtheWi-FiGO!software.
• Ensurethattheantennaisatleast20cmawayfromallpersons.
The illustration above is for reference only. The I/O port layout may vary with models, but
theWi-Fiantennainstallationprocedureisthesameforallmodels.
