Chapter 4: Software support
Chapter 4

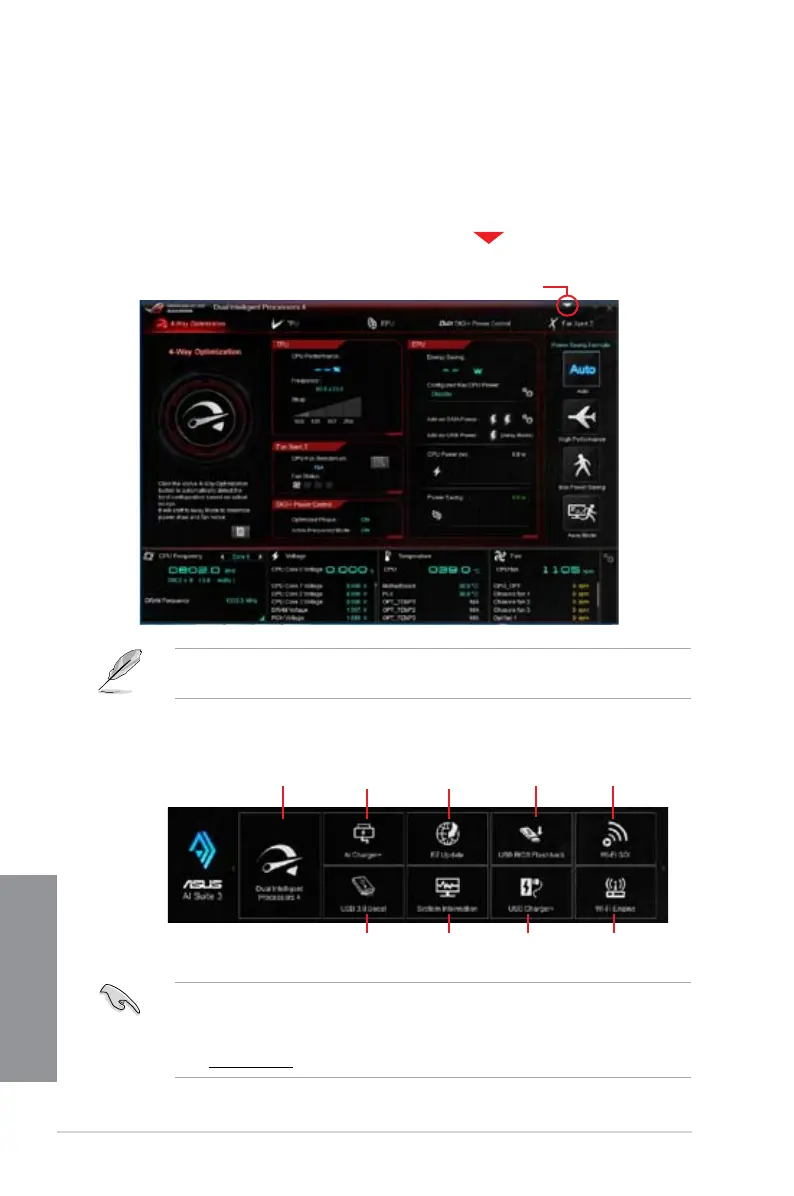

Click to launch AI Suite 3 menu bar
The Ai Suite 3 screenshots in this section are for reference only and can vary depending on
motherboard model.
AI Suite 3 Main menu
The AI Suite 3 main menu gives you easy-access controls and insight to what’s going on
with your computer - allowing you to optimize performance settings while at the same time
ensuring system stability.
Included in the AI Suite 3 main menu is a quick-access menu bar that allows you to swiftly
launch any of the integrated ASUS utilities. Click or tap the on the top-edge of menu to
launch the menu bar.
AI Suite 3 main menu bar
• Some functions in the AI Suite 3 main menu in this user manual may vary depending
on the motherboard model.
• Refer to the software manual in the support DVD or visit the ASUS website at
www.asus.com for detailed software configuration.
System
Information
USB Charger+
Ai Charger+ EZ Update
Wi-Fi Engine
USB BIOS
Flashback Wizard
Wi-Fi GO!
4-Way
Optimization
USB 3.0
Boost

Asus Maximus VI Extreme Specifications

General

ECC	No
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1333, 1500, 1600, 1666, 1800, 1866, 1900, 2000, 2100, 2133, 2200, 2250, 2400, 2450, 2600, 2666, 2800, 3000 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA III connectors	10
Number of Parallel ATA connectors	0
HDMI version	1.4a
USB 2.0 ports quantity	2
Audio chip	Realtek ALC1150
Cooling type	Passive
Component for	PC
Motherboard chipset	Intel® Z87
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA, SATA II, SATA III
Graphics card	HD Graphics
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, 4-Way CrossFireX, 4-Way SLI, Quad-GPU CrossFireX, Quad-GPU SLI
PCI Express x16 slots	5
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x8, 1x16, 2x8
Cables included	SATA
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
