Asus P5PE-VM User Manual

ASUS P5PE-VM 1-9

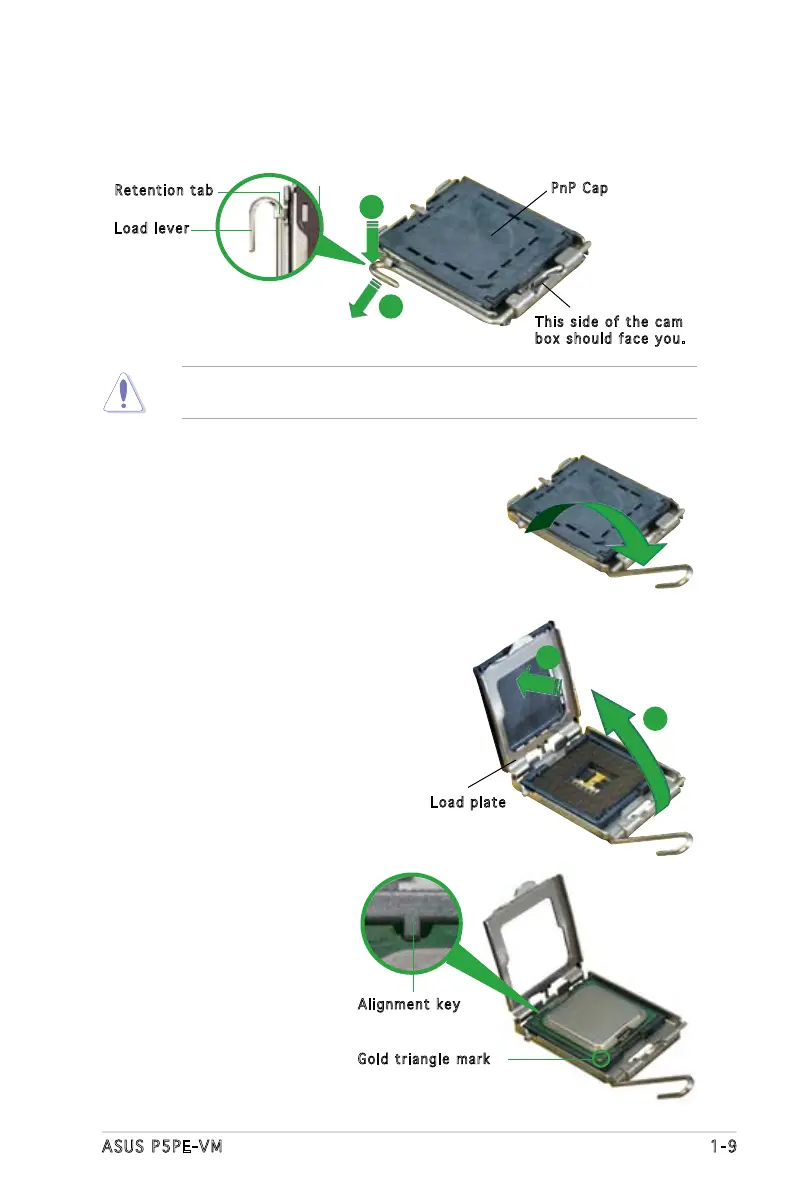

3. Lift the load lever in the direction
of the arrow to a 135º angle.
4. Lift the load plate with your
thumb and forenger to a 100º
angle (A), then push the PnP cap
from the load plate window to
remove (B).
5. Position the CPU over the
socket, making sure that
the gold triangle is on
the bottom-left corner of
the socket. The socket
alignment key should t
into the CPU notch.
To prevent damage to the socket pins, do not remove the PnP cap
unless you are installing a CPU.
2. Press the load lever with your thumb (A) and move it to the left (B)
until it is released from the retention tab.
Retention tab
Load lever
This side of the cam
box should face you.
PnP Cap
A
B
Load plate
A
B
Alignment key
Gold triangle mark

Asus P5PE-VM Specifications

General

ECC	No
Number of memory slots	2
Maximum internal memory	2 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
CPU fan connector	Yes
USB 2.0 ports quantity	4
Audio chip	ADI AD1888
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Special features	ASUS CPU Lock Free MyLogo CrashFree BIOS2 EZ Flash ASUS C.P.R.
Controller interface type	UltraDMA 100/66/33
Controller 2nd interface type	Serial ATA
LAN controller	Marvell 88E8001
Networking features	Gigabit Ethernet
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	193 mm
Width	245 mm
