1-28 Chapter 1: Product introduction

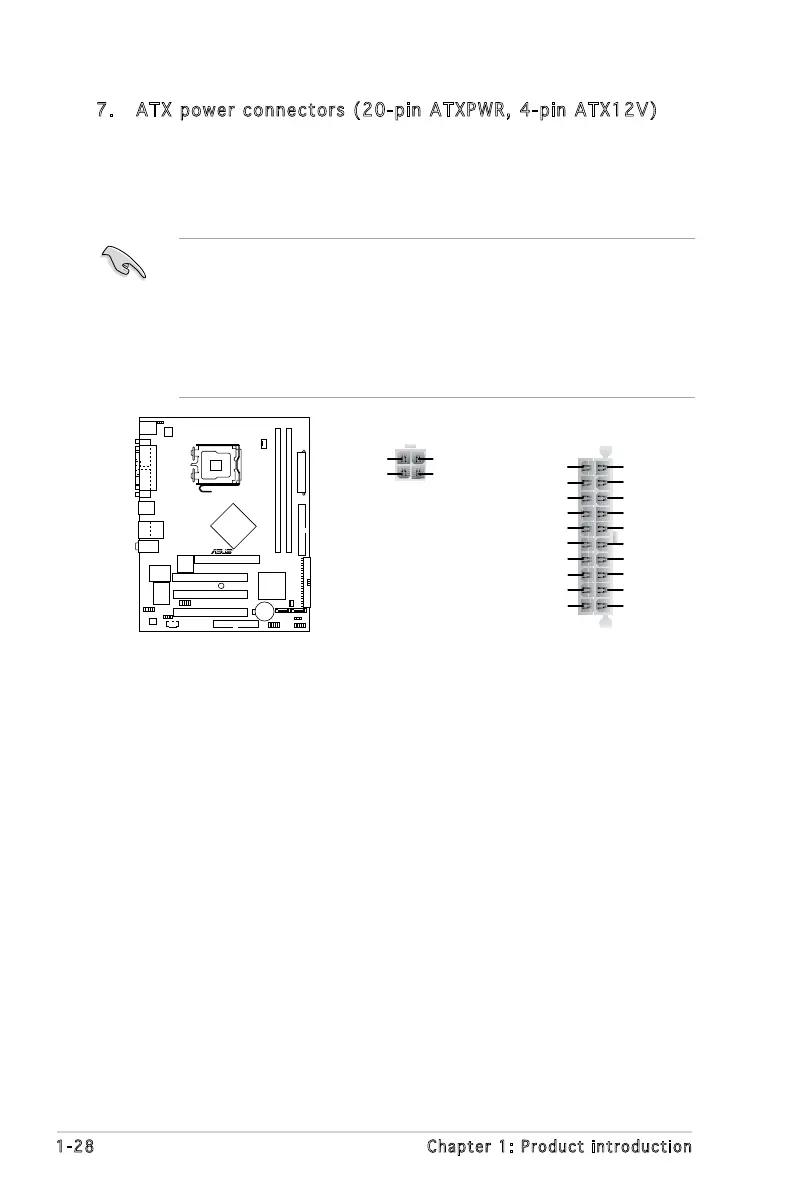

7. ATX power connectors (20-pin ATXPWR, 4-pin ATX12V)
These connectors are for an ATX power supply. The plugs from
the power supply are designed to t these connectors in only one
orientation. Find the proper orientation and push down rmly until the
connectors completely t.
• Do not forget to connect the 4-pin ATX +12 V power plug;
otherwise, the system will not boot up.
• Use a PSU with a minimum power rating of 300 W on this
motherboard. Use of a PSU with a higher power output
is recommended when conguring a system with more
power-consuming devices. The system may become unstable or may
not boot up if the power is inadequate.
R
P5PE-VM
P5PE-VM ATX Power Connector
ATXPWRATX12V
+3.3Volts
-12.0Volts
Power Supply On
Ground
Ground
Ground
Ground
Ground
Ground
Ground
+5.0 Volts
+5.0 Volts
+5.0 Volts
+5.0 Volts
-5.0 Volts
Power Good
+12.0Volts
+3.3 Volts
+3.3 Volts
+5V Standby
GND
GND
+12VDC
+12VDC

Asus P5PE-VM Specifications

General

ECC	No
Number of memory slots	2
Maximum internal memory	2 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
CPU fan connector	Yes
USB 2.0 ports quantity	4
Audio chip	ADI AD1888
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Special features	ASUS CPU Lock Free MyLogo CrashFree BIOS2 EZ Flash ASUS C.P.R.
Controller interface type	UltraDMA 100/66/33
Controller 2nd interface type	Serial ATA
LAN controller	Marvell 88E8001
Networking features	Gigabit Ethernet
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	193 mm
Width	245 mm
