4.3.6 MyLogo
MyLogo allows you to customize the boot logo, which is the image that appears on the screen
during the Power On Self Tests (POST).

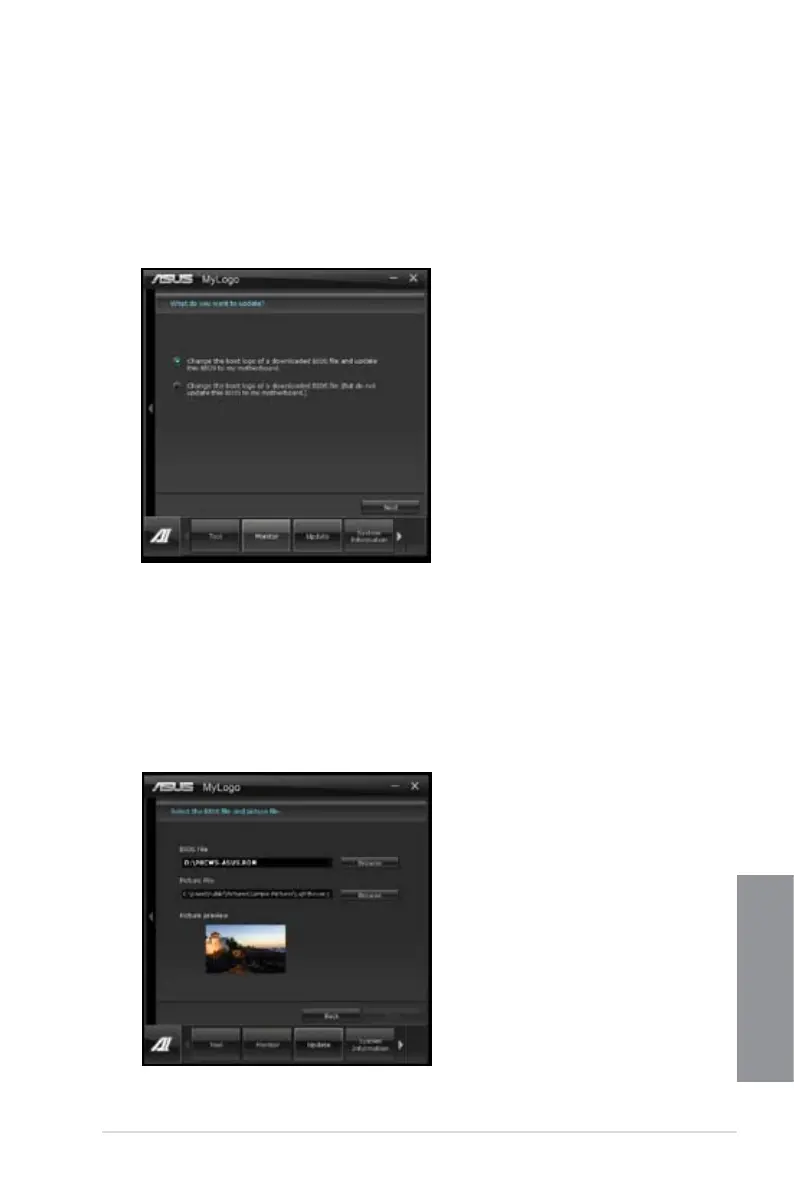

Launching ASUS Update
To launch MyLogo, click Update > MyLogo on the AI Suite II main menu bar.
Select the option that you want to use to update your boot logo, click Next and follow the
instructions below.
Change the boot logo of a downloaded BIOS le and update (or do not update) this
BIOS to the motherboard
1. From the
BIOS le eld, click Browse to locate the BIOS le.
2. From the Picture File eld, click
Browse the image for your boot logo, then click
Next.

Asus P8C WS Specifications

General

ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1333, 1600 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
Number of SATA III connectors	2
Number of Parallel ATA connectors	-
USB 2.0 ports quantity	6
Audio chip	Realtek ALC892
Cooling type	Passive
Component for	PC
Motherboard chipset	Intel® C216
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows Server 2008 R2 Enterprise Windows Server 2008 Enterprise 32/64-bit Windows Server 2003 R2 Enterprise 32/64-bit Windows 7 32/64-bit Windows XP 32/64-bit
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Parallel processing technology support	Quad-GPU CrossFireX
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x16, 2x4, 2x8
PCI Express slots quantity	5
LAN controller	Intel® 82574L
Networking features	2 x Gigabit LAN
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	245 mm
Width	305 mm
