Asus P8H61-M LX PLUS User Manual

ASUS P8H61-M LX Series1-22
• For a fully congured system, we recommend that you use a power supply unit (PSU)
that complies with ATX 12 V Specication 2.0 (or later version) and provides a minimum
power of 350 W.
• DO NOT forget to connect the 4-pin ATX +12V power plug. Otherwise, the system will
not boot up.
• We recommend that you use a PSU with higher power output when conguring a
system with more power-consuming devices. The system may become unstable or may
not boot up if the power is inadequate.
• If you are uncertain about the minimum power supply requirement for your system,
refer to the Recommended Power Supply Wattage Calculator at http://support.asus.
com/PowerSupplyCalculator/PSCalculator.aspx?SLanguage=en-us for details.

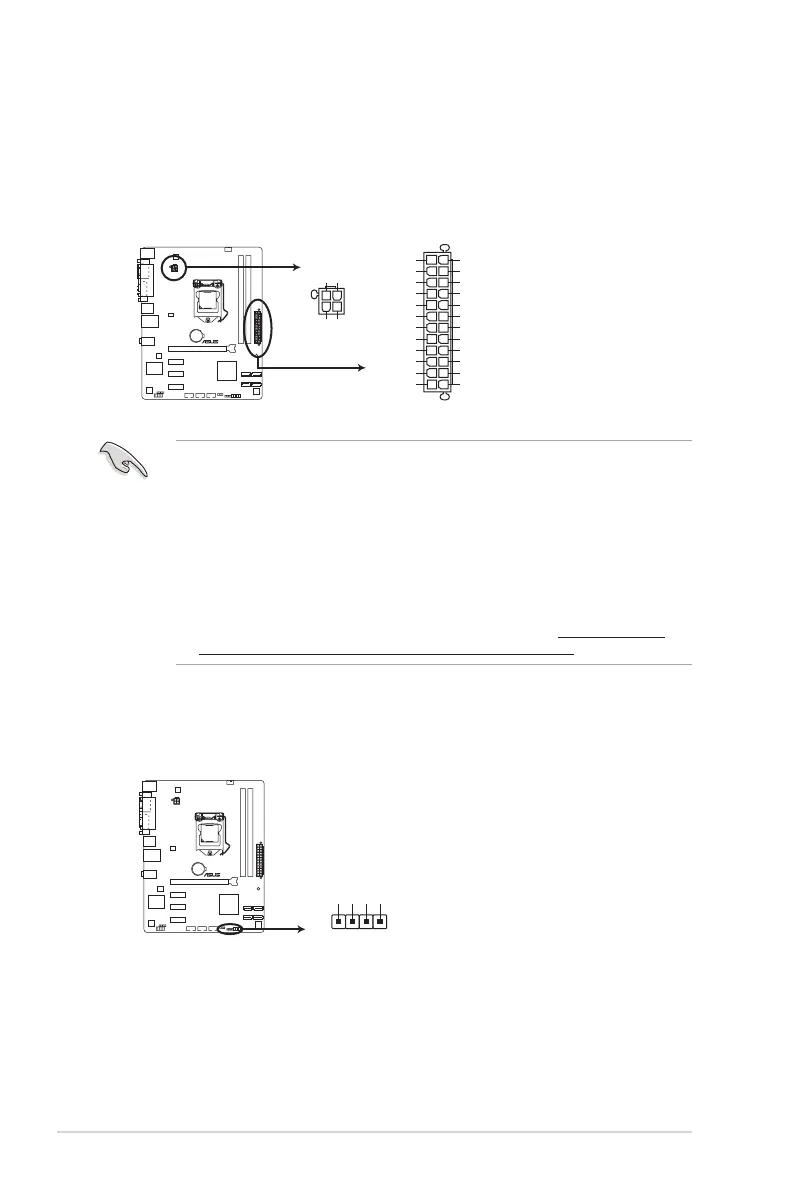

2. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)
These connectors are for ATX power supply plugs. The power supply plugs are
designed to t these connectors in only one orientation. Find the proper orientation and
push down rmly until the connectors completely t.
P8H61-M LX
P8H61-M LX ATX power connectors
EATXPWR
PIN 1
GND
+5 Volts
+5 Volts
+5 Volts
-5 Volts
GND
GND
GND
PSON#
GND
-12 Volts
+3 Volts
+3 Volts
+12 Volts
+12 Volts
+5V Standby
Power OK
GND
+5 Volts
GND
+5 Volts
GND
+3 Volts
+3 Volts
EATX12V
PIN 1
+12V DC +12V DC
GND GND
3. Speaker connector (4-pin SPEAKER)
The 4-pin connector is for the chassis-mounted system warning speaker. The speaker
allows you to hear system beeps and warnings.
P8H61-M LX
P8H61-M LX Speaker Out Connector
+5V GND GND Speaker Out
SPEAKER
PIN 1

Asus P8H61-M LX PLUS Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
CPU Socket	LGA 1155
Memory Slots	2 x DIMM
Memory Type	DDR3
Maximum Memory	16GB
PCI Express x16	1
PCI Express x1	2
SATA Ports	4 x SATA 3Gb/s
Audio Chipset	Realtek ALC887
Audio	Realtek ALC887
LAN	Realtek 8111E
Video Outputs	VGA
Power Connector	24-pin ATX
USB Ports	8 (4 on back panel, 4 via headers)
