Asus P8H61-M LX PLUS User Manual

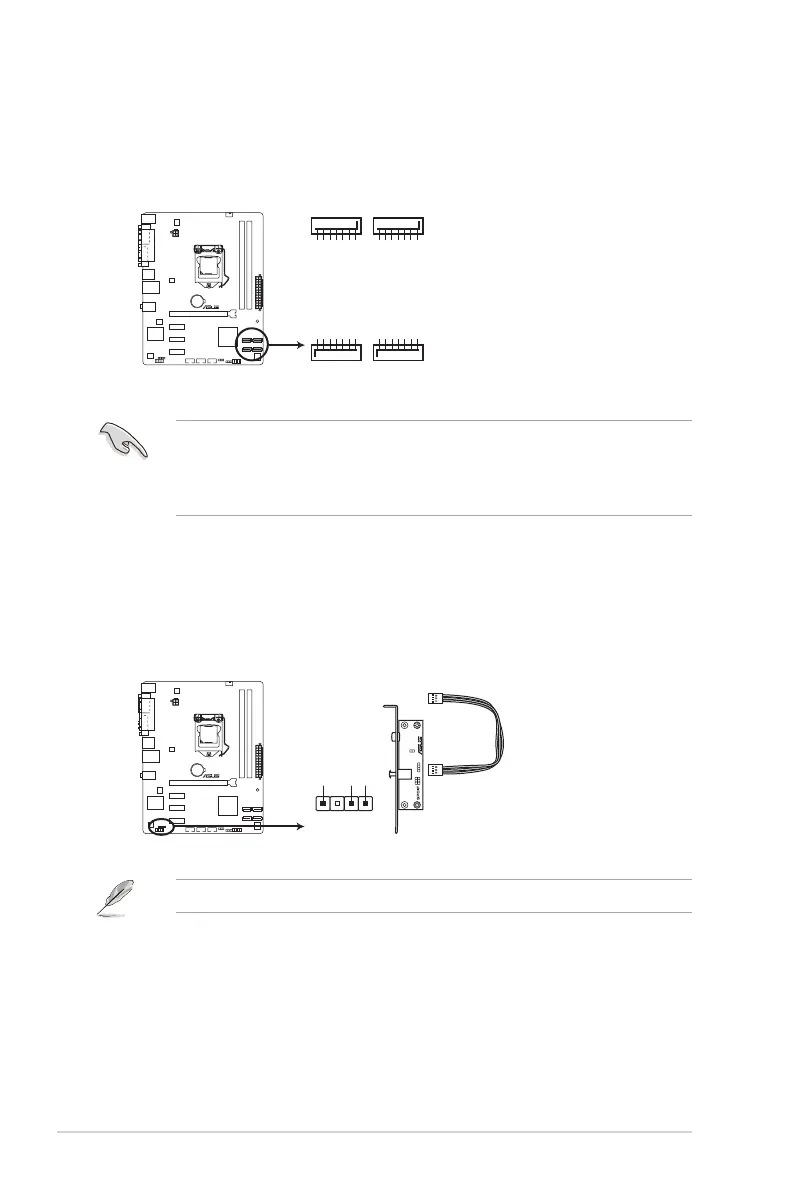

ASUS P8H61-M LX Series1-24
6. Intel
®
H61 Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1~4)
These connectors connect to Serial ATA 3.0 Gb/s hard disk drives and optical drives via
Serial ATA 3.0 Gb/s signal cables.
• You must install Windows
®
XP Service Pack 3 or later version before using Serial ATA
hard disk drives.
• When using hot-plug and NCQ, set the SATA Mode item in the BIOS to [AHCI Mode].
See section 2.5.4 SATA Conguration for details.
SATA3G_2
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXP2
RSATA_RXN2
GND
GND RSATA_RXN4 RSATA_RXP4 GND RSATA_TXN4 RSATA_TXP4 GND
SATA3G_4
SATA3G_1
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXP1
RSATA_RXN1
GND
GND RSATA_RXN3 RSATA_RXP3 GND RSATA_TXN3 RSATA_TXP3 GND
SATA3G_3
P8H61-M LX
P8H61-M LX Intel
®
SATA 3.0Gb/s connectors
7. Digital audio connector (4-1 pin SPDIF_OUT)
This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port. Connect
the S/PDIF Out module cable to this connector, then install the module to a slot
opening at the back of the system chassis.
The S/PDIF module is purchased separately.
SPDIF_OUT
+5V SPDIFOUT GND
P8H61-M LX
P8H61-M LX Digital audio connector

Asus P8H61-M LX PLUS Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
CPU Socket	LGA 1155
Memory Slots	2 x DIMM
Memory Type	DDR3
Maximum Memory	16GB
PCI Express x16	1
PCI Express x1	2
SATA Ports	4 x SATA 3Gb/s
Audio Chipset	Realtek ALC887
Audio	Realtek ALC887
LAN	Realtek 8111E
Video Outputs	VGA
Power Connector	24-pin ATX
USB Ports	8 (4 on back panel, 4 via headers)
