SPRING SCREW COOLER

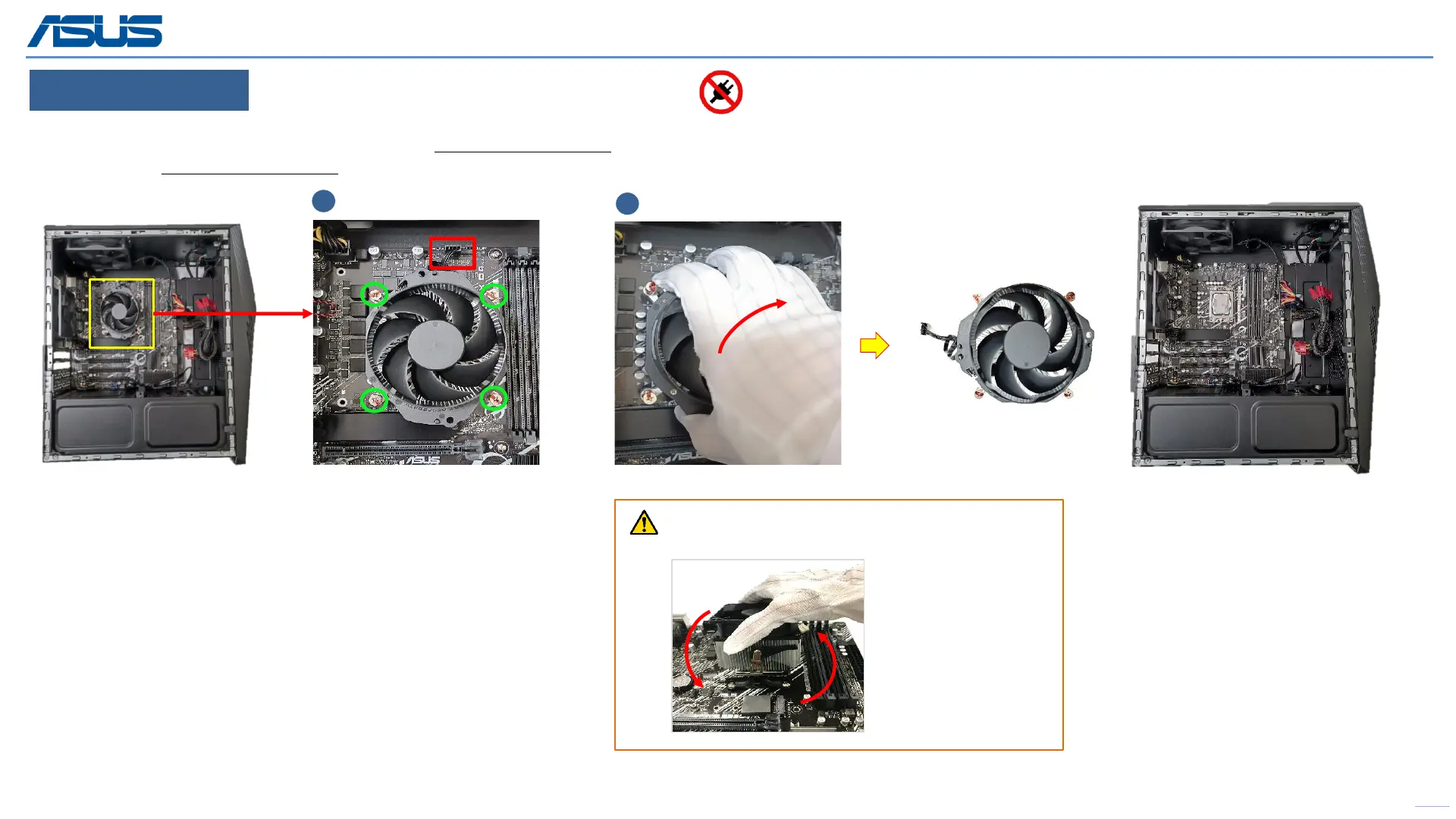

Step 1 : Release 4 screws (green mark) holding on the SPRING SCREW COOLER, then disconnect the cable connector(red mark).
Step 2 : Take out SPRING SCREW COOLER.
Back
14
Disassembly Notice
Please be sure to pull out AC POWER CORD.
2
Take out
1
Release and disconnect
If the CPU COOLER is hard to disassemble,
please move the COOLER left and right to separate.
d
SPRING SCREW COOLER
To Next Page
