2.1.10 Wi-Fi moving antenna installation
Installing the ASUS Wi-Fi moving antenna

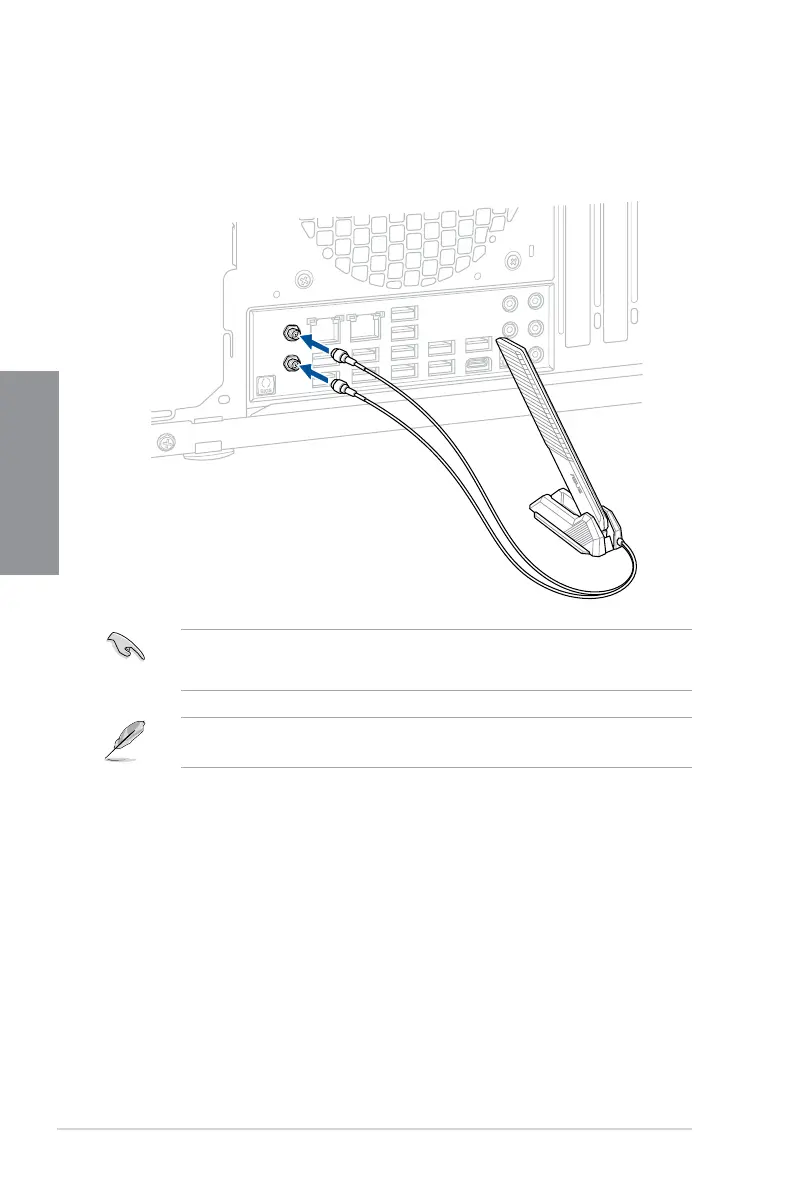

Connect the bundled ASUS Wi-Fi moving antenna connector to the Wi-Fi ports at the back
of the chassis.
• Ensure that the ASUS Wi-Fi moving antenna is securely installed to the Wi-Fi ports.
• Ensure that the antenna is at least 20 cm away from all persons.
The illustration above is for reference only. The I/O port layout may vary with models, but
the Wi-Fi moving antenna installation procedure is the same for all models.
