4-17
RS720Q-E9-RS8 Series

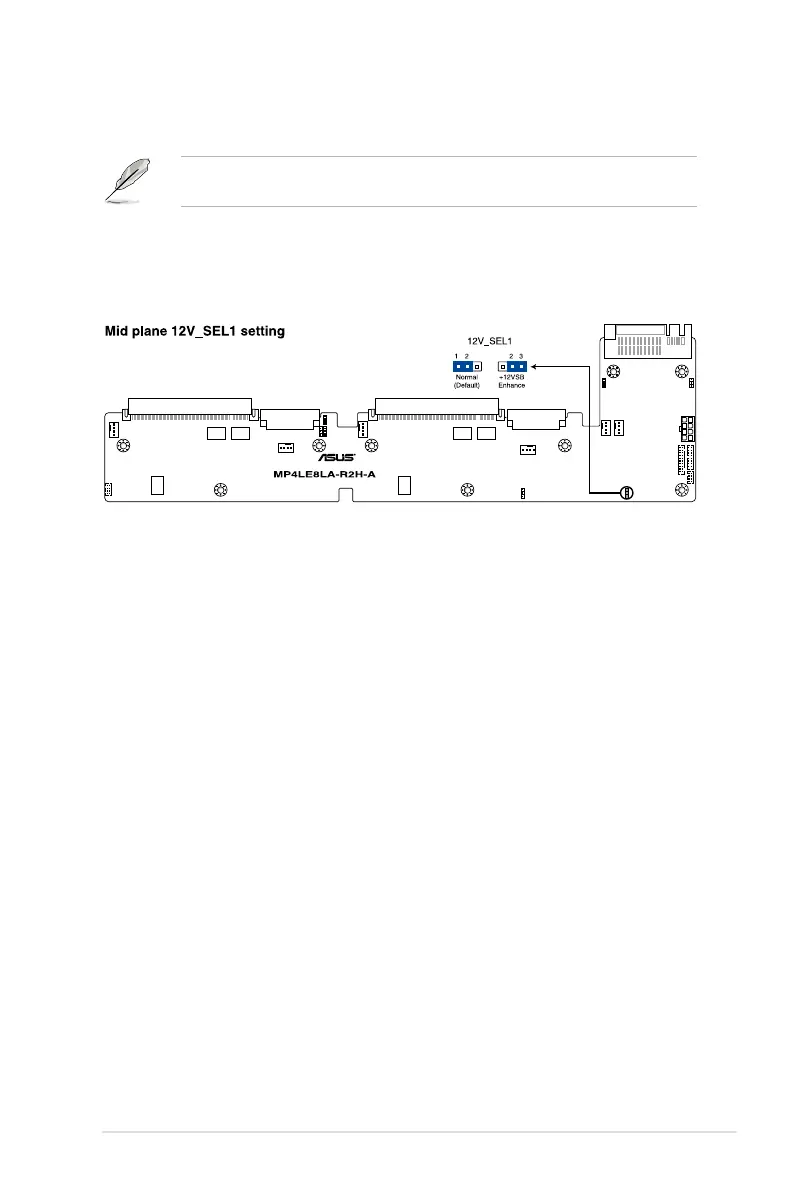

4.5 Mid Plane jumper
1. 12V_SEL1 jumper
This jumper allows you to enhance the 12V standy when the system’s +12VSB is not
enough.
The illustration in this section may differ between models, but the location of the jumper
remains the same.
