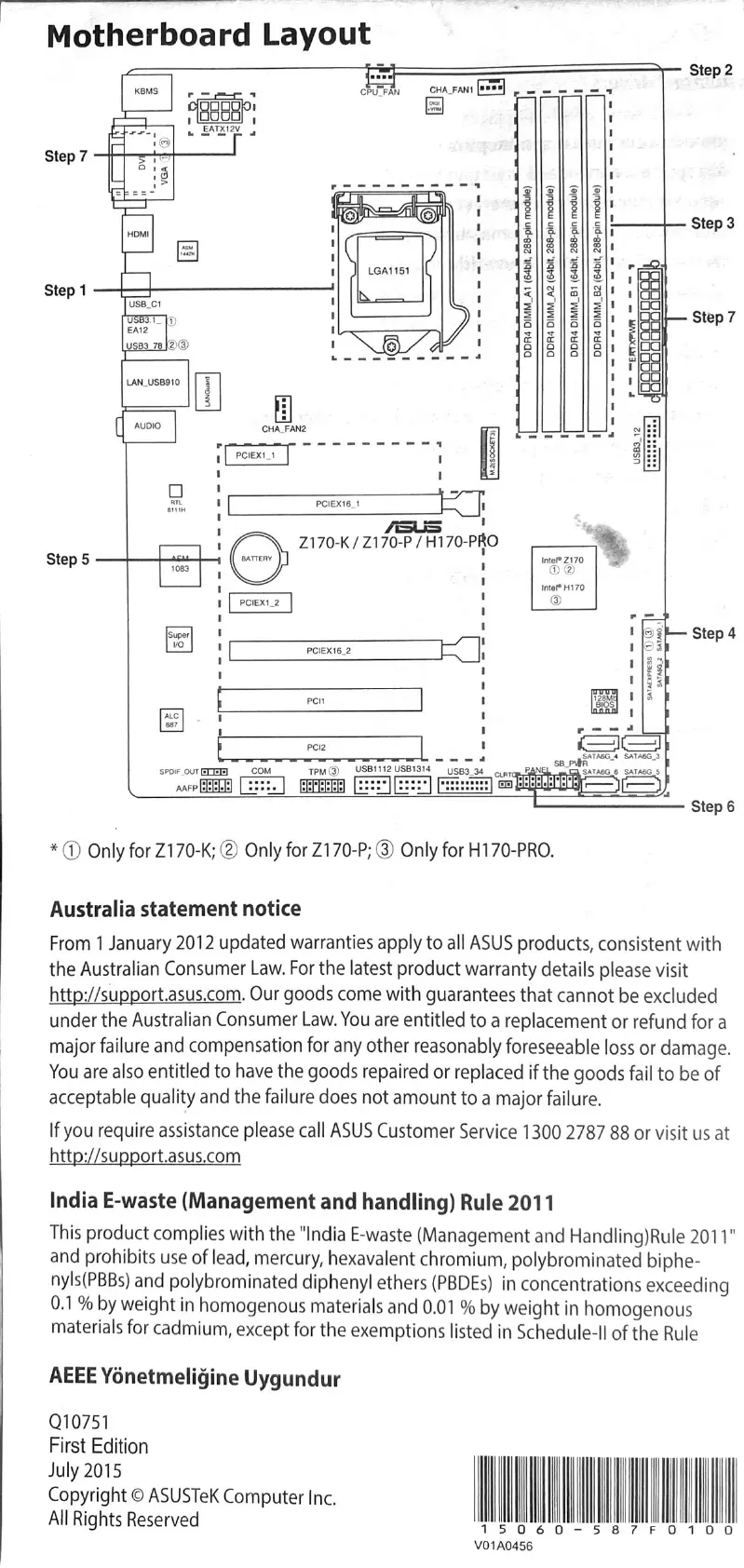

Asus Z170-K Quick Start Guide

Motherboard
Layout
Step
2
a
EAI,
Step
3
5
Step
1
5
a
'
step7
elle
§
i]
!
l
oO
'
~
ene
ERT
. 1
1
1
7s! ‘6
Z170-K
/Z170-P
/
H170-PRO
Intel®
Q@
Step
5
'
Intel®
t
Step
4
i
i
1
i
t
'
ron
---
soa ES
‘sPoiF_OUT COM. Tem@ USB1112 OA 6 SATASG $
sr]
Go
Step
6
* @ Only for Z170-K; @ Only for Z170-P; @ Only for H170-PRO.
Australia statement notice
From
1
January
2012
updated
warranties
apply
to
all
ASUS
products,
consistent
with
the Australian Consumer Law. For the latest product warranty details please visit
http://support.asus.com. Our goods come with guarantees that cannot be excluded
under the Australian Consumer Law. You are entitled to a replacement or refund for a
major failure and compensation for any other reasonably foreseeable loss or damage.
You
are
also
entitled
to
have
the
goods
repaired
or
replaced
if
the
goods
fail
to
be
of
acceptable quality and the failure does not amount to a major failure.
If you require assistance please call ASUS Customer Service 1300 2787 88 or visit us at
http://support.asus.com
India E-waste (Management and handling) Rule 2011
This product complies with the "India E-waste (Management and Handling)Rule 2011"
and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphe-
nyls(PBBs) and polybrominated diphenyl ethers (PBDEs) in concentrations exceeding
0.1
%
by
weight
in
homogenous
materials
and
0.01
%
by
weight
in
homogenous
materials
for
cadmium,
except
for
the
exemptions
listed
in
Schedule-ll
of
the
Rule
AEEE
Yonetmeligine
Uygundur
Q10751
First
Edition
July 2015
Copyright
©
ASUSTeK
Computer
Inc.
All Rights Reserved
AAI
V01A0456

Asus Z170-K Specifications

General

Memory channels	Dual-channel
Memory slots type	DIMM
Unbuffered memory	Yes
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	3300, 2600, 3333, 3400, 2800, 3466, 2133, 3000, 2400, 3200 MHz
Supported memory module capacities	16GB
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
USB 2.0 connectors	2
Number of COM connectors	1
Number of SATA III connectors	6
Number of Parallel ATA connectors	0
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA III
S/PDIF out port	No
USB connector type	USB Type-B, USB Type-C
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet interface type	Gigabit Ethernet
Component for	PC
Motherboard chipset	Intel® Z170
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 7 Enterprise, Windows 8, Windows 10 Education, Windows 7 Enterprise x64, Windows 8 Enterprise, Windows 10 Education x64, Windows 7 Home Basic, Windows 8 Enterprise x64, Windows 10 Enterprise, Windows 7 Home Basic x64, Windows 8 Pro, Windows 10 Enterprise x64, Windows 7 Home Premium, Windows 8 Pro x64, Windows 10 Home, Windows 7 Home Premium x64, Windows 8 x64, Windows 10 Home x64, Windows 7 Professional, Windows 8.1, Windows 10 Pro, Windows 7 Professional x64, Windows 8.1 Enterprise, Windows 10 Pro x64, Windows 7 Starter, Windows 8.1 Enterprise x64, Windows 7 Starter x64, Windows 8.1 Pro, Windows 7 Ultimate, Windows 8.1 Pro x64, Windows 7 Ultimate x64, Windows 8.1 x64
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	1024 MB
Parallel processing technology support	Quad-GPU CrossFireX
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	16 Mbit
Cables included	SATA
Bundled software	ASUS Utilities, ASUS EZ Update, Anti-virus software (OEM version)

Weight and Dimensions

Depth	224 mm
Width	305 mm
