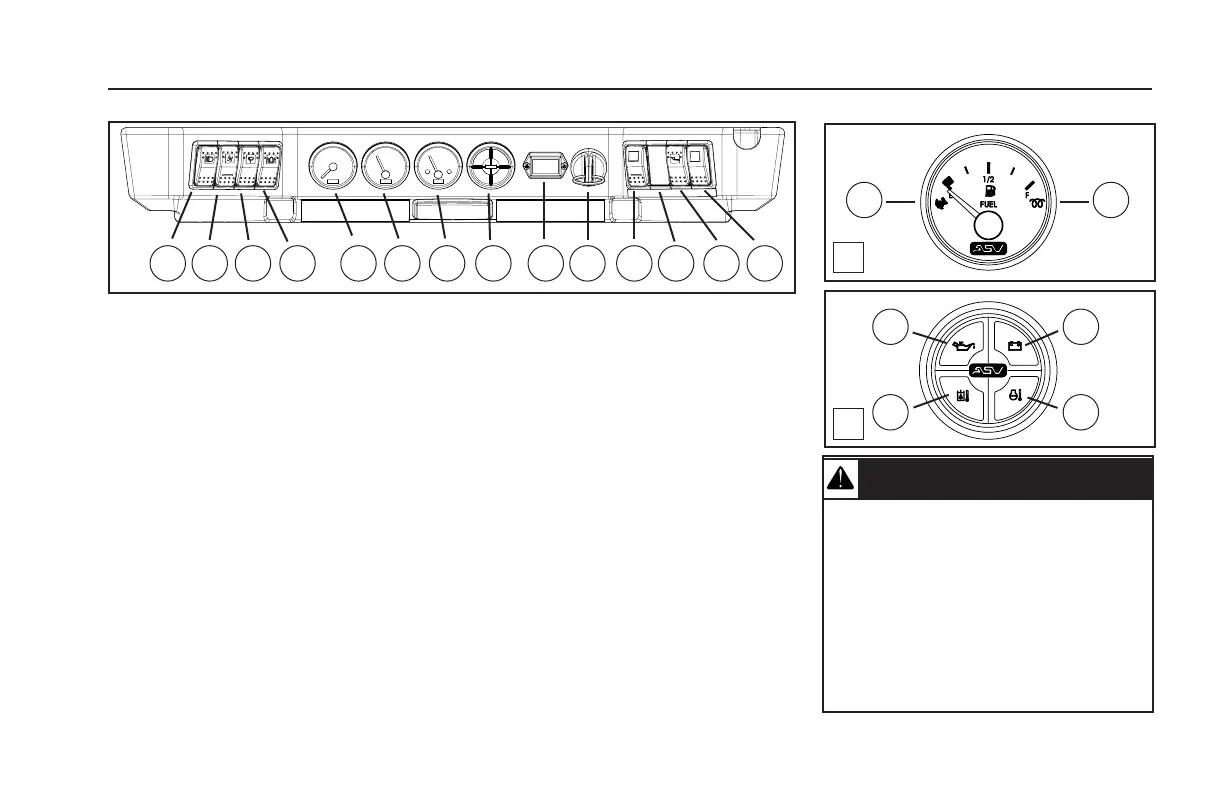

Dash Panel
There are many switches and instru-
ments involved in the operation of PT
machines. Learn the location and func-
tion of these items prior to operation.
Switch Panels
D - Lights, front and rear
E - Heater Fan (optional)
F - Front wiper (optional)
G - Beacon (optional)
M - Ignition, glow plug (pre-heat)
N - Continuous Flow Hydraulics
O - (not used)
P - Bucket Positioning (optional)
Q - Power Quick Attach (optional)
Instruments
H - Tachometer (optional PT-50)
I - Engine Temp. Gauge (optional PT-50)
J - Fuel Level Gauge
K - Warning Indicators (4-in-one)
L - Hour Meter
R - High Range Indicator Light (PT-60)
S - Glow Plug Operation Light
T - Oil Pressure Warning Light
U - Battery Voltage Warning Light
V - Hydraulic Oil Temp. Warning Light
W - Engine Temp. Warning Light
If the battery voltage warning light (U)
illuminates, drive the machine to a suit-
able location and shut the engine off.
Diagnose the problem and make needed
repairs before continuing to operate.
The glow plug operation light (S) will illu-
minate only when the key switch is
turned to engine pre-heat, showing nor-
mal operation.
9
SSWWIITTCCHHEESS//IINNSSTTRRUUMMEENNTTAATTIIOONN
Should the optional engine temp.
gauge read excessive temperatures
(or warning light illuminate) or should
the oil pressure or hydraulic oil temp.
lights illuminate during normal opera-
tion, shut the machine down immedi-
ately. Diagnose and make needed
repairs before resuming operation.
CAUTION
J
K
D
E F G H I J K L M
N
O
P Q
T
V
U
R S
W
