Atag WS1274M User Manual

EN 21
INSTALLATION



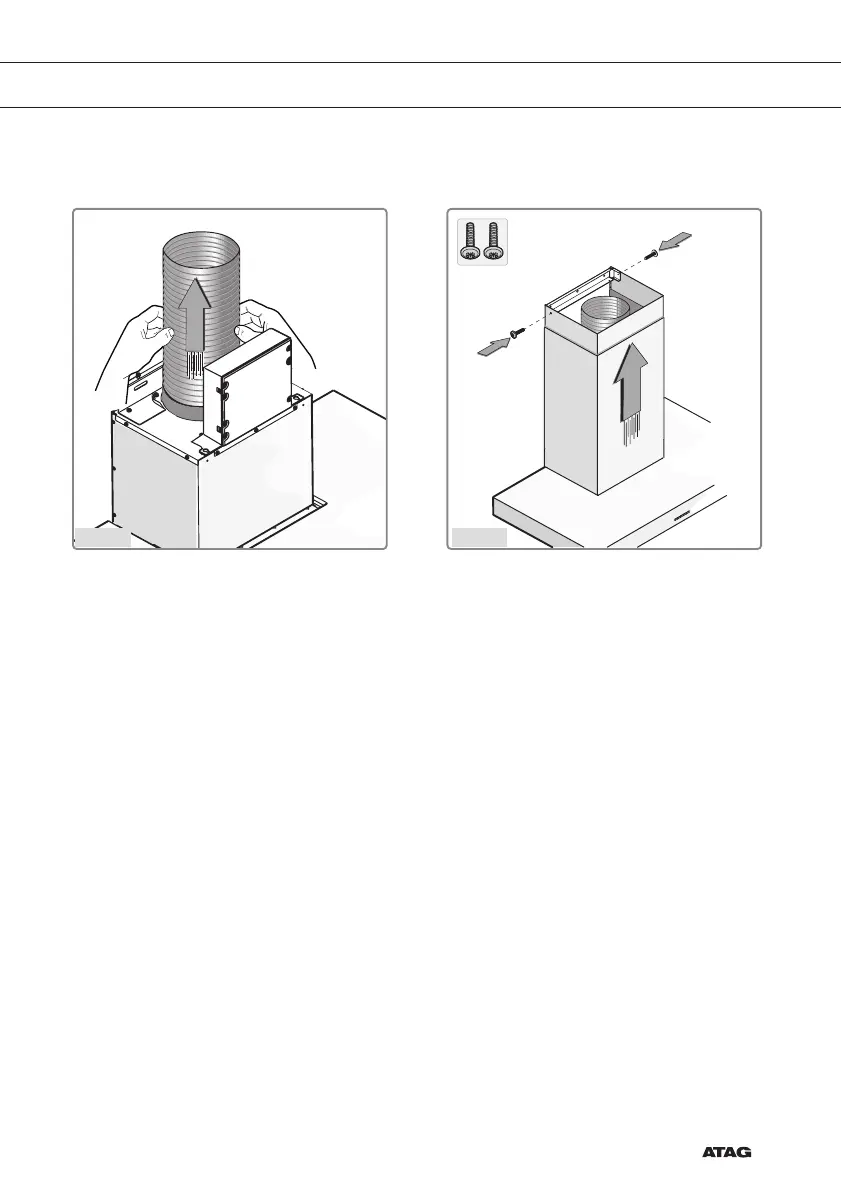

Fig.10 Fig.11
- Connect the flange to the air outlet using a
tube (Fig.10).
- Place the top shaft in the bottom shaft and
put this on the hood’s casing. Slide the top
shaft against the bracket and secure this
with the two screws (Fig.11).
- Put the power plug into the socket and test if the appliance operates correctly.

Atag WS1274M Specifications

General

Brand	Atag
Model	WS1274M
Category	Ventilation Hood
Language	English
