INSTALLATION
Fitting

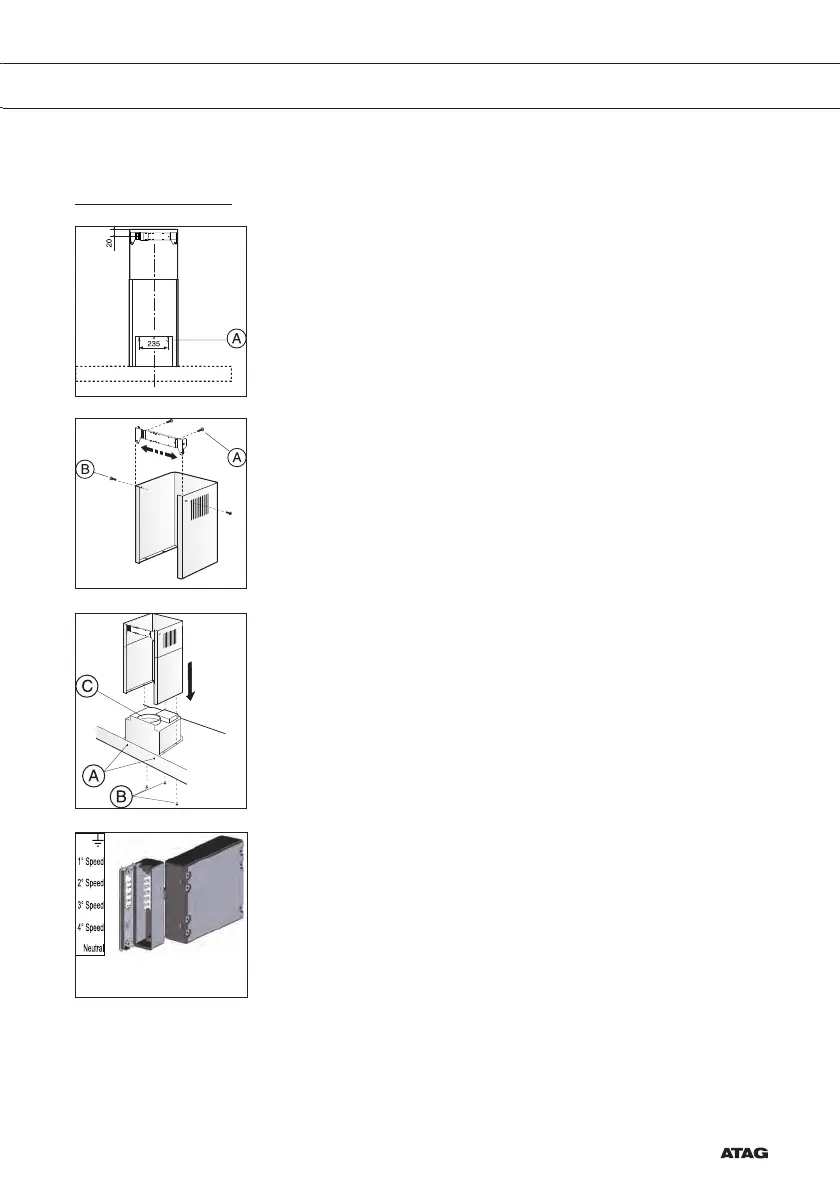

• Screw the extractor fan to the wall with the aid of the plugs and the
screws (A). Refer to the dimensions.
• First, adjust the width of the brackets to the width of the top pipe.
Then screw the bracket to the wall with the plugs and screws (B).
Be aware of the gap between the bracket and the ceiling (refer to
the dimensions).
• Place the exhaust pipe on the flange (C) and then on the connection
of the exhaust grill.
• Insert the plug into the dead wall socket.
• If there is an external motor, this must be connected to the
connector box depicted opposite.
• Connect the motor in accordance with the diagram in the
connection box.
• Place the top tube in the bottom tube.
• Screw the bottom tube onto the extractor fan with the screws B).
• Click the top tube into the bracket and screw this tight with the
screws (A).
