INSTALLATION
Montage

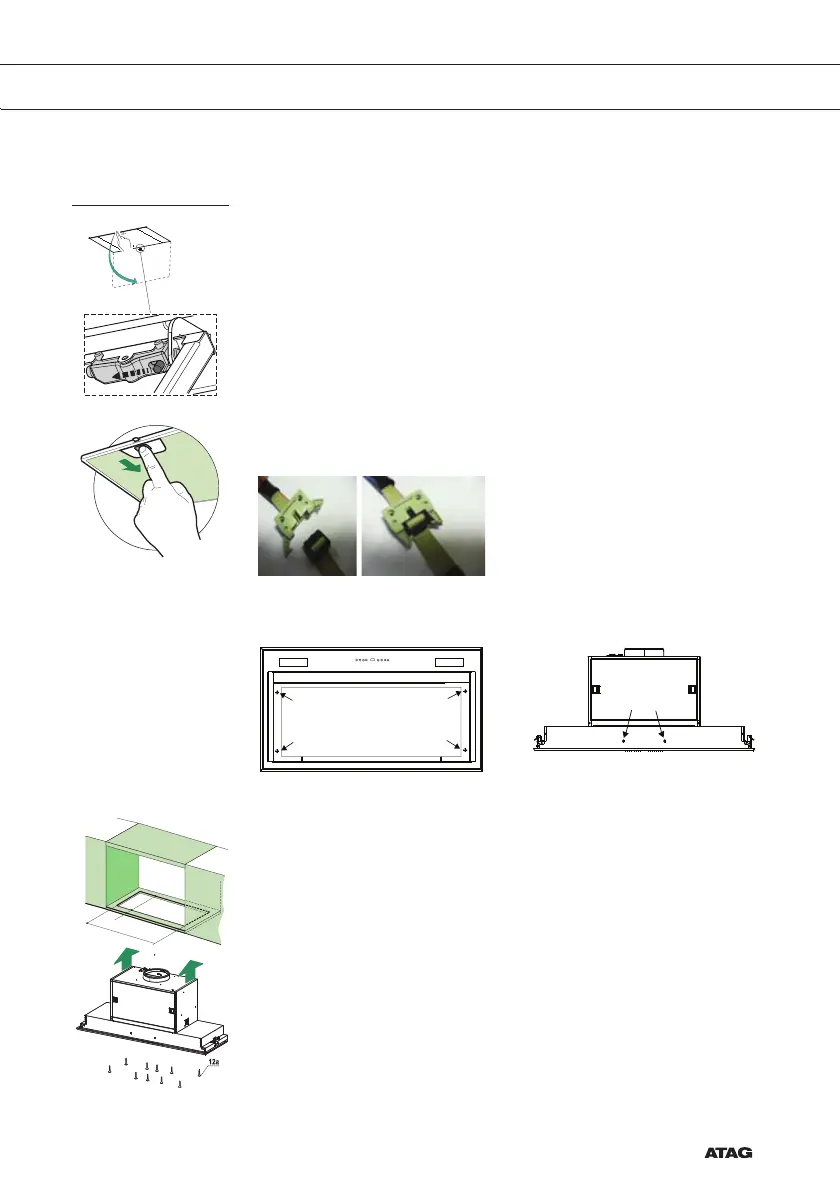

• Open the panel.
• Remove the grease filter.
• Interrupt the plug connection of the controls.
•
• First remove the 6 screws (2 on the left, 2 on the right, 2 on the
front), followed by the frame.
• Use a saw to create a recess in the bottom side of the cupboard
(at a distance of at least 650 mm from a gas hob). Refer to the
measurement drawing for this.
• Attach the unit with the 10 screws provided (12a).
• Put the frame into position.
• Restore the plug connection of the controls.
• Put the grease filter into position and close the panel.
