Atari SM124 Service Manual

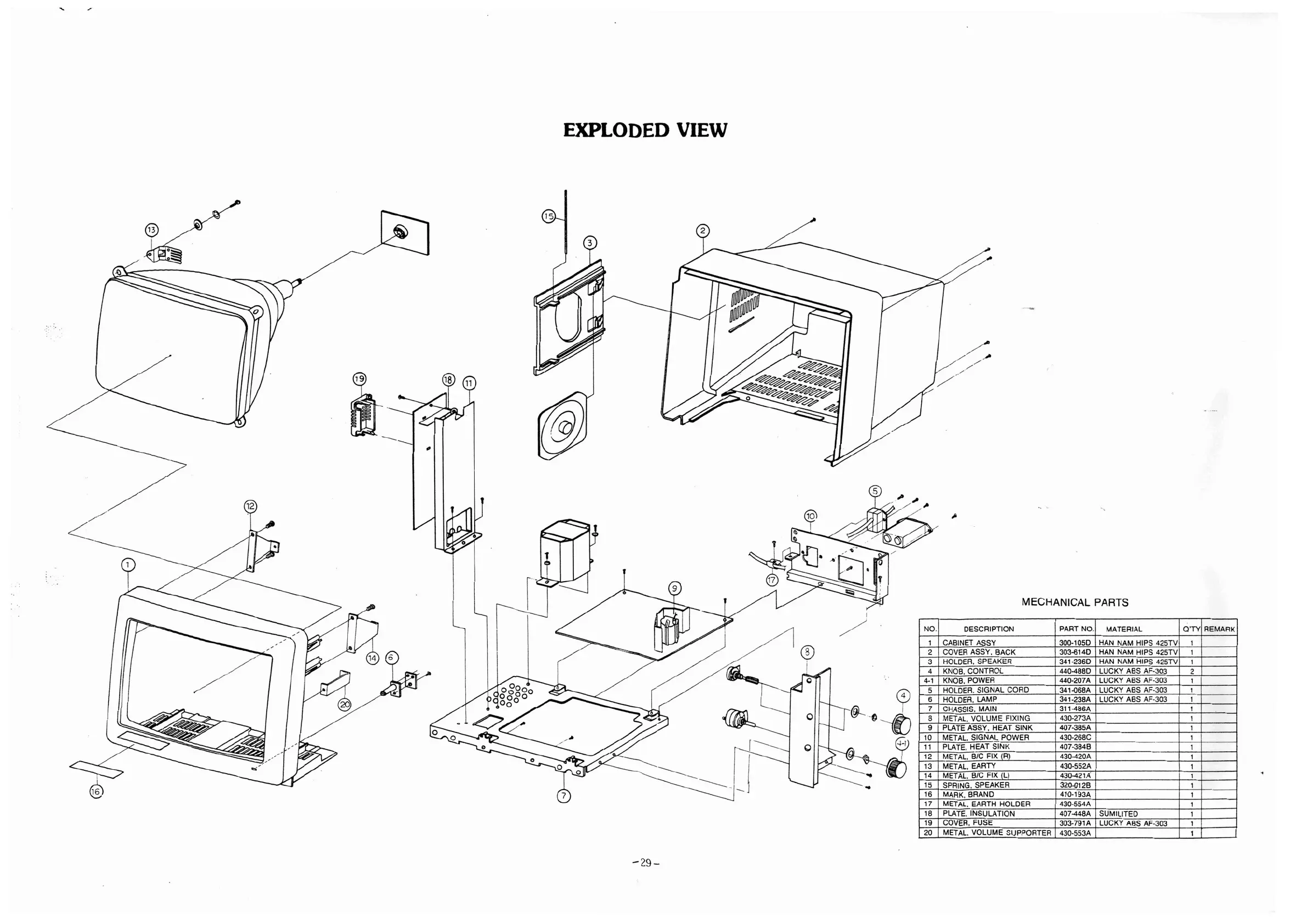

EXPLODED
VIEW
II
MECHANICAL
PARTS
NO.
DESCRIPTION PART
NO. MATERIAL Q'TY
REMARK
1 CABINET
ASSY
300-105D HAN NAM HIPS 425TV 1
2 COVER ASSY.
BACK
303-614D
HAN NAM
HIPS 425TV 1
3
HOLDER,
SPEAKER
341.2360
HAN NAM HIPS
425TV 1
4
KNOB.
CONTROL
440-4880
LUCKY ABS AF -303
2
4-1
KNOB,
POWER
440-207A LUCKY ABS
AF -303
1
5
HOLDER.
SIGNAL CORD 341-068A LUCKY ABS AF -303
1
6
HOLDER.
LAMP
341-238A LUCKY ABS AF -303 1
7 CHASSIS.
MAIN 311-486A
1
8
METAL,
VOLUME
FIXING
430-273A
1
9
PLATE
ASSY,
HEAT SINK
407-385A 1
10
METAL,
SIGNAL POWER
430-268C
1
11
PLATE,
HEAT SINK
407.384B 1
12
METAL,
B/C FIX (R) 430-420A
1
13
METAL,
EARTY
430-552A 1
14
METAL,
B/C FIX (L) 430-421A 1
15
SPRING,
SPEAKER
320-012B
1
16
MARK,
BRAND
410-193A
1
17 METAL. EARTH HOLDER
430.554A
1
18
PLATE, INSULATION
407-448A SUMILITED 1
19
COVER, FUSE
303-791A LUCKY ABS
AF
-303
1
20 METAL, VOLUME
SUPPORTER 430.553A
1
-29-
