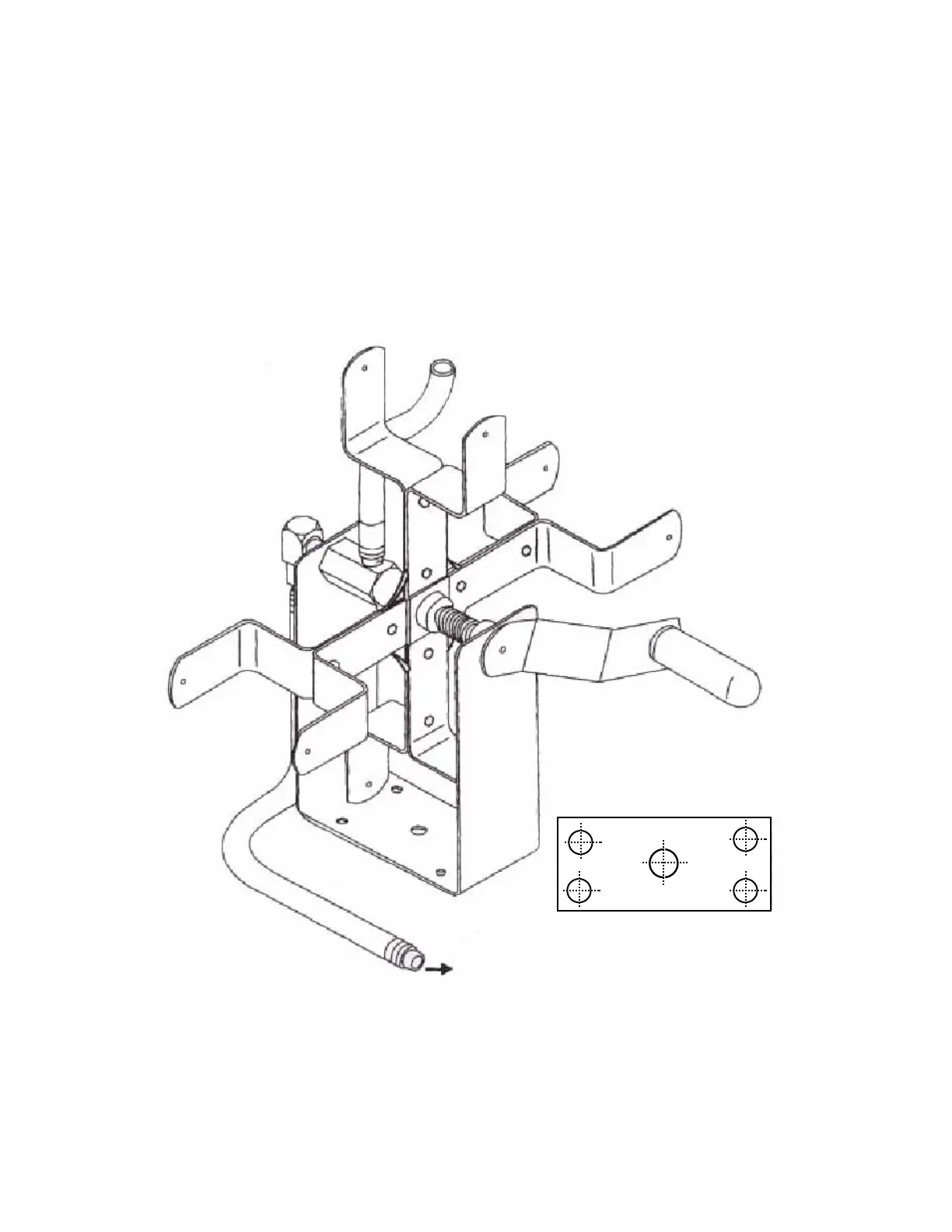

9: Install your air hose reel in a secure manner at the four attachment holes or the center
hole provided by the bottom of base (#1).
10: Attach one end of the air leader hose to ¼” NPT brass swivel elbow (#9), the other end to the
compressor.
11: Attach the air hose to air outlet of hexagon adapter (#6). Reel may be used right or left handed
depending upon the direction of the air hose wrap. Do not make a sharp bend in air hose; connect
your air tool with the other end of air hose.
Air Hose
Air Leader
Hose
To Compressor
3/8” Dia.
3/8” Dia. 3/8” Dia.
3/8” Dia.
9/16” Dia.
To Next Page
