PREPARATION
Before assembling your Folding Creeper, make sure all parts are present. Compare parts with package contents
list and illustrations. If any part is missing or damaged, do not attempt to assemble, install or operate the product.
Contact Technical Service (888) 332-6419 for replacement parts.
Packaging Contents: 1 Creeper Body with cushions, 6 Casters, 6 Caster Lock Nuts.

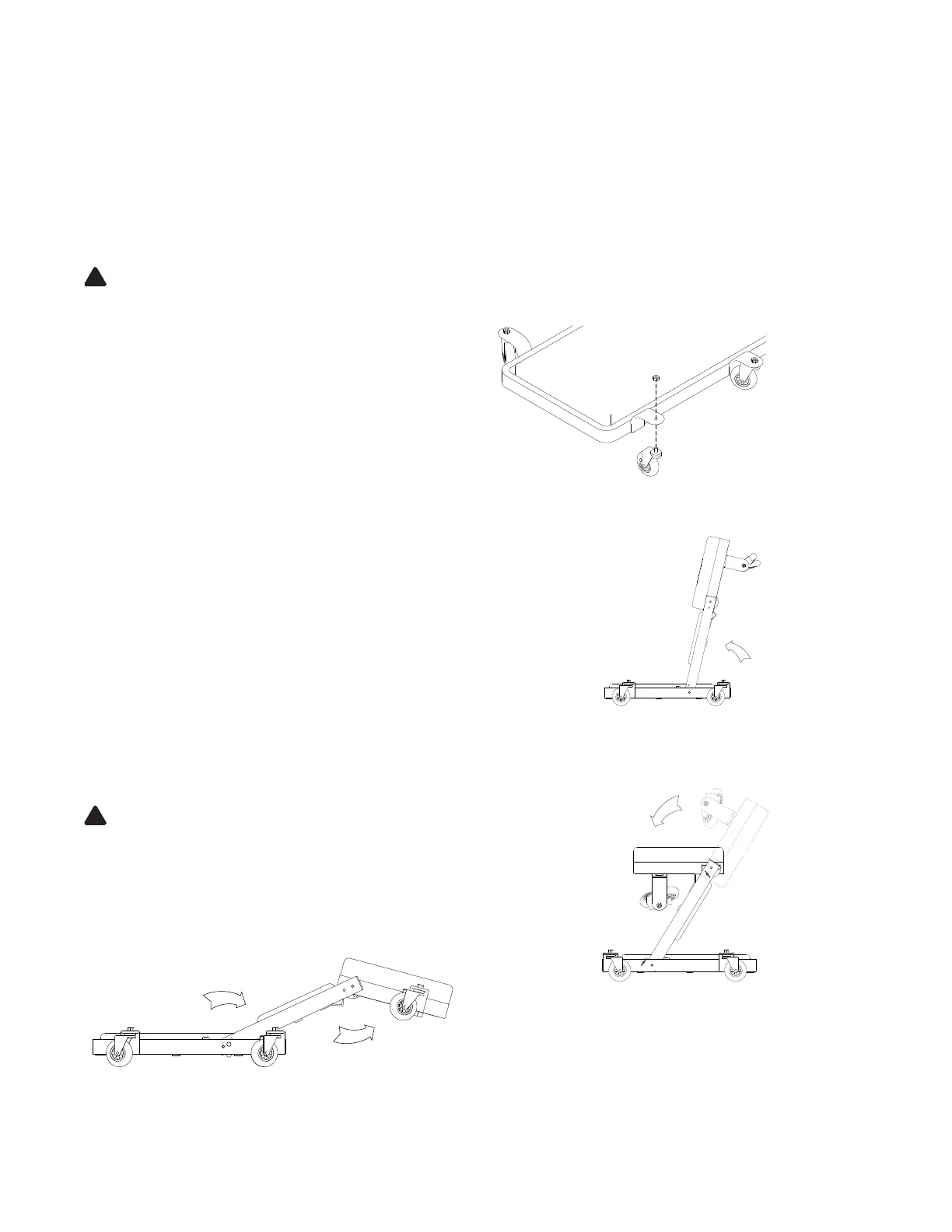

ASSEMBLY
&DUHIXOO\XQIROGWKHFUHHSHUXQWLOÀDW(QJDJHVSULQJORDGHG/RFNLQJ3LQV
CAUTION: Folding components can present pinch and crush hazards during normal use of this product.
Exercise caution when performing adjustments and while assembling and using this equipment.
3
)LJXUH+LJKVHDWFRQ¿JXUDWLRQ
)LJXUH&UHHSHUFRQ¿JXUDWLRQ
OPERATION
1. Locate and unlock spring loaded Locking Pin for
middle section by pulling out until disengaged.
Then rotate Head Frame and Middle Frame upward
as shown in Fig. 1 until the Locking Pin can engage
hole in Creeper Seat locking plate (ensure Lock Pin
is fully engaged). This is the low seat FRQ¿JXUD-
tion.
2. Disengage Lock Pin for Middle Frame and rotate fur-
ther forward. (QJDJH locking pin. Disengage Lock
Pin for Head Frame section and rotate backwards
as shown in Fig. 2. Adjust hinged caster brackets
as required. 7KLVLVWKHKLJKVHDWFRQ¿JXUDWLRQ
CAUTION: Ensure all Lock Pins are properly
engaged before using creeper.
3. Adjust hinged caster brackets so wheels will contact
ground properly. Unlock spring loaded Lock Pins,
then reverse steps 1 and 2, as shown in Fig. 3, to
convert Creeper Seat into Creeper.
!
2. Attach casters to creeper frame caster brackets
using 17mm nuts.
)LJXUH/RZVHDWFRQ¿JXUDWLRQ
!
