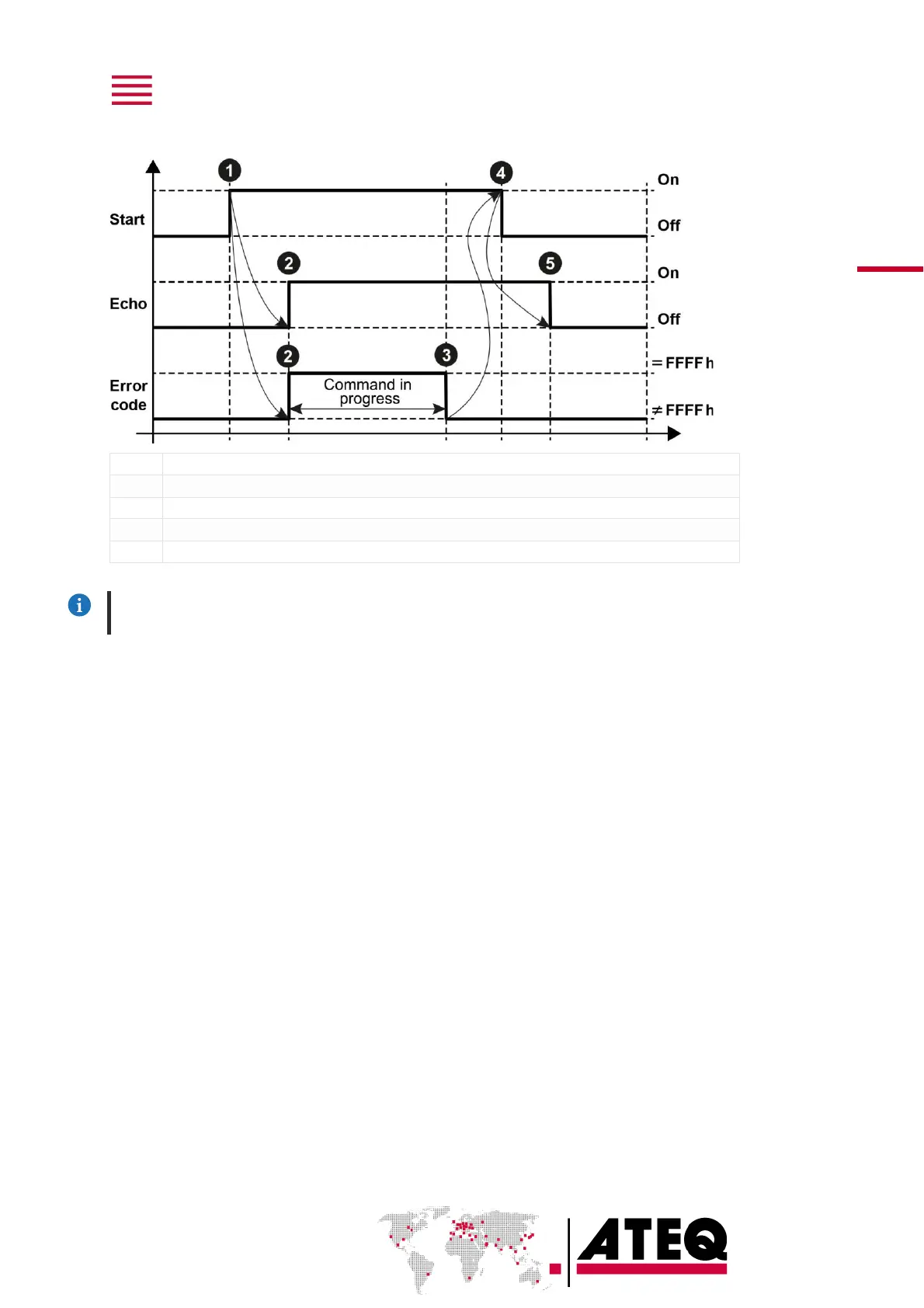

Start command diagram
1
Start command = On
2
Acknowledge by ATEQ = (Echo command = On) and (Error code command = FFFFh)
3
Wait end of Start command = (Echo command = On) and (Error code command ≠ FFFFh)
4
Start command = Off
5
Acknowledge by ATEQ = (Echo command = Off) and (Error code command ≠ FFFFh)
The Echo command is a copy of the Start command. The Start signal must be maintained (ON) till the
end of the Start command condition is reached.
