4
5

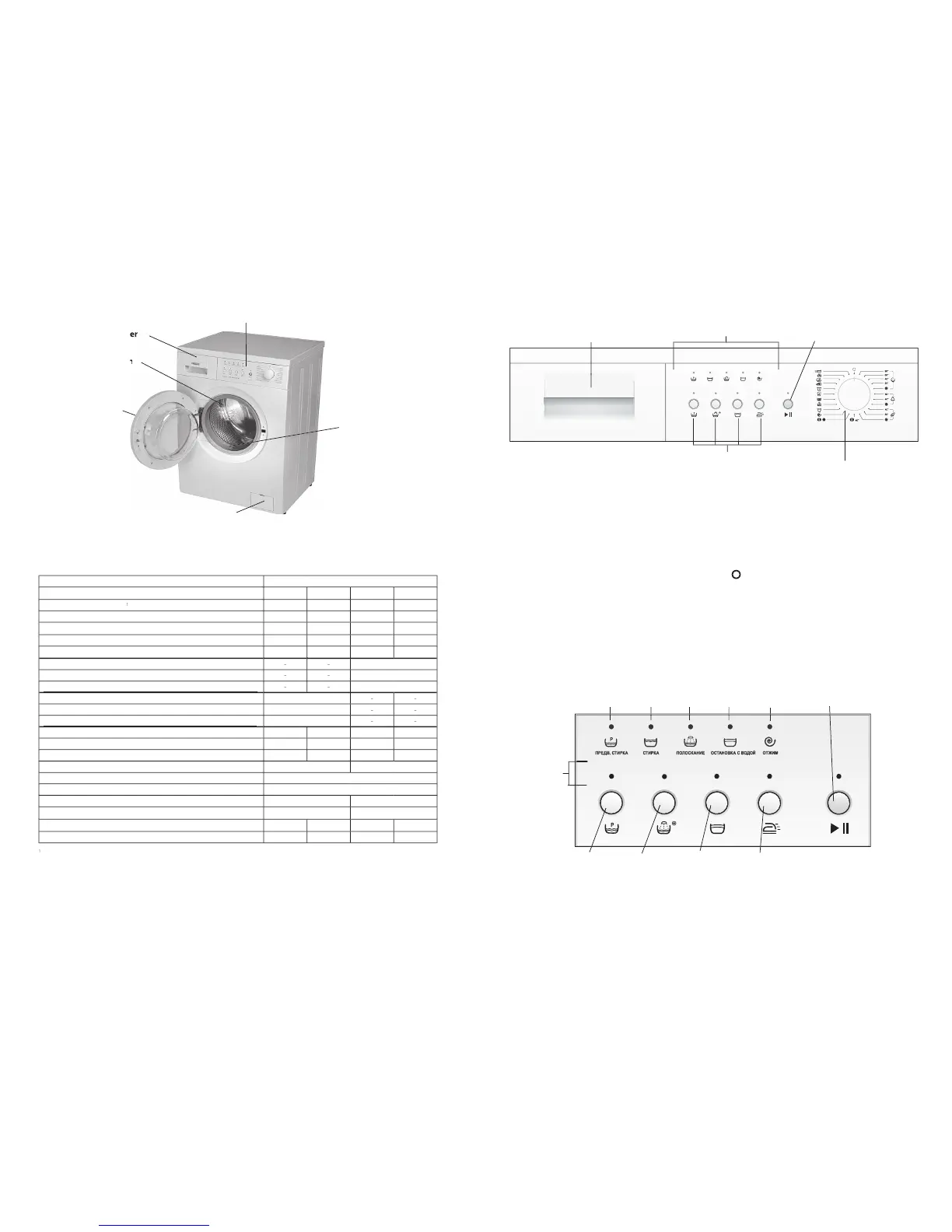

Figure 1
PROGRAM SELECTION
Washing program is selected by the Selector (Knob), which turns in both directions – clockwise and
contraclockwise. Around the Selector on the Control Panel the names of the programs are written. The basic
parameters of the programs are specified in Table 4. The Selector is set exactly to the respective mark of the
selected program.
After setting the Wash Program Selector to the mark
, the Machine is switched off and the selected
program is cancelled.
OPTIONAL FUNCTIONS OF THE MACHINE
To select an optional function, press the button of the needed function – the respective indicator will
go on. After repeated pressing, the light indicator goes out, the function is off.
ATTENTION! When the selected function is incompatible with the set program, the indicator will
not go on and the function will not be off (three audio signals will be heard).
Figure 2 – Control Panel
START/PAUSE button
Wash program selector
Dispenser drawer
Figure 3
PRE-WASH
ADDITIONAL RINSE
STOP WITH WATER
LIGHT PRESS
PRE-WASH
WASHING
RINSING
RINSE HOLD
SPINNING
START/PAUSE button
Wash program stage indicators
Buttons of a choice of additional functions;
Indica-
tors of
additional
functions
Filet cap
Door
Gasket
Control panel
Dispenser drawer
Dispenser drawer
Drum
Drum
Table 1
Product fiche for household washing machines according to Delegated Regulation (EU) 1061/2010.
Brand name
ATLANT
Model
50Y88
50Y108
60С88
60С108
Energy consumption class
1
А+
А+
А+
А+
Washing efficiency class
A
A
A
A
Wringing efficiency class
2
D
С
D
С
Annual energy consumption [kW·h/year]
3
165
165
190
190
Annual water consumption [l/annum]
3
8800
8800
9900
9900
Consumption per cycle 6 kg Cotton 60°C [kW·h/l], Programme time [min.]
-
-
1,05 kW·h/50 l , 147 min.
Consumption per cycle 3 kg Cotton 60°C [kW·h/l], Programme time [min.]
-
-
0,80 kW·h/40 l, 140 min.
Consumption per cycle 3 kg Cotton 40°C [kW·h/l], Programme time [min.]
Consumption per cycle 3 kg Cotton 40°C [kW·h/l], Programme time [min.]
-
-
0,65 kW·h/40 l, 87 min.
Consumption per cycle 5 kg Cotton 60°C [kW·h/l], Programme time [min.]
0,92 kW·h/43 l, 145 min.
-
-
Consumption per cycle 2,5 kg Cotton 60°C [kW·h/l], Programme time [min.]
0,70 kW·h/37 l, 135 min.
-
-
Consumption per cycle 2,5 kg Cotton 40°C [kW·h/l], Programme time [min.]
Consumption per cycle 2,5 kg Cotton 40°C [kW·h/l], Programme time [min.]
0,52 kW·h/37 l, 85 min.
-
-
Remaining moisture [%]
<72
<63
<72
<63
Power Left on/Power off [W]
1,0/0,5
1,0/0,5
2,0/1,0
2,0/1,0
Maximum rotational speed during the wringing [rpm]
800
100
800
1000
Maximum loading in the cotton washing mode [kg]
5,0
6,0
Water supply system pressure [MPa]
0,05 – 1,0
Voltage/Frequency [V/Hz]
230/50
Nominal power consumed [W]
1900
2100
Overall dimensions [H/W/D mm]
846х596х475
846х596х565
Net weight [kg]
62
62
63
63
Noise level: Washing / Wringing [dB(A)]
59/68
59/73
59/68
59/73
1
A + + + (highest efficiency) to D (least effective).
2
A (highest efficiency) to D (least effective).
3
On the basis of 220 standard washing cycles within a year when washing cotton at 60 °C and 40 °C at full or partial loading
