We strongly recommend two people, one on each side, hold the TV. Carefully postion
the TV over the wall bracket(A) until it locks in place. Tighten safety screws.
safety screws
3
4
Figure 1

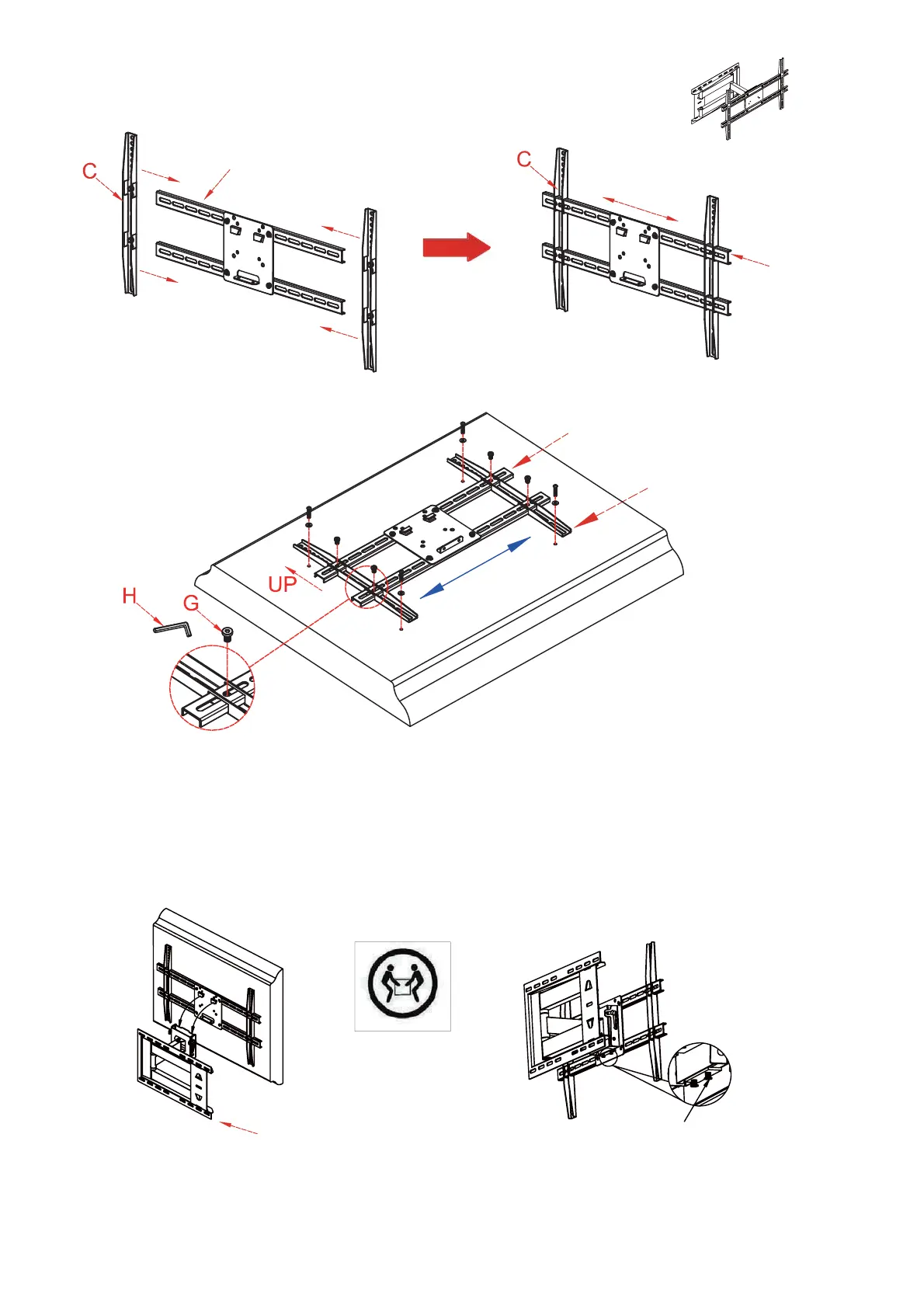

Slide TV mounts(C) along with TV horizontal bar(D). See Figure 1
6
Attach Figure 1 to the back of the TV, then fix the TV mount(C) and horizontal bar(D)
with screws(G) and allen wrench(H).
Selecting mounting hardware and then using instructions on page 7.
D
D
C
A
D
