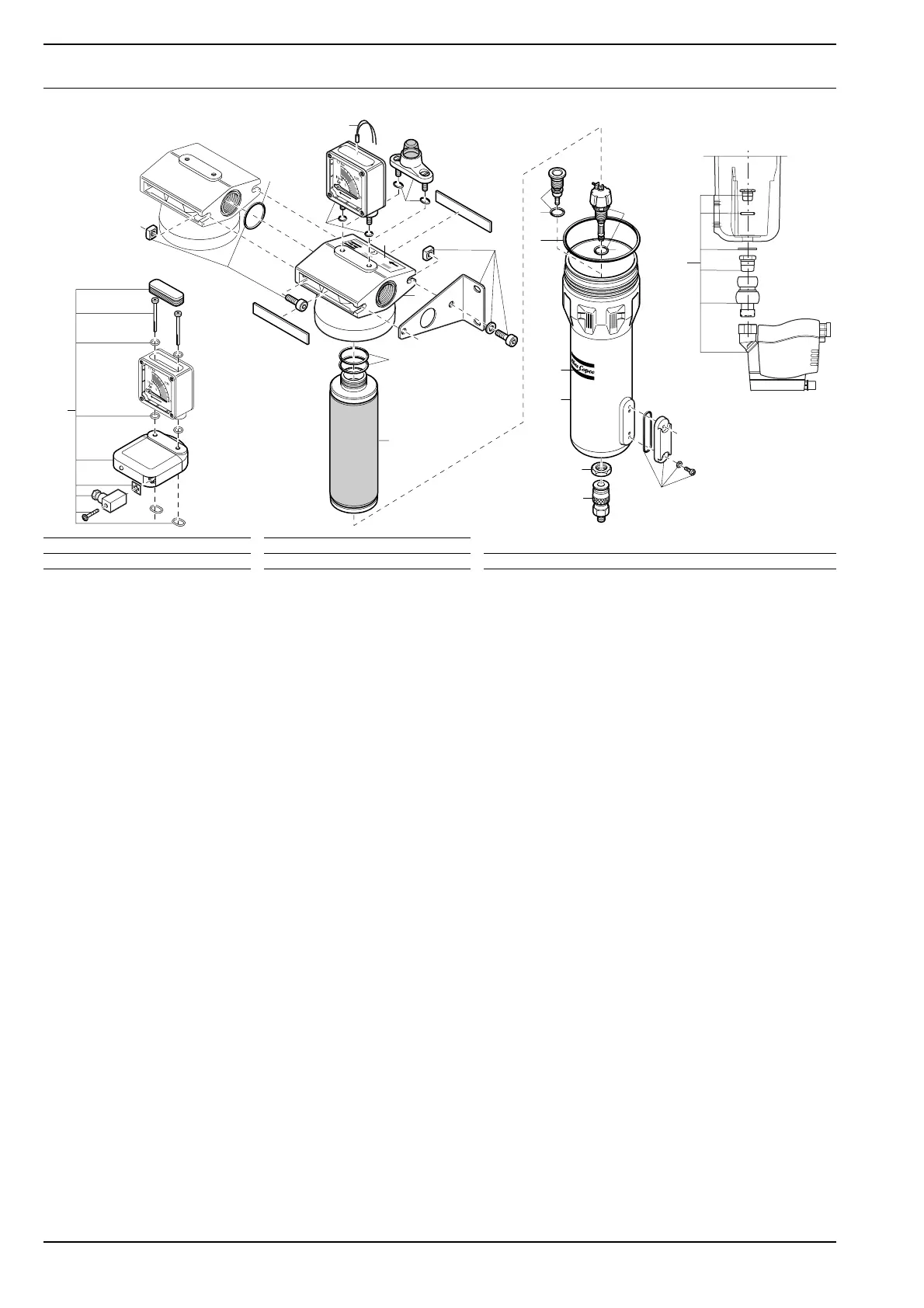

DD - DDP - PD - QD : 390 - 520
Notes
1. Included in the element kit.
2. Optional.
3. Not on the QD filters.
4. Only on DD and PD filters.
5. Only on DDp and QD filters.
6. 230V 50/60Hz not on DDp and QD filters
7. 115V 50/60Hz not on DDp and QD filters
8. 24V 50/60Hz not on DDp and QD filters
8
20
10
22
21
9
25
6
4
2
12
7
26
1
5
3
24
6
23
11
28
27
DD - DDp - PD - QD : 390 DD - DDp - PD - QD : 520
Ref. Part Number Note Qty Ref. Part Number Note Qty Designation
– 8102 2603 64 – 8102 2604 06 DD filter complete, G
– 8102 2608 02 – 8102 2608 44 DD filter complete, NPT
– 8102 2603 80 – 8102 2604 22 DDp filter complete, G
– 8102 2608 10 – 8102 2608 69 DDp filter complete, NPT
– 8102 2603 72 – 8102 2604 14 PD filter complete, G
– 8102 2608 36 – 8102 2608 51 PD filter complete, NPT
– 8102 2603 98 – 8102 2604 30 QD filter complete, G
– 8102 2608 28 – 8102 2608 77 QD filter complete, NPT
– 2906 7000 00 – 2906 7003 00 DD and DDp element kit
– 2906 7001 00 – 2906 7004 00 PD element kit
– 2906 7002 00 – 2906 7005 00 QD element kit
1– 11– 1Head
2– 12– 1Bowl
3–
1
13 –
1
1 Filter element
4 0663 2109 63
1
1 4 0663 2109 63
1
1 O-ring, 158,3x3,5
5 0663 2109 67
1
2 5 0663 2109 67
1
2 O-ring for filter, 72,7x2,6
6 0663 2111 29
1
1 6 0663 2111 29
1
1 O-ring, 18x3,5
7 1617 7046 00 1 7 1617 7046 00 1 Nut, G3/8”
8 – 8 – Differential press. indicator
9 1617 7269 00
2/3
1 9 1617 7269 00
2/3
1 Differential press. gauge
10 – 1 10 – 1 Identification label
11a 8055 2164 47
2
1 11a 8055 2164 47
2
1 Potential free contact, normally open
11b 8055 2164 88
2
1 11b 8055 2164 88
2
1 Potential free contact, normally closed
12 0690 1112 01 2 12 0690 1112 01 2 Atlas Copco decal
20 8092 2430 08
2
20 8092 2430 08
2
Wall mounting kit
21 8092 2430 57
2
21 8092 2430 57
2
Serial connection kit
22 • 0663 7143 00 1 22 • 0663 7143 00 1 O-ring, 80x3 - 94,5x3
23 2901 0562 00 23 2901 0562 00 Sight glass kit
24 2901 0563 00
4
24 2901 0563 00
4
Automatic drain valve kit
25 2901 0611 00
5
25 2901 0611 00
5
Manual drain valve kit
26 1617 7082 01
2
26 1617 7082 01
2
Male coupling, G 1/8”
26 1617 7082 02
2
26 1617 7082 02
2
Female coupling, G 1/8”
26 1617 7082 03
2
26 1617 7082 03
2
Hose connection
27 8055 2600 64
2/3
1 27 8055 2600 64
2/3
1 Dual pressure transmitter
28 8055 2600 31
2/6
1 28 8055 2600 31
2/6
1 EWD Connection
28 8055 2600 49
2/7
1 28 8055 2600 49
2/7
1 EWD Connection
28 8055 2600 56
2/8
1 28 8055 2600 56
2/8
1 EWD Connection
A080-070401-010
Vendor Manual Atlas Copco A090-070423-004 PD & DD Filters Instruction Manual
Q-Pulse Id VM260
Active 09/09/2013
Page 82 of 90
