Atlas Copco DD 280

2904 0108 04 85
NOTES - NOTAS - NOTES - ANMERKUNGEN - NOTAS - ANMÄRKNINGAR - NOTE - MERKNADER - BEMÆRKNINGER -
ΣΗΜΕΙΩΣΕΙΣ - OBSERVAÇÕES - HUOMAUTUKSIA
..........................................................................................................................................................................
..........................................................................................................................................................................
..........................................................................................................................................................................
..........................................................................................................................................................................
..........................................................................................................................................................................
..........................................................................................................................................................................
..........................................................................................................................................................................
..........................................................................................................................................................................
..........................................................................................................................................................................
..........................................................................................................................................................................
..........................................................................................................................................................................
..........................................................................................................................................................................
..........................................................................................................................................................................
..........................................................................................................................................................................
..........................................................................................................................................................................
..........................................................................................................................................................................
..........................................................................................................................................................................
..........................................................................................................................................................................
..........................................................................................................................................................................
..........................................................................................................................................................................
..........................................................................................................................................................................
..........................................................................................................................................................................
..........................................................................................................................................................................
..........................................................................................................................................................................
..........................................................................................................................................................................
.......................................................................................................................................................................................................................
..........................................................................................................................................................................
..........................................................................................................................................................................
..........................................................................................................................................................................
..........................................................................................................................................................................
..........................................................................................................................................................................
12. NOTES

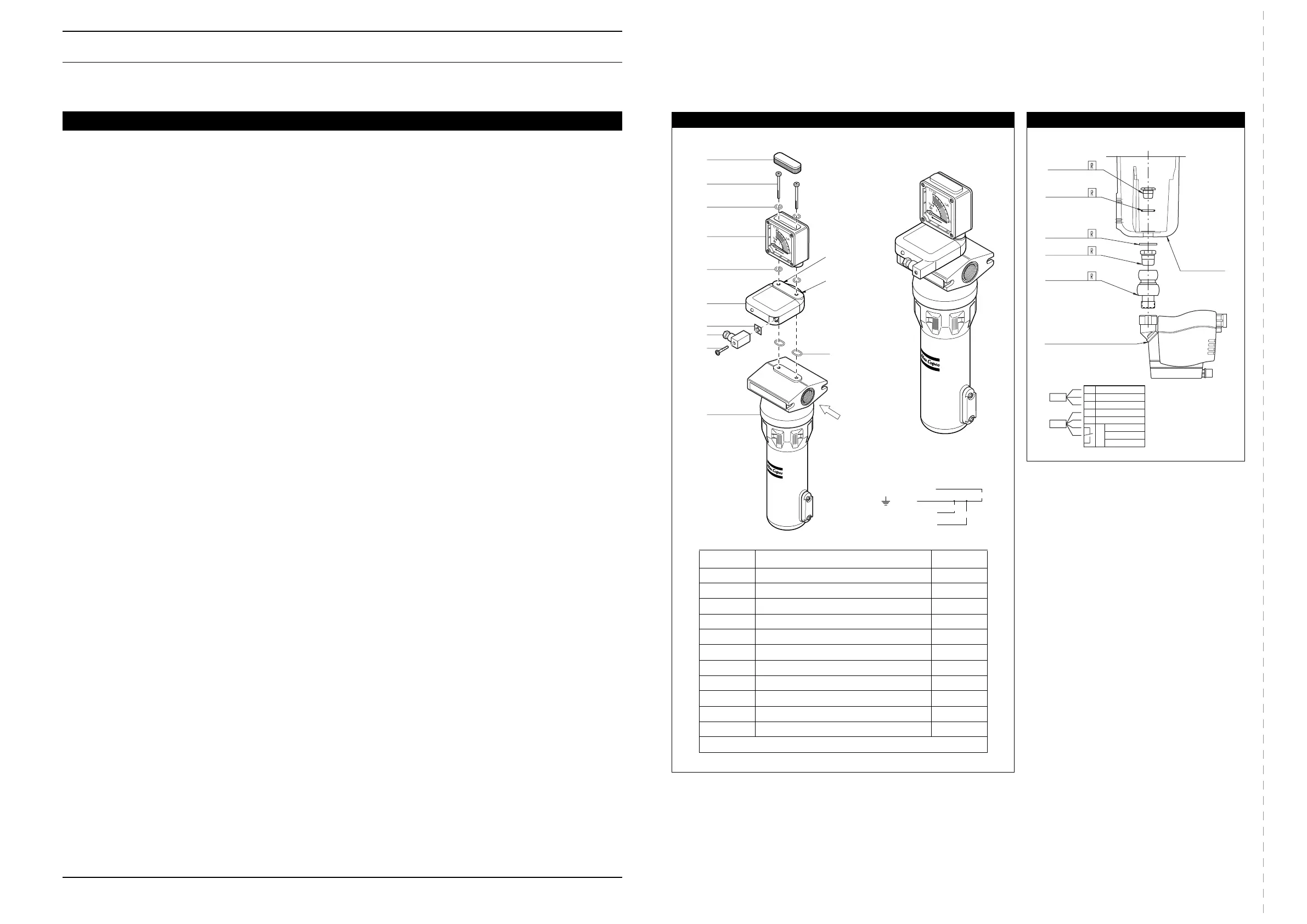

Fig. 4 Fig. 5
01
02
03
04
05
11
06
08
09
10
07
FILTER INLET
Upstream
Port
Downstream
Port
(-) COM
1 (+) 12-24 VDC
Power :
2 (+) dP 4-20 mA
3 (+) P 4-20 mA
Outlets :
OUT 2
OUT 3
IN
Item Description Qty
01 Top endcap 1
02* M6 Fixing screw 2
03 5mm x 1mm O-ring 2
04 Differential pressure gauge 1
05 8mm x 1.5mm O-ring 2
06 Dual pressure transmitter unit 1
07 18mm x 1.6mm O-ring 2
08 DIN Socket gasket 1
09 Dual pressure transmitter 12-24VDC input socket 1
10 DIN Plug screw 1
11 Filter housing 1
* Recommended tightening torque for M6 fixing screws: 2.5Nm (+0.5Nm)
TYPE ACCORDING TO VOLTAGE
Electrical installation EWD
phase
neutral
earth / ground
input 1
ground
normally closed
common
normally open
fail safe
1617 7115 00
Di = 11 mm
0663 9244 00
0661 1026 00
0605 8700 85
Di = 15 mm
1617 7123 00
Di = 14 mm
FILTER BOWL
L
PS
AS/ET
N
PE
IN 1
0V
A080-070401-010
