Instruction book Oil-free Air Division

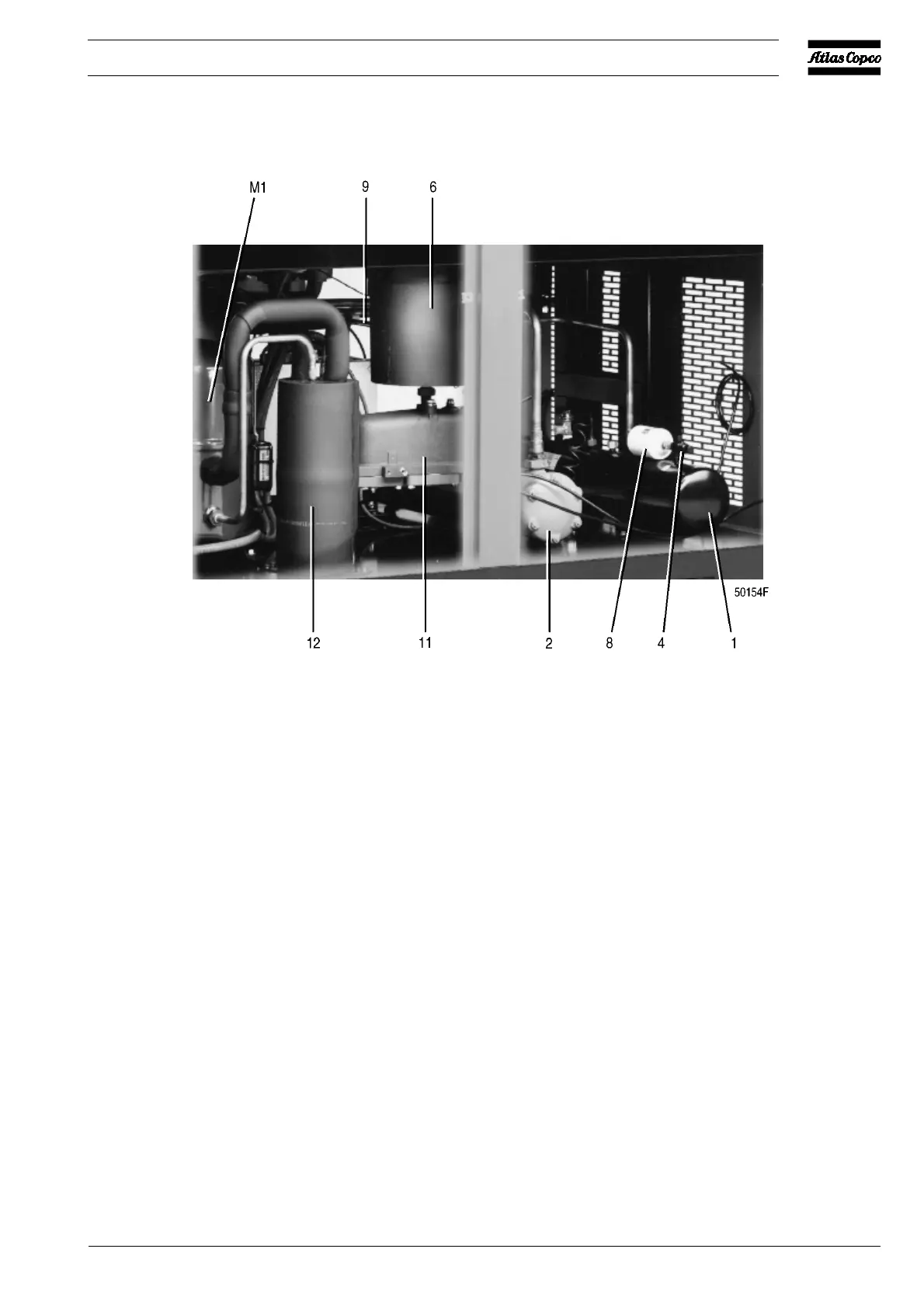

Fig. 5b. Side view of FD1600
M1. Refrigerant compressor/motor
1. Liquid refrigerant receiver
2. Condenser
3. Flow regulating valve
4. Refrigerant shut-off valve
5. Electric cubicle
Figs. 5. Side views of water-cooled FD units
6. Condensate trap with automatic discharge
7. Refrigerant shut-off valve
8. Refrigerant dryer
9. Refrigerant expansion valve
10. Sight-glass with moisture indicator
11. Float valve
12. Liquid separator
