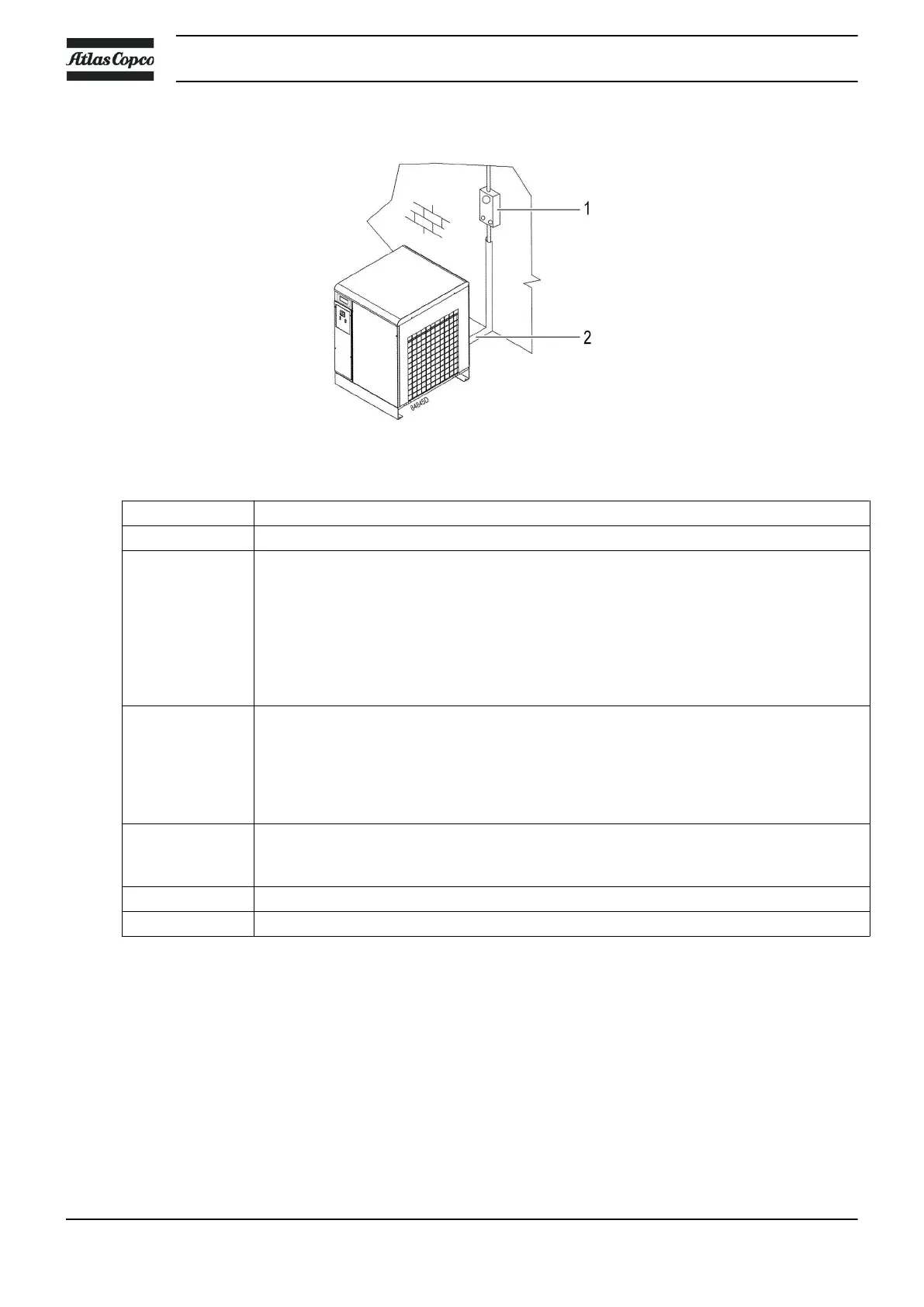

Example of compressor/dryer room
Installation proposal for FX 13 up to FX 16
Reference Description
- Install the refrigerant air dryer on a level floor, suitable for its weight.
- The recommended minimum distance between the top of the unit and the ceiling is 1.5
m (58.5 in).
The minimum distance between the wall and the back of the dryer must be 1.5 m (58.5
in).
Lay out the condensate drain hose via a funnel towards a drain collector to allow visual
inspection. The hose must slope downwards.
If the condensate drain has been fitted outside the dryer room where it may be exposed
to freezing temperatures, it must be insulated.
- The power cable must be connected by a qualified electrician.
Connect the dryer to the correct voltage; if necessary, check the unit data plate.
Check that the electrical installation corresponds to local codes. The dryer must be
earthed and protected against short circuits using an automatic cut-out device with a
differential device.
An isolating switch must be installed near the dryer.
- Connect the compressed air lines to the marked inlet and outlet pipes of the dryer (see
Dimension drawings). Provide an air inlet valve and outlet valve. If a bypass pipe and
valve are installed, the dryer can be serviced while it is bypassed.
1 Location of isolating switch and fuses.
2 Minimum distance 1.5 m (58.5 in).
Instruction book
14 2920 7112 50
