CALIBRATIONS
BYPASS VALVE FOR HOT GAS
N.B.These valves have already been calibrated and they do not require any adjistment. A dew point different from the
rated one generally depends on causes which are not attributable to their operation.

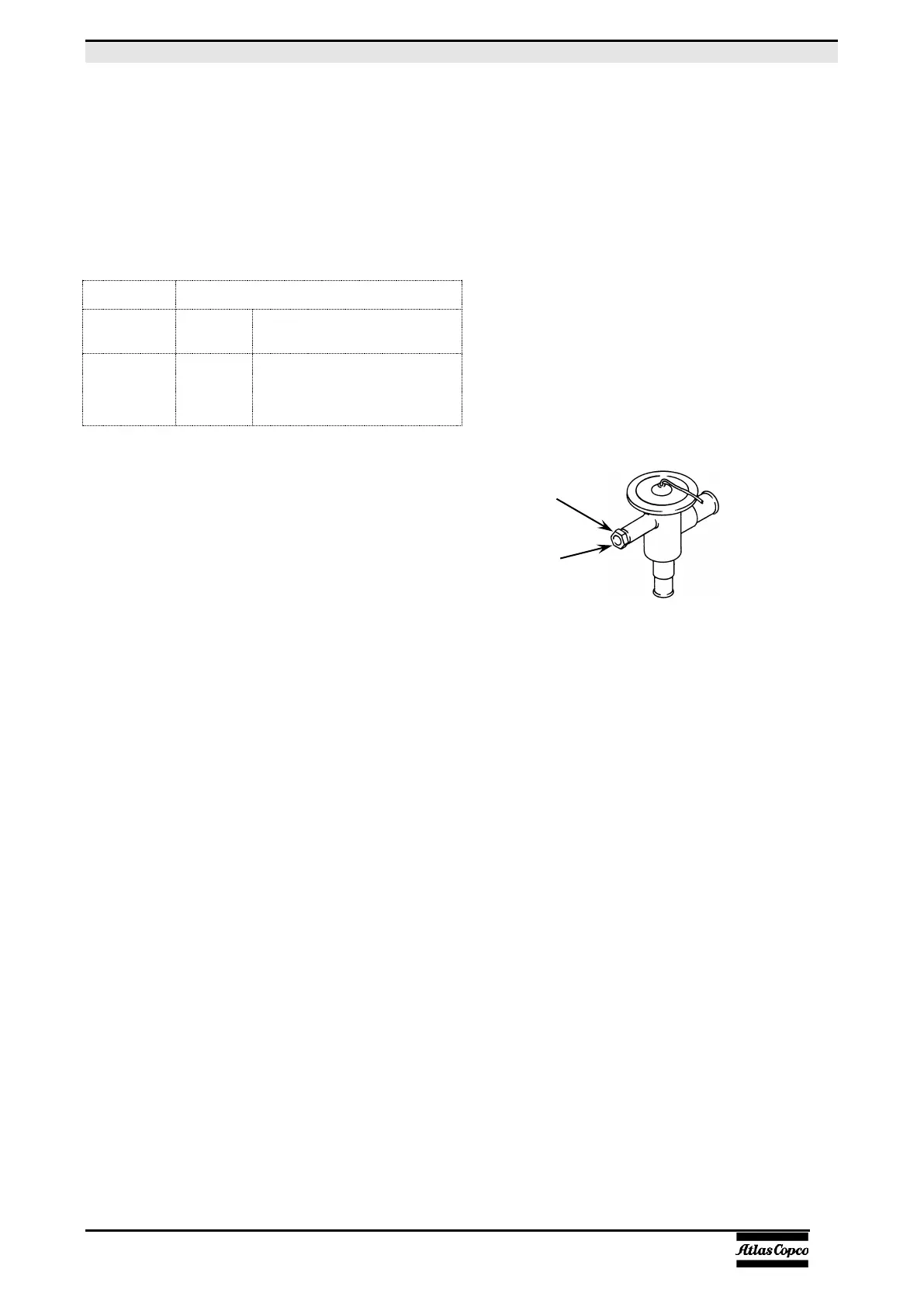

Ref. 1) Closing cap
Ref. 2) Adiusting screw
WORKING PRESSURES AND TEMPERATURES OF R410A
SUCTION SIDE OF
REFRIGERATION COMPRESSOR
Evaporat.
Temperat.
°C (°F)
Evaporating
Pressure bar (psi)
RATED VALUES
Temperat. 20 °C
(68°F)
1 ÷ 2
(33,8 ÷ 35,6)
R410A
7,28 ÷ 7,55
(106 ÷ 110)
2
1
