6.6 Belt replacement
Procedure
If more than one belt is used, the belts must be replaced as a set, even if only one of
them seems worn.
Use Atlas Copco belts only. The number of the belt set is mentioned in the Parts list.

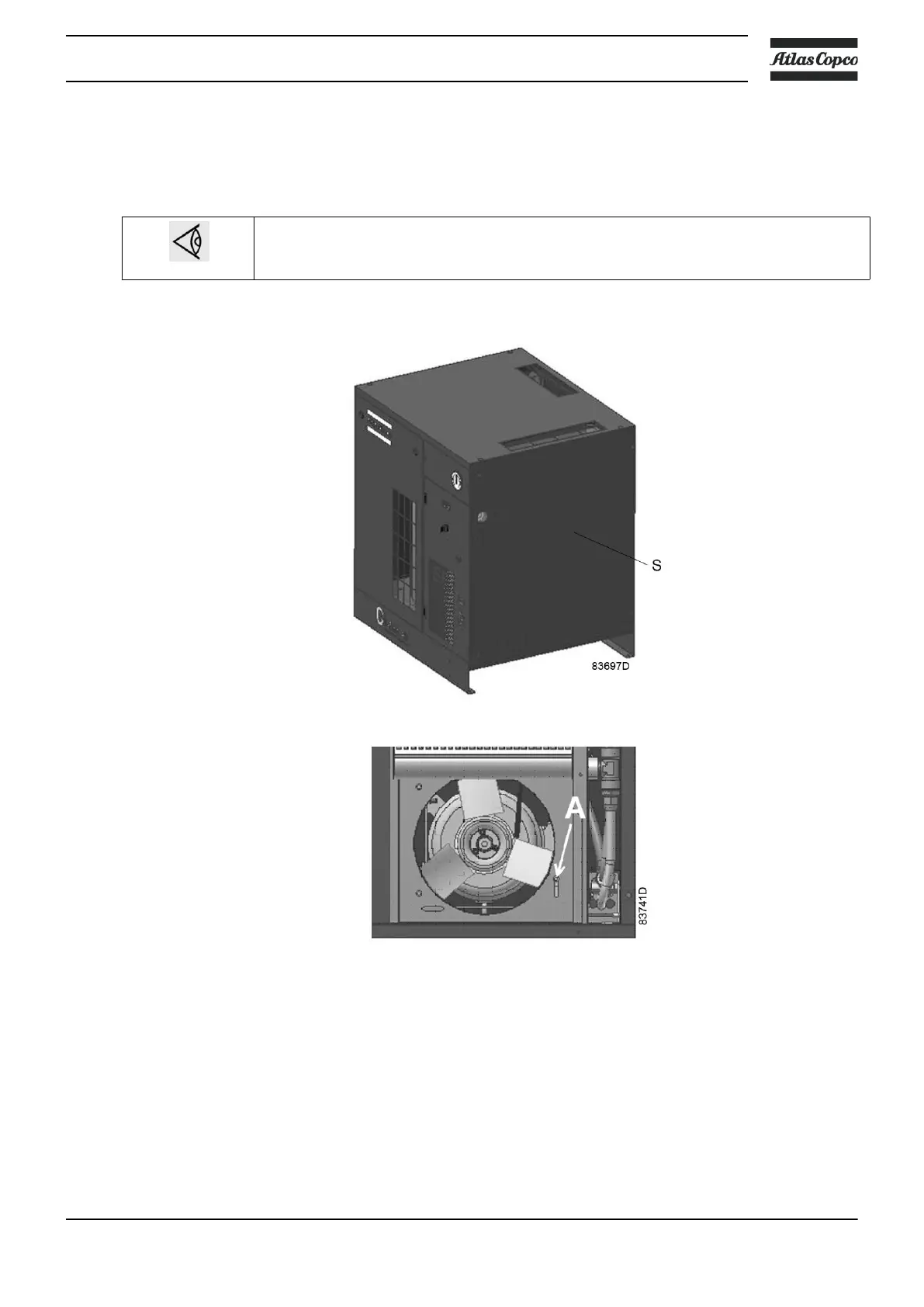

1. Remove the service panel (S).
2. Loosen screw (A).
3. Remove the front panel.
4. Remove the inlet baffle (I)
